Rugged and feature-rich

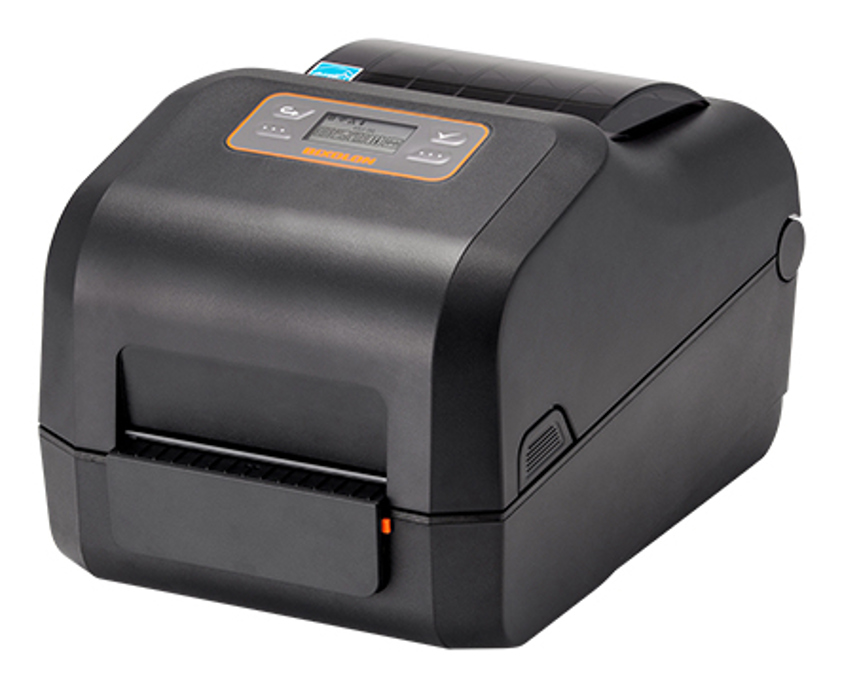

The XD5-40t is a 4-inch (118mm) mid-level Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Available as the XD5-40t (203dpi) and XD5-43t (300dpi) options, the XD5-40t’s standard model (XD5-40t) offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash.
Providing printer flexibility, the XD5-40t offers a toolless field-installable Peeler, Auto Cutter and external paper supply. With an Optional LCD display, an adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.
Boasting multiple connectivity options, the XD5-40t comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Bixolon XD5-40t label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Wi-Fi
SKU: XD5-40TK/BEG£211.15 ex VAT
£253.38 inc VAT
Out of stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Printing Print speed 152 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Print technology Direct thermal / Thermal transfer Number of printable dots 8 dot Display Display resolution 200 x 100 pixels Display LCD Network Wi-Fi Yes Ethernet LAN No Memory Internal memory 64 MB Flash memory 128 MB Paper handling Ribbon width 11 cm Ribbon length 300 m Media thickness 0.06 - 0.2 mm Maximum roll diameter 12.7 cm Maximum label width 11.8 cm Autocutter Yes Ports & interfaces Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) RS-232 ports 1 Connectivity technology Wired & Wireless Wi-Fi Yes Ethernet LAN No USB port Yes Performance Mobile operating systems supported Android, iOS Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 Ribbon width 11 cm Ribbon length 300 m Internal memory 64 MB Flash memory 128 MB Design Display resolution 200 x 100 pixels Display LCD Product colour Black Control type Buttons Built-in display Yes Power AC input voltage 100 - 240 V AC input frequency 50/60 Hz Technical details Windows operating systems supported Yes Mac operating systems supported Yes Product colour Black Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 Ribbon width 11 cm Ribbon length 300 m Maximum label width 11.8 cm Sustainability certificates ENERGY STAR System requirements Mobile operating systems supported Android, iOS Linux operating systems supported Yes Windows operating systems supported Yes Mac operating systems supported Yes Operational conditions Storage temperature (T-T) -40 - 60 °C Storage relative humidity (H-H) 10 - 90% Operating temperature (T-T) 5 - 40 °C Operating relative humidity (H-H) 25 - 80% Weight & dimensions Width 210 mm Depth 284 mm Height 188 mm Weight 2.48 kg Packaging content Cables included USB Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
