Mobile printer for mobile receipt / label issuance for logistics and delivery

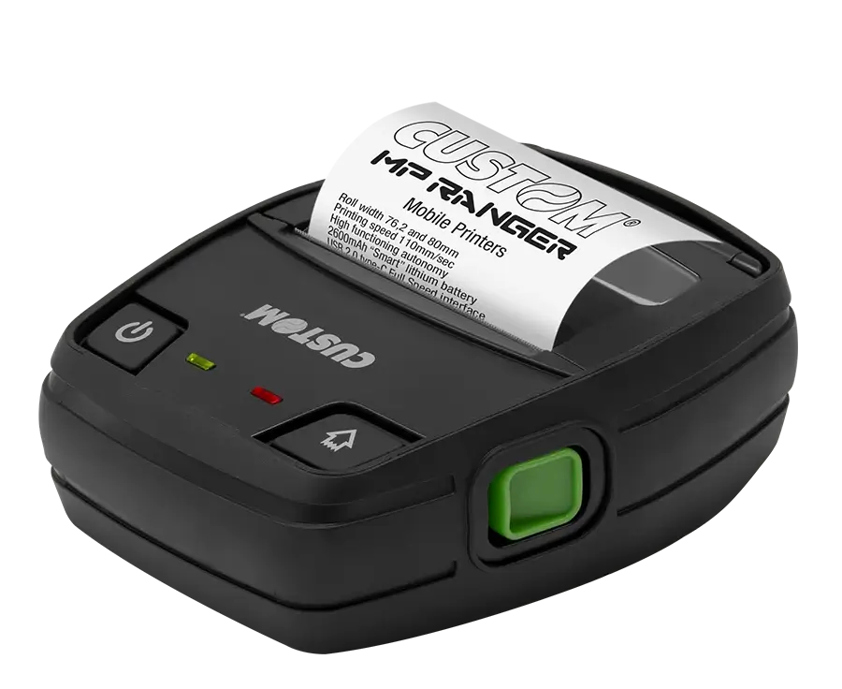

MP Ranger is a latest generation mobile printer and represents the evolution of Custom's range of mobile printers.
It can print on thermal paper in roll format, either on plain paper or peel-off format labels. Complete with sensors for displaying status and battery level, it allows the printing of 1D and 2D barcodes (QRCODE). It can handle rolls with paper width of 76.2 mm or 80 mm using the special reducer included in the package, and is designed to be used in outdoor working contexts, thanks to the IP54 protection to resist splashing of liquids and dust for use in adverse weather conditions and resistance to falls from 1 meter.
The operational equipment is completed by a clip for belt fastening and as an accessory the practical case with shoulder strap is available for greater protection. The printer is equipped with different charging options, from simple connection via USB Type-C to positioning on single charging cradles. MP Ranger can be connected to any mobile device, from simple phones, to specialized terminals, to handheld mobile computers and tablets with Bluetooth and Wi-Fi functionality thanks to the Wireless technology.
SOFTWARE
PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
MP Ranger printer is equipped with Android™ libraries for print management and monitoring, Android SDK containing sample sources for interfacing with the library. Windows® drivers compatible with win7 win8, win8.1, win10 (32/64 bit support) versions are available.
CUSTOM MP RANGER 203 x 203 DPI Wired & Wireless Thermal Mobile printer
SKU: 911MM010200P33£265.14 ex VAT
£318.17 inc VAT
Out of stockPrinting Character sets GB18030, PC437, PC850, PC858, PC860, PC865, PC866 Type Mobile printer Print technology Thermal Print speed 110 mm/sec Maximum resolution 203 x 203 DPI Performance Character sets GB18030, PC437, PC850, PC858, PC860, PC865, PC866 Security algorithms WHQL Type Mobile printer Print technology Thermal Print speed 110 mm/sec Maximum resolution 203 x 203 DPI Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, ITF-14, ITF-25, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E Paper handling Supported paper width 80 mm Printing media thickness 100 µm Maximum printing width 7.2 cm Roll core diameter (max) 4 cm Ports & interfaces Connectivity technology Wired & Wireless Bluetooth version 4.2 Bluetooth Yes USB port Yes USB connector USB Type-C Near Field Communication (NFC) Yes Bluetooth Low Energy (BLE) Yes Network Security algorithms WHQL Wi-Fi Yes Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n) Print technology Type Mobile printer Print technology Thermal Print speed 110 mm/sec Print quality Maximum resolution 203 x 203 DPI Maximum printing width 7.2 cm Technical details Character sets GB18030, PC437, PC850, PC858, PC860, PC865, PC866 Windows operating systems supported Yes Security algorithms WHQL Maximum printing width 7.2 cm Product colour Black Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, ITF-14, ITF-25, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E Features Character sets GB18030, PC437, PC850, PC858, PC860, PC865, PC866 Security algorithms WHQL Mean time between failures (MTBF) 3246 h Internal memory 0.64 MB Flash memory 8 MB Product colour Black Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, ITF-14, ITF-25, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E Storage media Flash Print head life 50 km Receive buffer 16 KB Design Product colour Black Memory Internal memory 0.64 MB Flash memory 8 MB Storage media Flash Endurance Mean time between failures (MTBF) 3246 h Power Power source type Battery, USB Battery voltage 7.2 V Battery technology Lithium-Ion (Li-Ion) Power consumption (printing) 18.72 W Operational conditions Operating temperature (T-T) -10 - 50 °C System requirements Windows operating systems supported Yes Weight & dimensions Width 149 mm Depth 122 mm Height 53 mm Weight 475 g Software Windows operating systems supported Yes Other features Print head life 50 km Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
