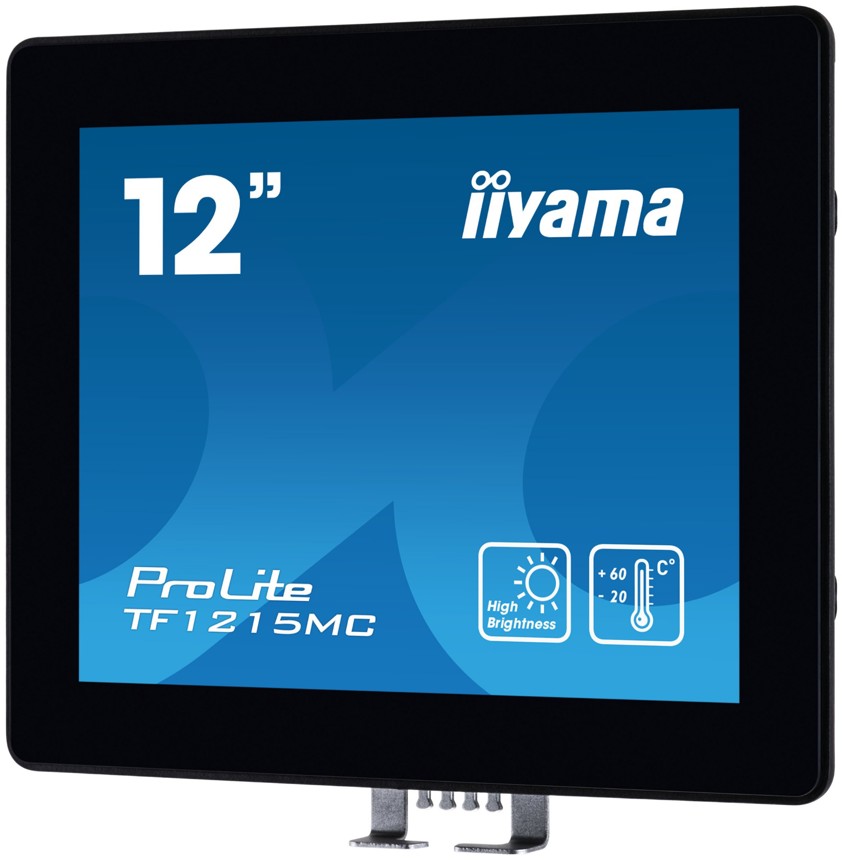

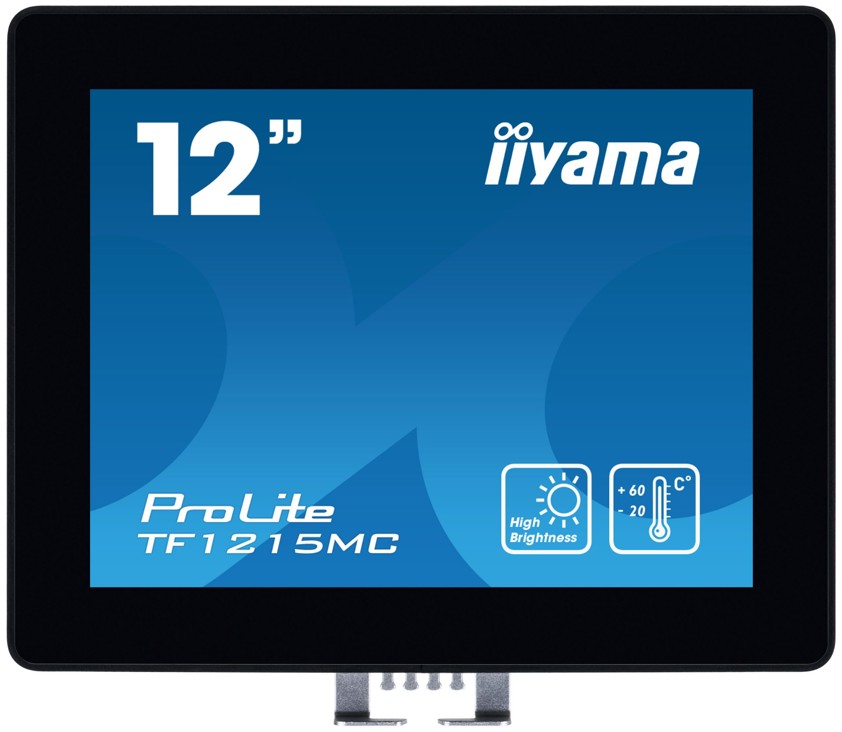

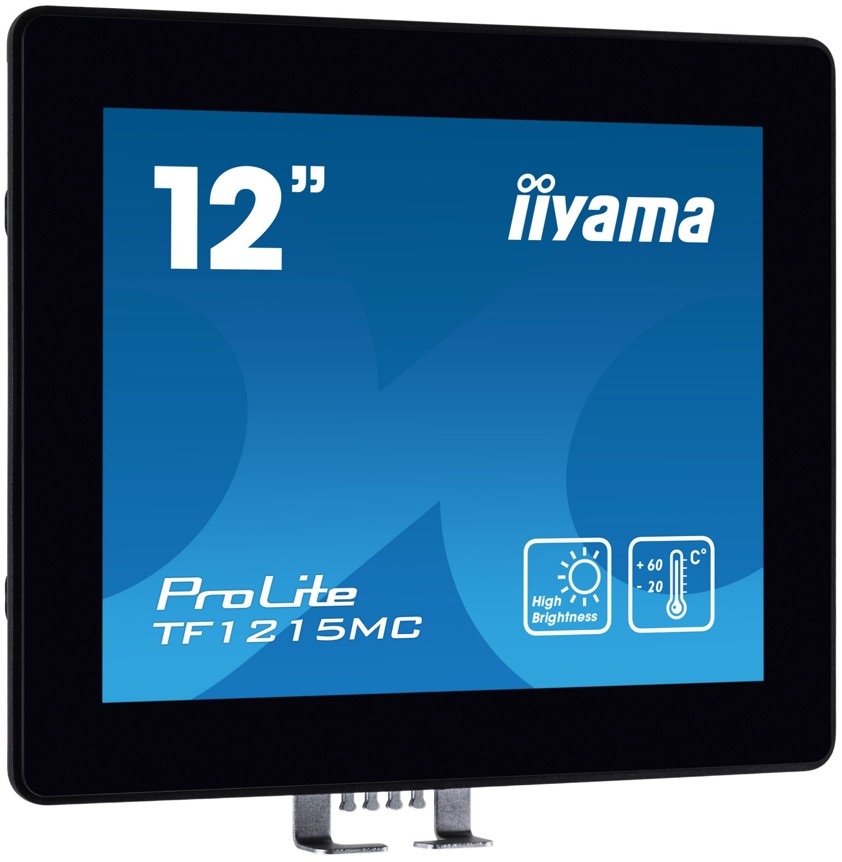

iiyama 12.1’’ PCAP 10pt touchscreen solution for pick-up points
SKU: TF1215MC-B1£366.40 ex VAT
£439.68 inc VAT

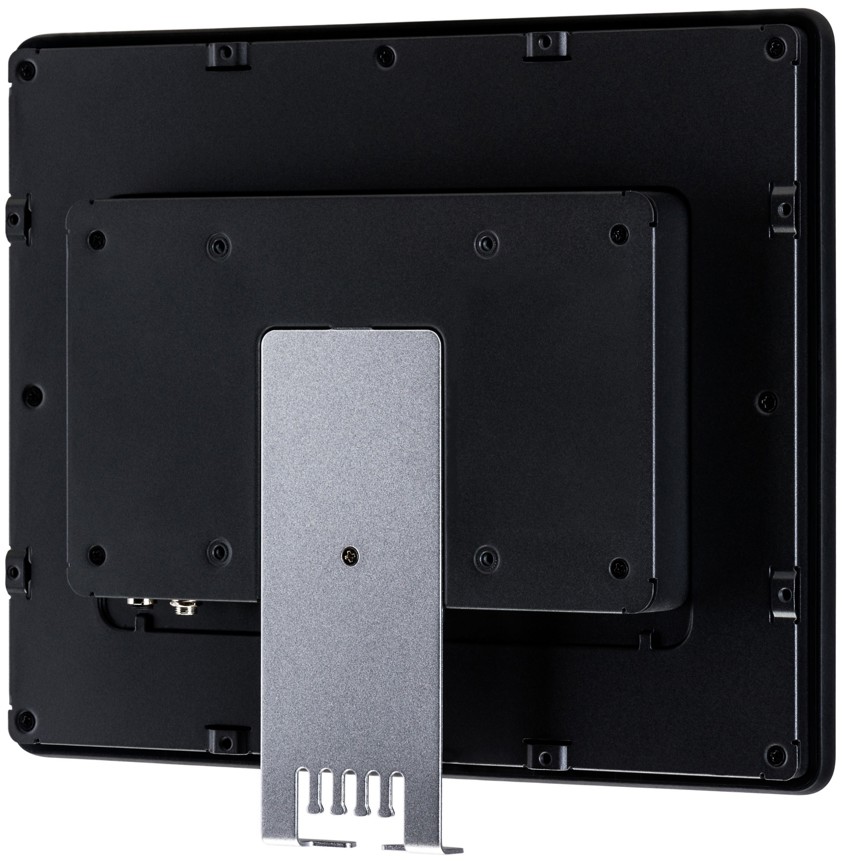

In stock- Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display HDCP Yes Display brightness (typical) 540 cd/m² Screen shape Flat Display number of colours 16.2 million colours Native aspect ratio 4:3 Display technology LCD Viewing angle, horizontal 178° Viewing angle, vertical 178° Pixel pitch 0.24 x 0.24 mm Horizontal scan range 31.4 - 60 kHz Vertical scan range 56 - 75 Hz Viewable size, horizontal 24.6 cm Viewable size, vertical 18.4 cm Display resolution 1024 x 768 pixels Response time 25 ms Display diagonal 30.7 cm (12.1") Contrast ratio (typical) 1000:1 Surface hardness 7H Touchscreen Yes Number of simultaneous touchpoints 10 Panel type IPS Display diagonal (metric) 31 cm Touch technology Multi-touch Touchscreen technology Projected capacitive system Display brightness 540 cd/m² Performance Built-in camera No AMD FreeSync No NVIDIA G-SYNC No Windows operating systems supported Yes Linux operating systems supported Yes Management features On Screen Display (OSD) Yes Number of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Plug and Play Yes Multimedia Built-in camera No Design Certification CE, EAC, RoHS, ErP, WEEE, cULus, REACH Product colour Black Front bezel colour Black International Protection (IP) code IP65 Glass thickness 3.15 mm Camera Built-in camera No Ports & interfaces VGA (D-Sub) ports quantity 1 HDMI ports quantity 1 DisplayPorts quantity 1 HDCP Yes Audio output 1 HDMI Yes USB Touch port Yes Technical details Height (without stand) 248 mm Depth (without stand) 41.5 mm Width (without stand) 308.5 mm HDMI Yes Display viewable area (HxV) 245.8 x 184.3 mm Product colour Black Front bezel colour Black Sustainability compliance Yes Sustainability certificates ErP Compliance certificates CE, RoHS Power supply type External Weight (with stand) 2.1 kg Surface hardness 7H Touchscreen Yes Number of simultaneous touchpoints 10 Software Windows operating systems supported Yes Linux operating systems supported Yes Ergonomics Wall mountable Yes VESA mounting Yes Panel mounting interface 100 x 100 mm LED indicators Yes On Screen Display (OSD) Yes Number of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Plug and Play Yes Power Power supply type External Power consumption (standby) 0.55 W Power consumption (typical) 10 W Power consumption (off) 0.5 W Energy efficiency scale A to G AC adapter output voltage 12 V Energy efficiency class (SDR) F Energy consumption (SDR) per 1000 hours 11 kWh Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensions Height (without stand) 248 mm Depth (without stand) 41.5 mm Width (without stand) 308.5 mm Width (with stand) 308.5 mm Depth (with stand) 41.5 mm Height (with stand) 248 mm Weight (with stand) 2.1 kg Weight (without stand) 2.1 kg Package width 435 mm Package depth 435 mm Package height 355 mm Package weight 3.9 kg Packaging data Package width 435 mm Package depth 435 mm Package height 355 mm Package weight 3.9 kg Quick start guide Yes Cables included AC, DisplayPort, HDMI, USB Packaging content Quick start guide Yes Cables included AC, DisplayPort, HDMI, USB Indication LED indicators Yes Sustainability Sustainability compliance Yes Sustainability certificates ErP Other features Display viewable area (HxV) 245.8 x 184.3 mm Certification CE, EAC, RoHS, ErP, WEEE, cULus, REACH International Protection (IP) code IP65 Compliance certificates CE, RoHS Height (without stand) 248 mm Depth (without stand) 41.5 mm Width (without stand) 308.5 mm Quick start guide Yes HDMI Yes Surface hardness 7H Energy efficiency scale A to G Power supply type External Touchscreen Yes Number of simultaneous touchpoints 10 Front bezel colour Black Certificates Certification CE, EAC, RoHS, ErP, WEEE, cULus, REACH Logistics data Harmonized System (HS) code 85285210 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
