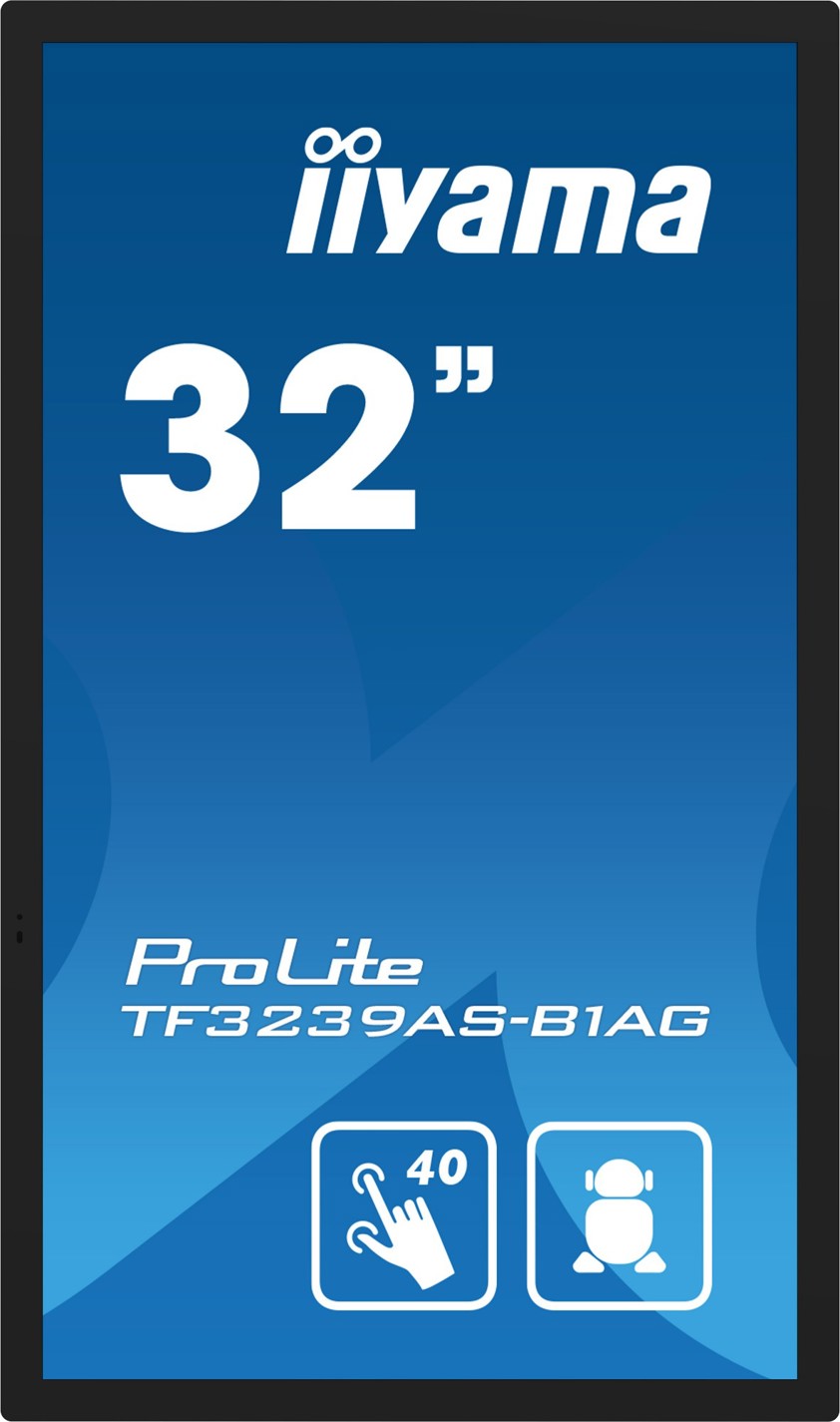

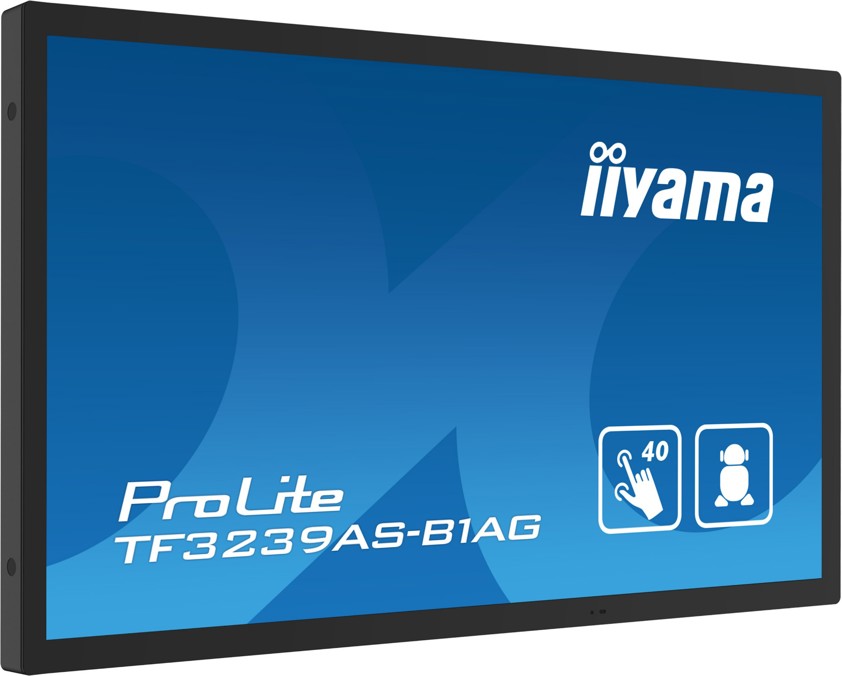

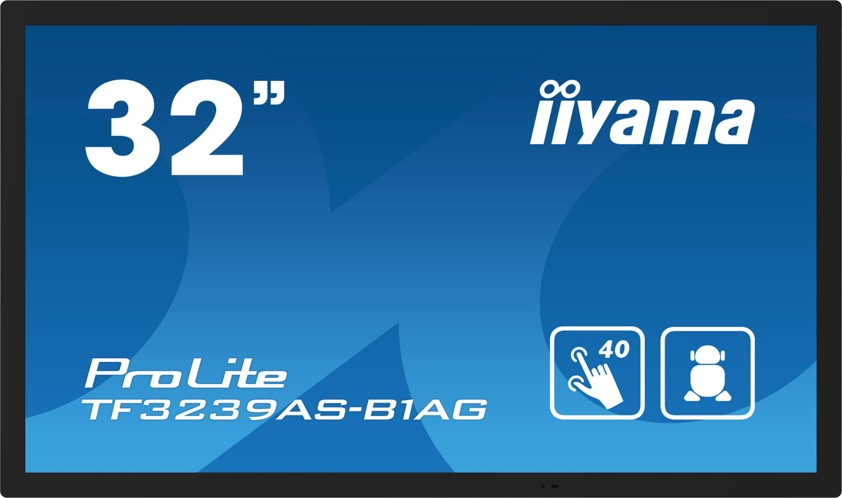

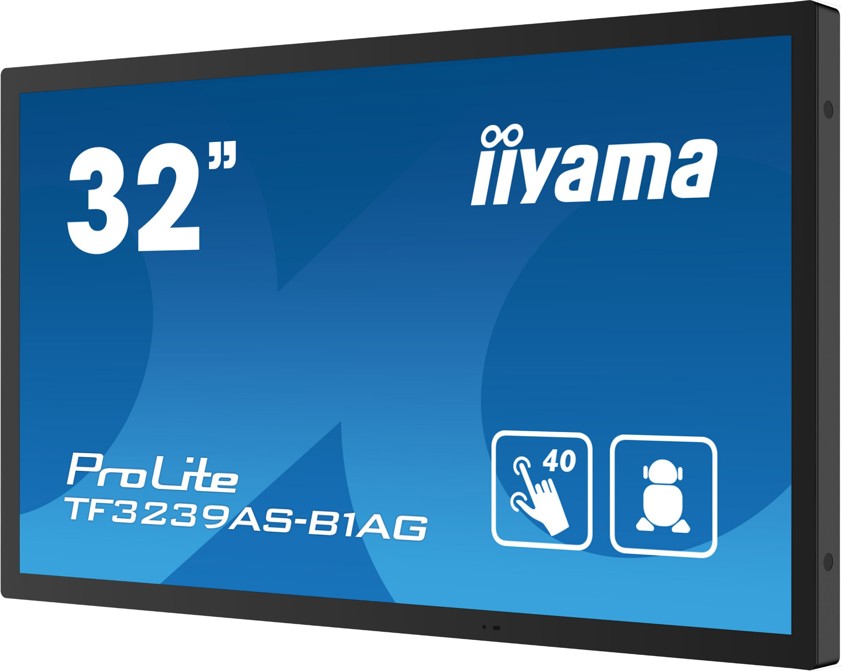

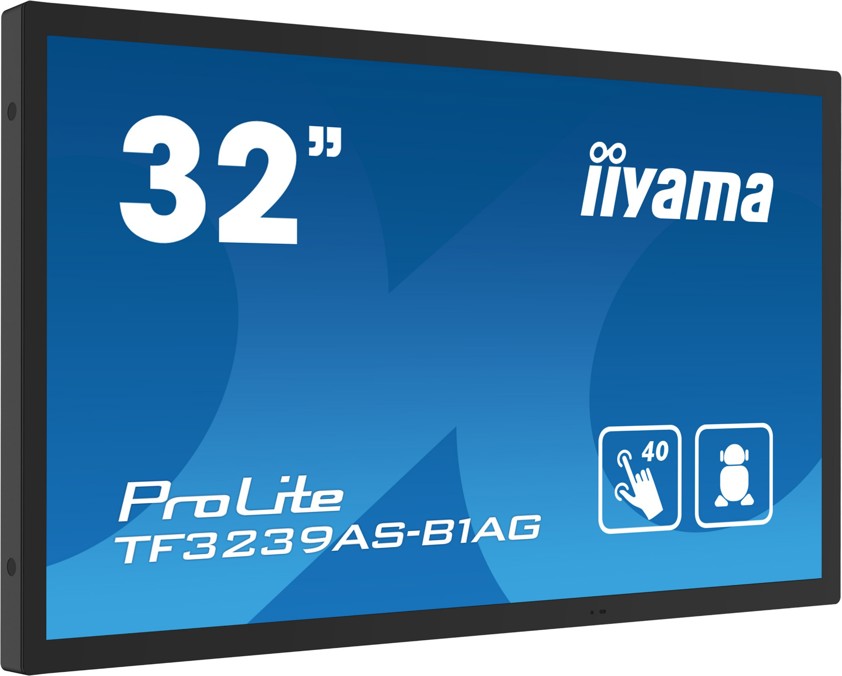

    iiyama 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing

    SKU: TF3239AS-B1AG
    £847.21 ex VAT
    £1,016.65 inc VAT
    Product out of stockOut of stock
    • Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF3239AS-B1AG can be equipped with optional external mounting brackets ( OMK4-4 ).
      Show more
    • Display
      LED backlightYes
      Panel typeIPS
      Display number of colours16.7 million colours
      Number of simultaneous touchpoints40
      TouchscreenYes
      Active display area (W x H)698.4 x 392.8 mm
      Display technologyLED
      Display diagonal80 cm (31.5")
      Display resolution1920 x 1080 pixels
      Display brightness500 cd/m²
      HD type2.4K Ultra HD
      Response time8 ms
      Contrast ratio (typical)1200:1
      Viewing angle, horizontal178°
      Viewing angle, vertical178°
      Pixel pitch0.363 x 0.363 mm
      Display diagonal (metric)80 cm
      Native aspect ratio16:9
      Horizontal scan range28 - 160 kHz
      Surface hardness3H
      Native refresh rate60 Hz
      Haze rate25%
      Multi-touchYes
      Glass thickness3 mm
      Ports & interfaces
      USB connector typeUSB Type-A, USB Type-B
      DisplayPort version1.2
      USB portYes
      HDMI version2.0
      RS-232CYes
      DisplayPorts quantity1
      Ethernet LANYes
      HDMI ports quantity2
      DVI portNo
      Ethernet LAN (RJ-45) ports1
      USB version2.0
      USB ports quantity3
      USB 2.0 Type-B ports quantity1
      Audio
      Number of built-in speakers2
      RMS rated power20 W
      Built-in speaker(s)Yes
      Design
      Product designDigital signage flat panel
      Placement supportedIndoor

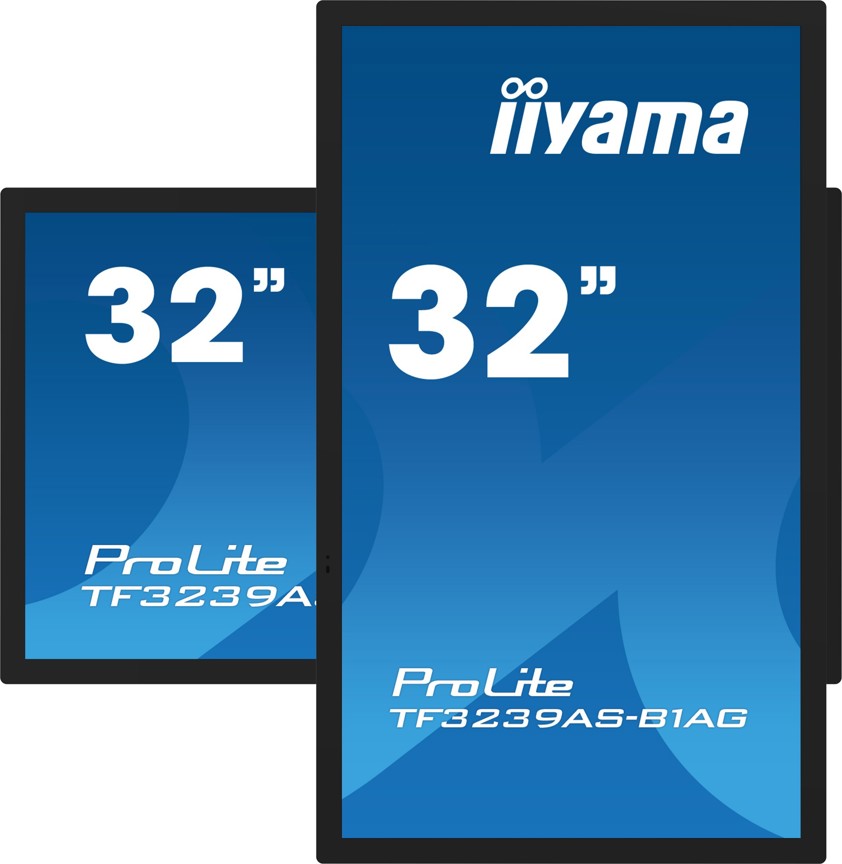

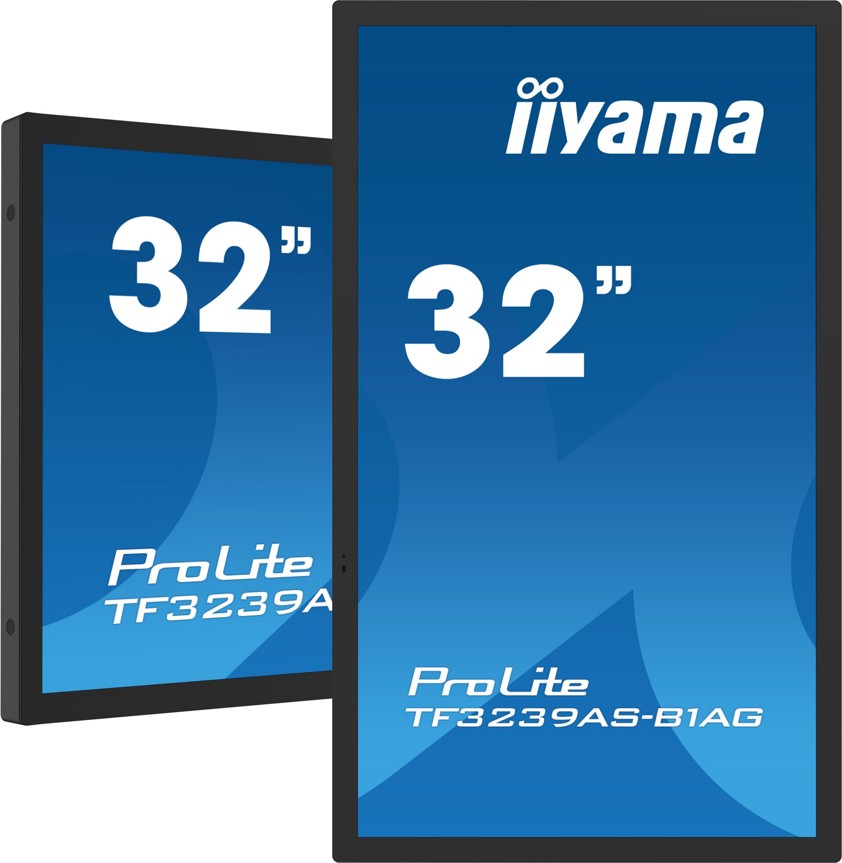

      OrientationHorizontal/Vertical
      Bezel width (top)2.2 cm
      Bezel width (side)2.2 cm
      Bezel width (bottom)2.2 cm
      Product colourBlack

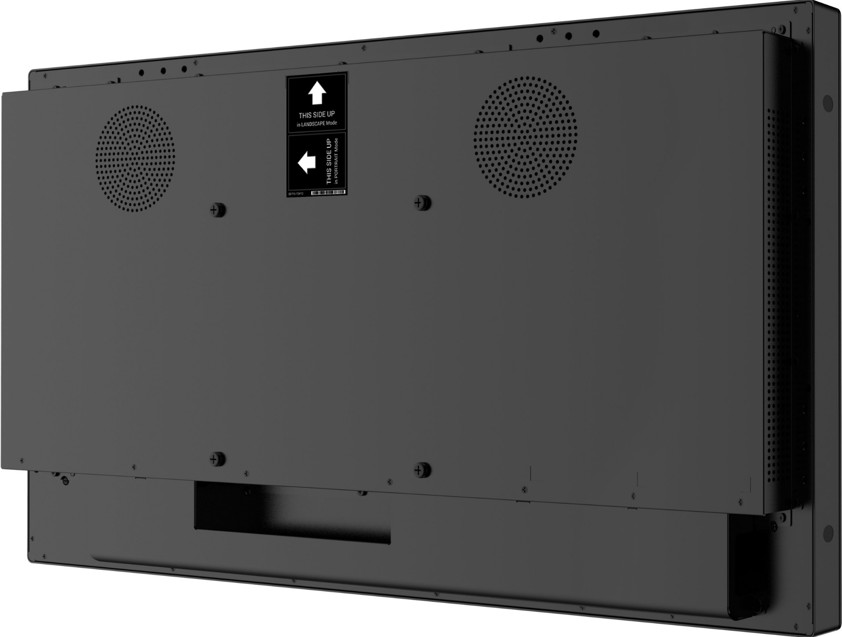

      Panel mounting interface200 x 200 mm
      CertificationTCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
      VESA mountingYes
      Screen shapeFlat
      Performance
      PurposeUniversal
      Operating hours (hours/days)24/7
      International Protection (IP) codeIP54
      Mean time between failures (MTBF)50000 h
      On Screen Display (OSD) languagesCzech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
      On Screen Display (OSD)Yes
      Number of OSD languages13
      HDCPYes
      HDCP version2.2
      Power
      Power consumption (off)0.3 W
      Power consumption (typical)50 W
      Power consumption (standby)0.5 W
      AC input voltage100 - 240 V
      AC input frequency50/60 Hz
      Energy efficiency scaleA to G
      Energy efficiency class (SDR)F
      Energy consumption (SDR) per 1000 hours31 kWh
      Computer system
      Computer systemYes
      Operating system installedAndroid
      Internal memory4 GB
      Internal storage capacity32 GB
      Processor manufacturerARM
      Built-in processorYes
      Processor architectureARM Cortex-A53+Cortex-A73
      Operating system version11
      Weight & dimensions
      Display width746.2 mm

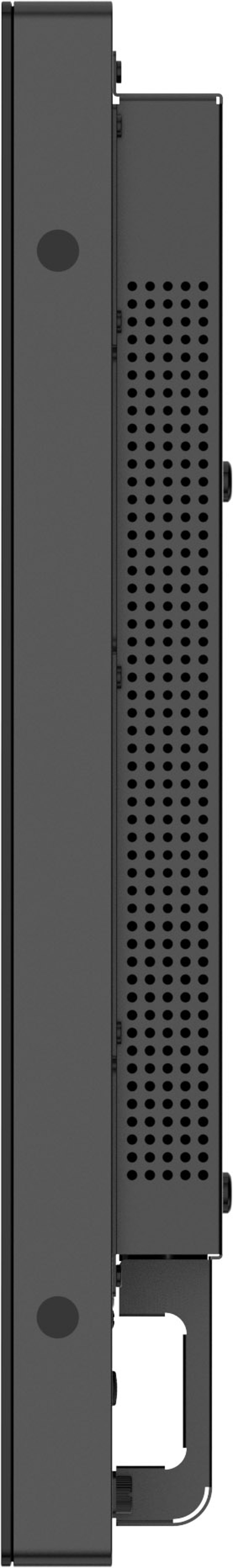

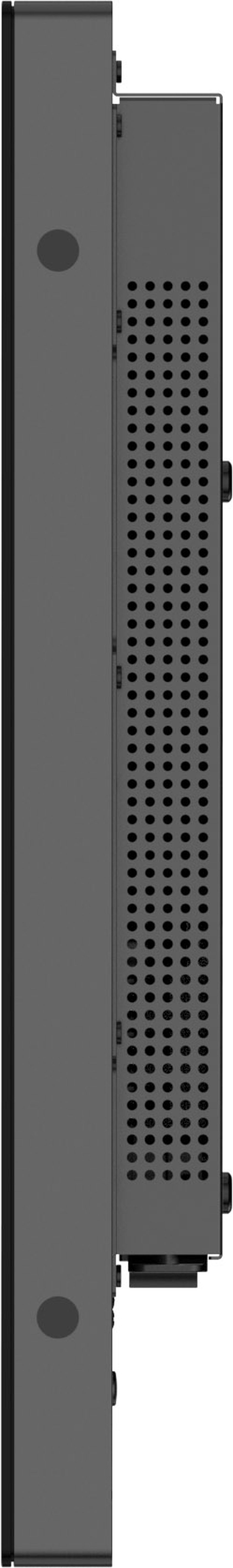

      Display depth62.4 mm
      Display height440.7 mm
      Display weight13.2 kg
      Packaging data
      Package width840 mm
      Package depth149 mm
      Package height560 mm
      Package volume16600 cm³
      Batteries includedYes
      Remote control includedYes

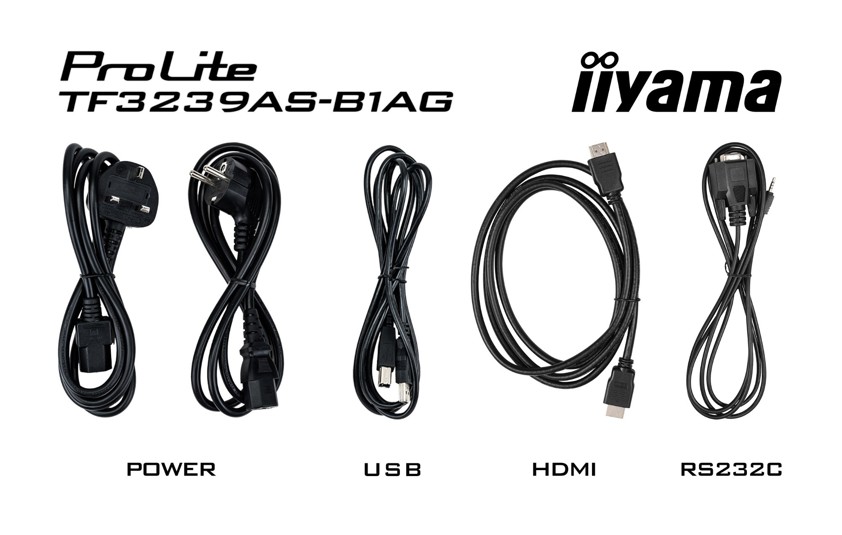

      Cables includedAC, DisplayPort, HDMI, USB
      Packaging content
      Batteries includedYes
      Remote control includedYes
      Cables includedAC, DisplayPort, HDMI, USB
      Operational conditions
      Operating temperature (T-T)0 - 40 °C
      Storage temperature (T-T)-20 - 60 °C
      Certificates
      CertificationTCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
      Technical details
      VESA mountingYes
      USB connector typeUSB Type-A, USB Type-B
      Panel typeIPS
      DisplayPort version1.2
      Number of simultaneous touchpoints40
      Thin Client
      Operating system installedAndroid
      Internal memory4 GB
      Internal storage capacity32 GB
      Other features
      USB connector typeUSB Type-A, USB Type-B
      Panel typeIPS
      DisplayPort version1.2
      Number of simultaneous touchpoints40
      Mean time between failures (MTBF)50000 h
      Display technologyLED
      Bezel width (top)2.2 cm
      Bezel width (side)2.2 cm
      Bezel width (bottom)2.2 cm
      Energy efficiency scaleA to G
