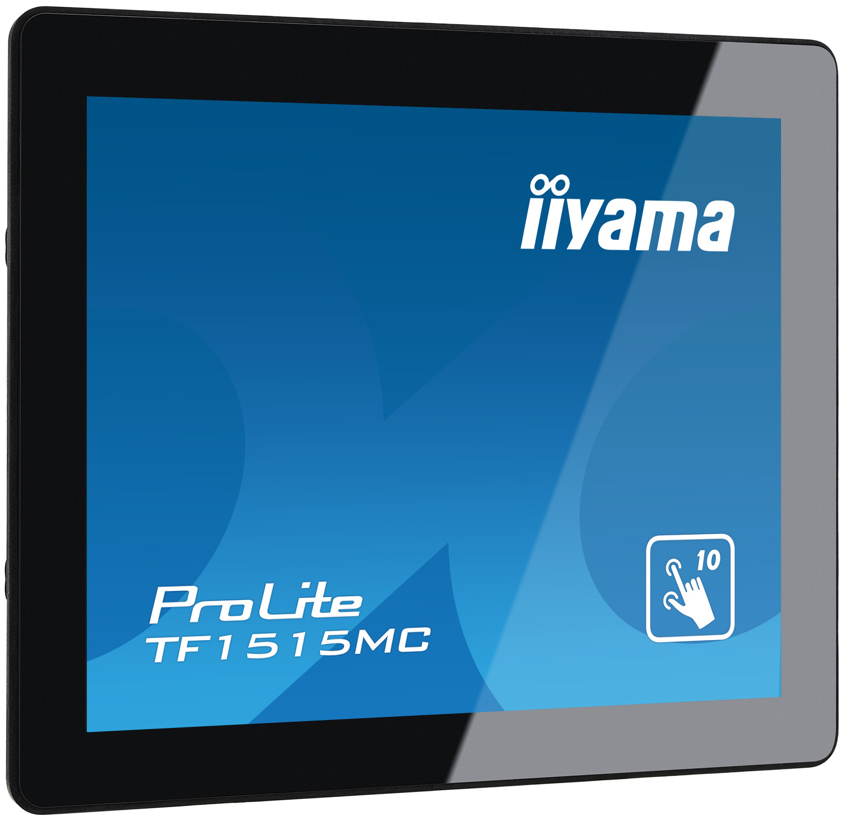

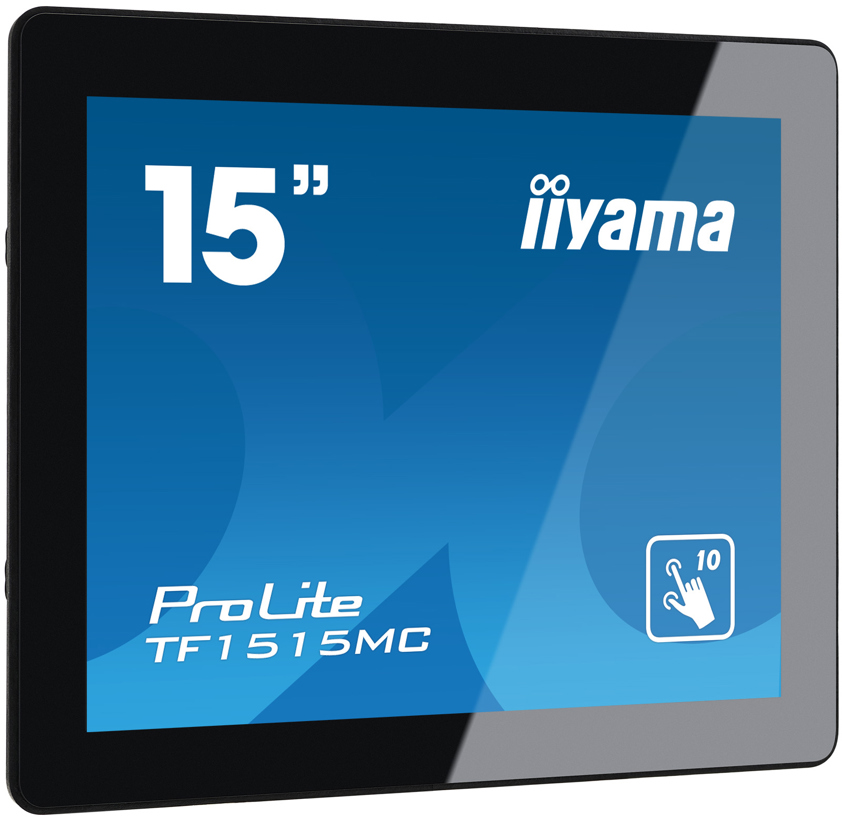

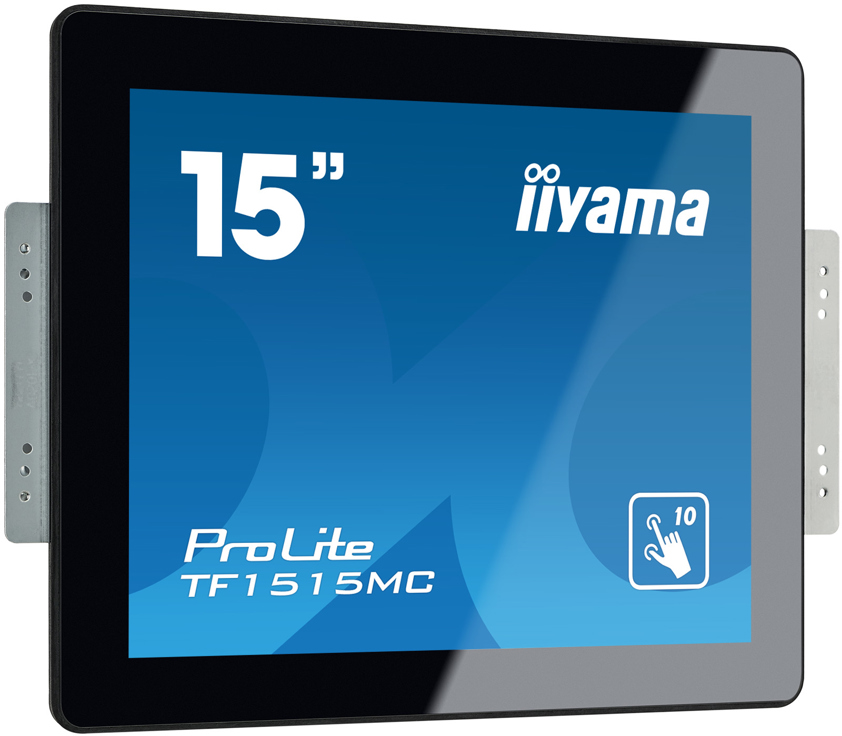

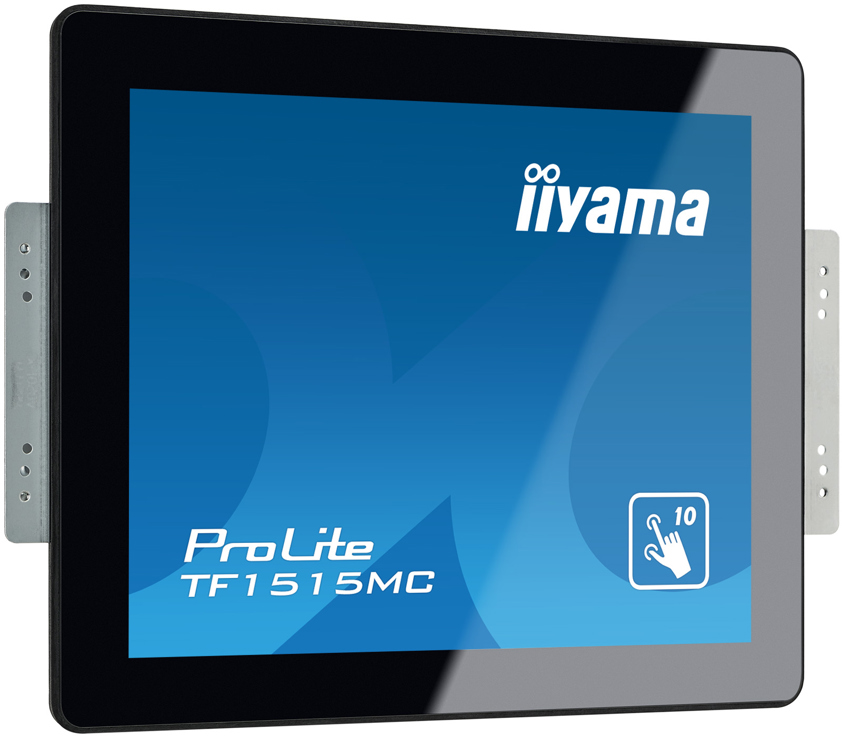

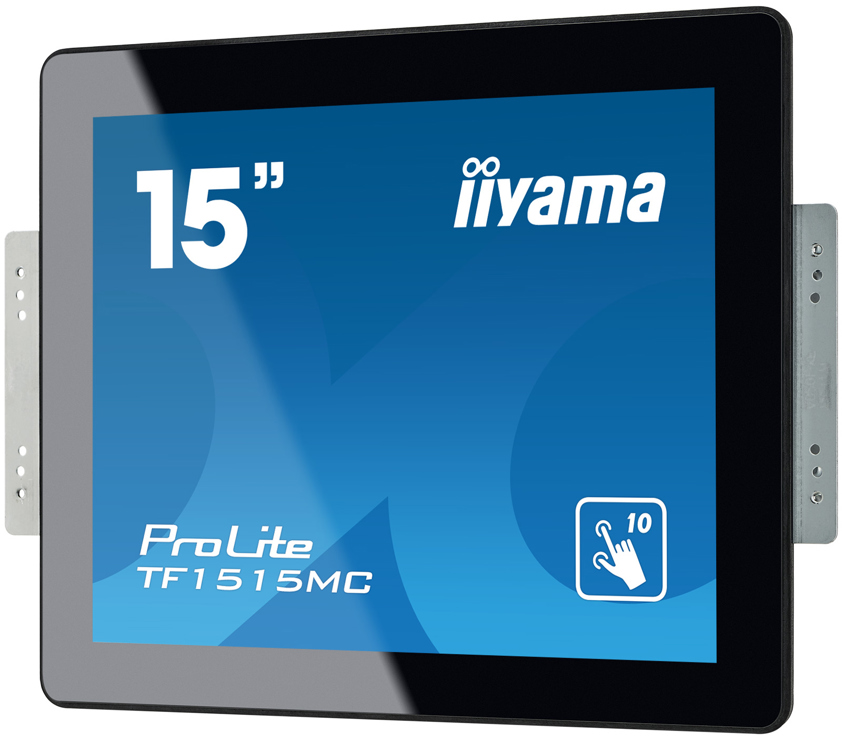

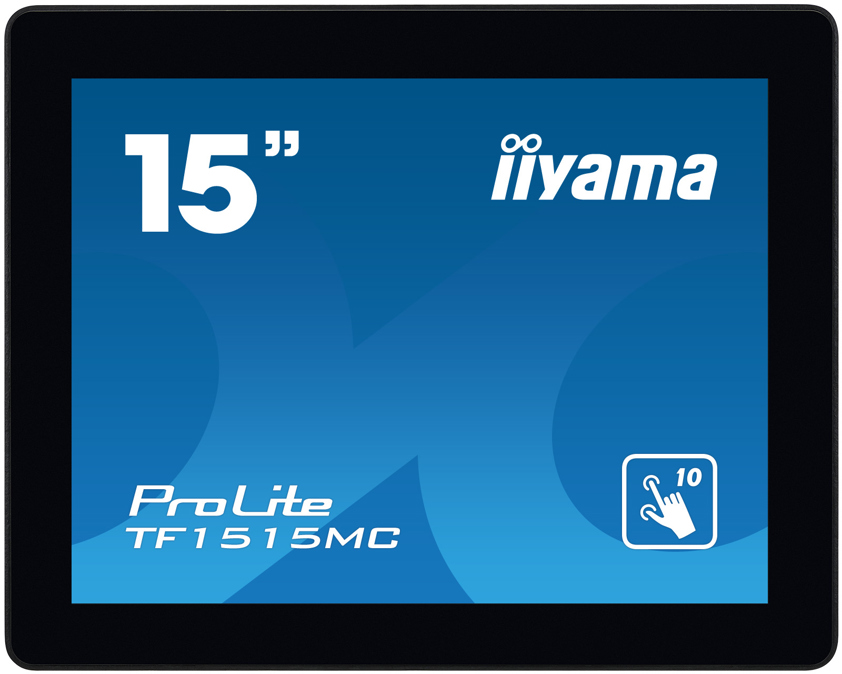

iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function
SKU: TF1515MC-B2£326.27 ex VAT
£391.52 inc VAT

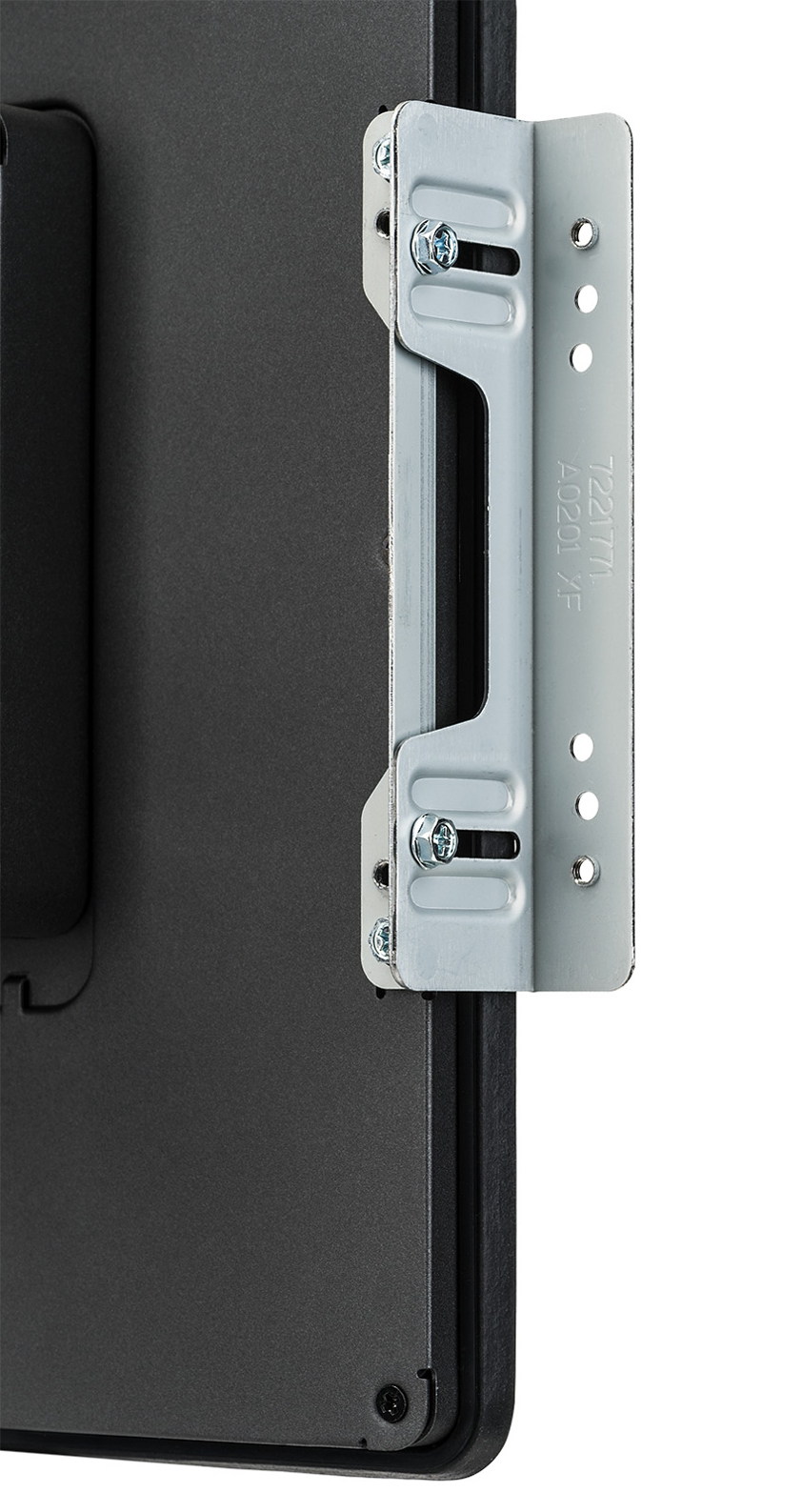

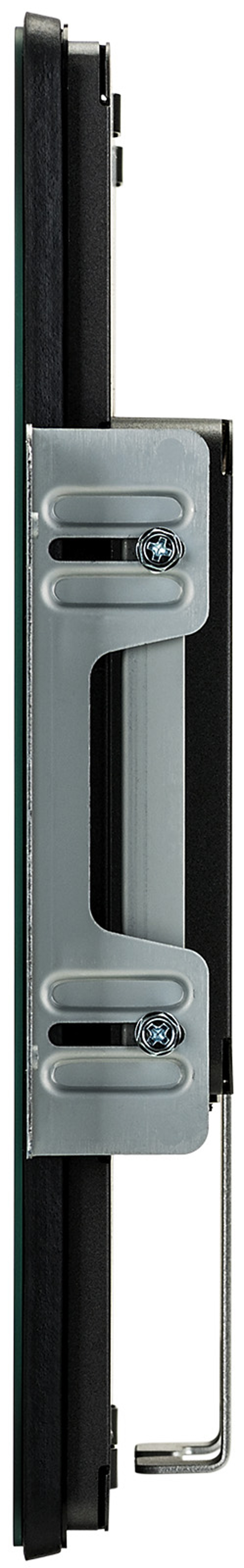

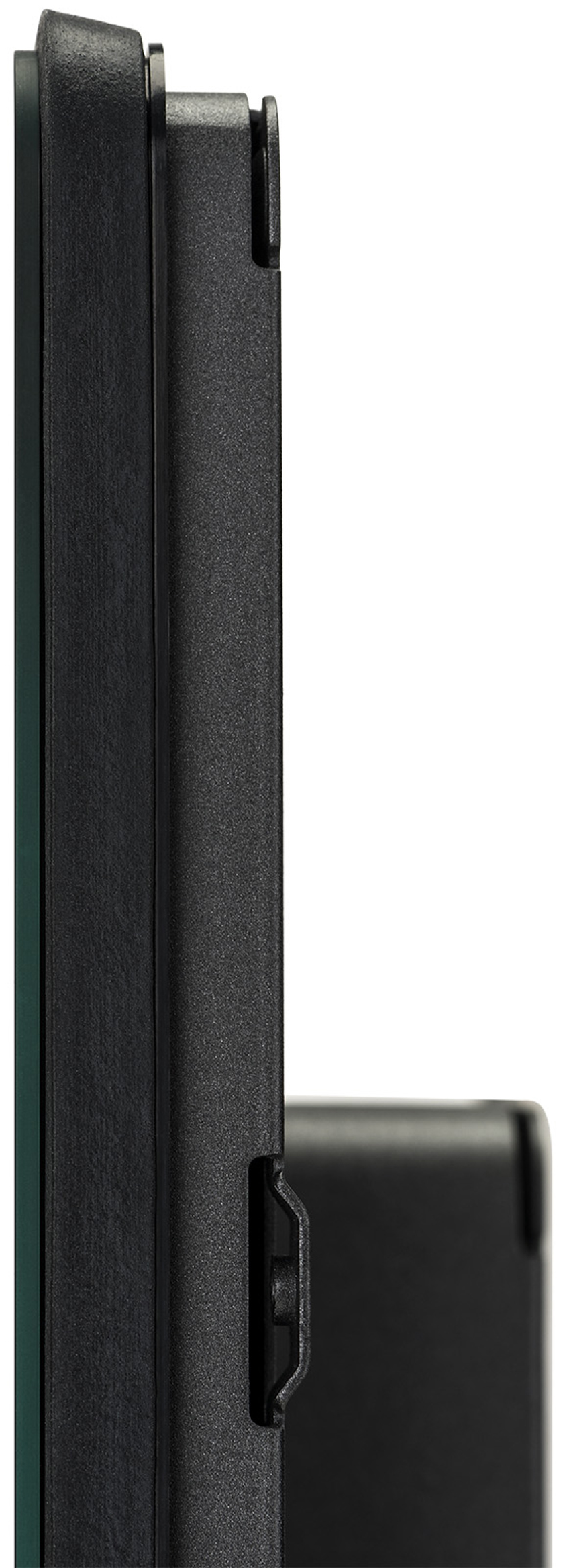

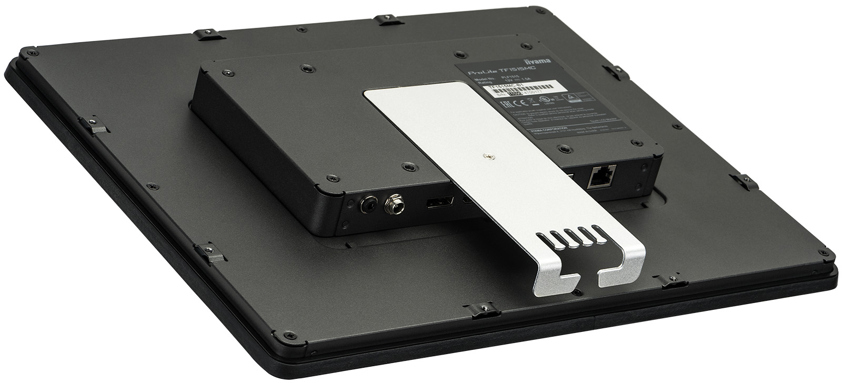

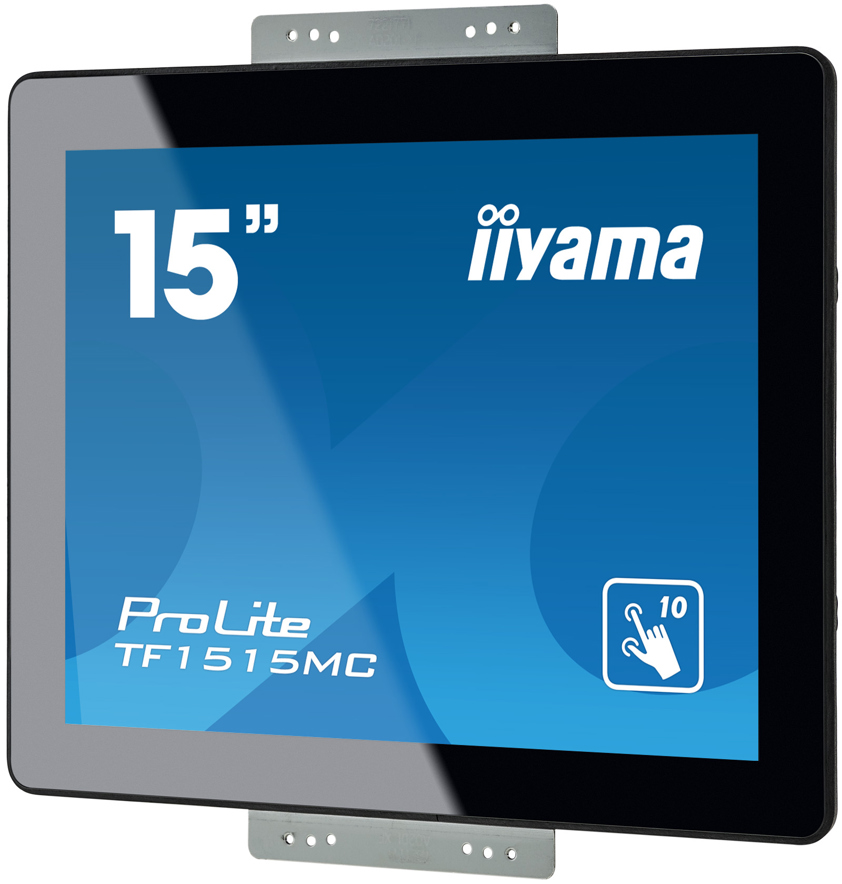

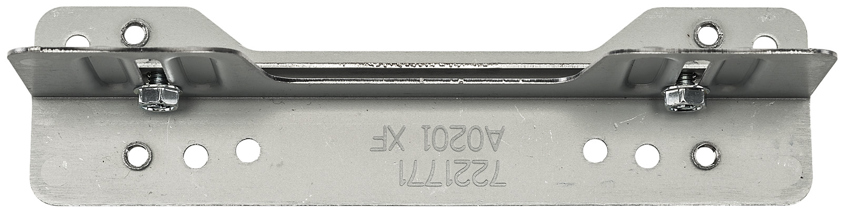

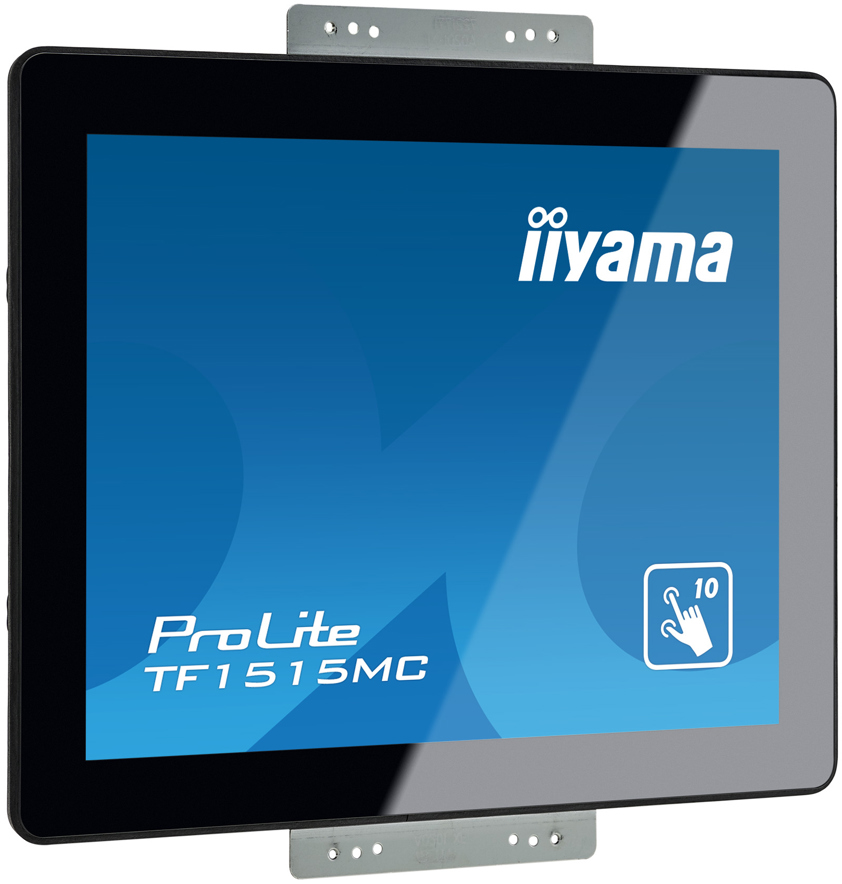

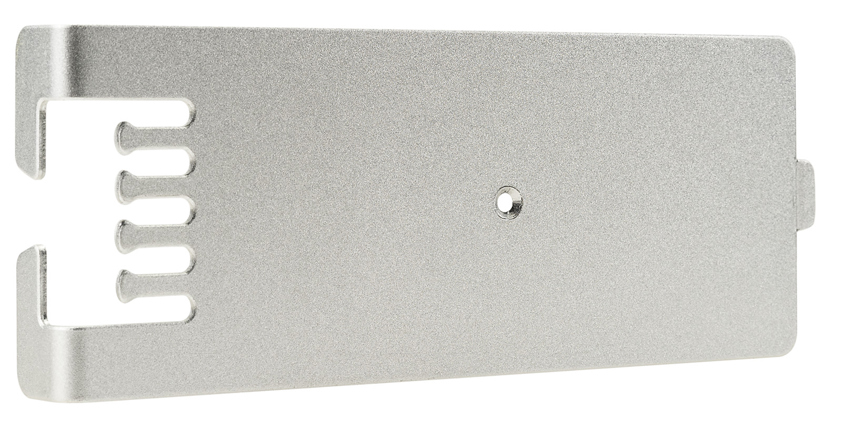

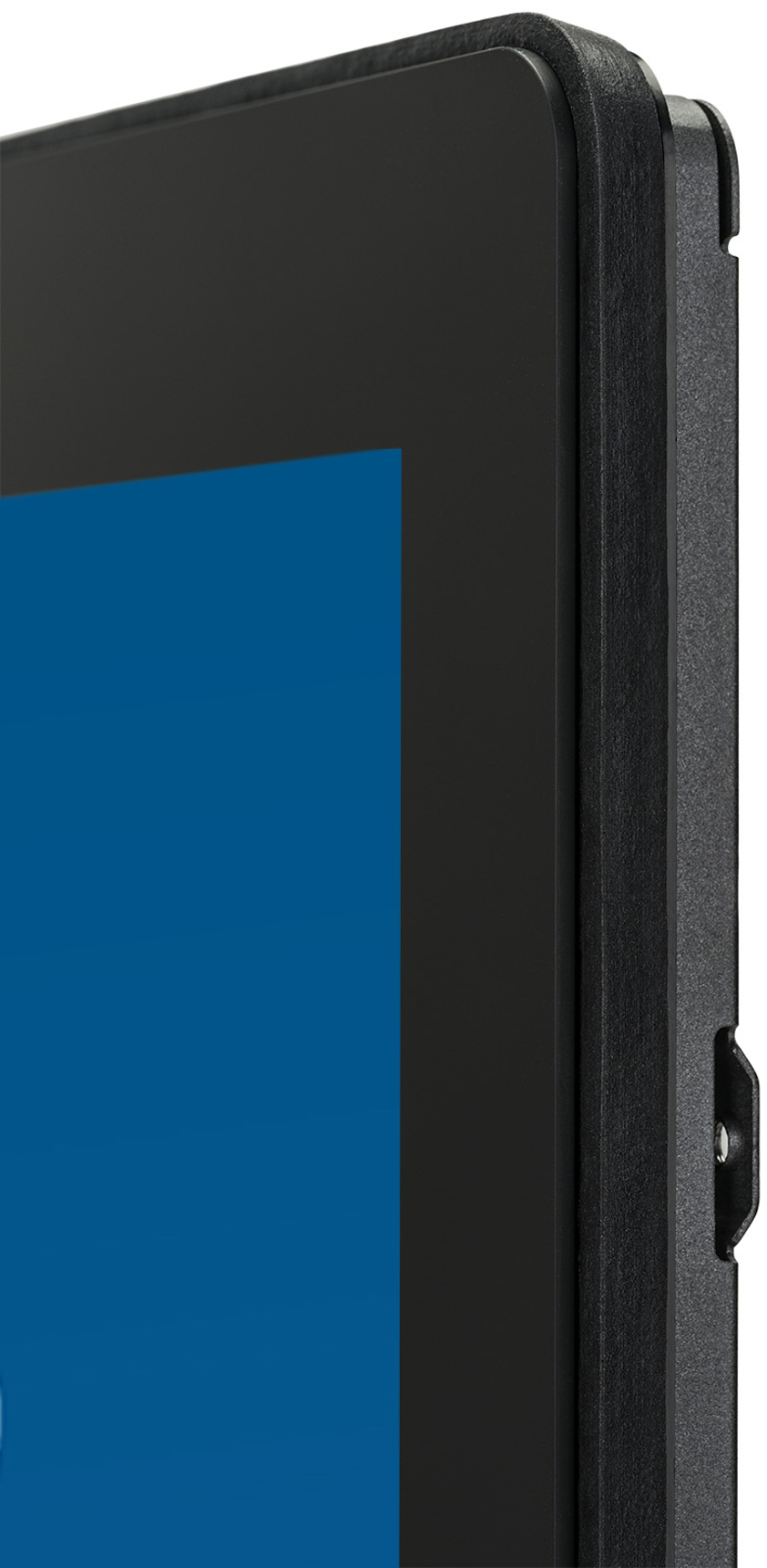

Out of stock- The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display Panel type TN Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LED Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 350 cd/m² HD type XGA Response time 8 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 160° Viewing angle, vertical 150° Pixel pitch 0.297 x 0.297 mm Native aspect ratio 4:3 Maximum refresh rate 75 Hz Touchscreen technology Projected capacitive system Glass thickness 6 mm Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Placement supported Horizontal/Vertical Product colour Black Panel mounting interface 100 x 100 mm Certification CB, CE, TÜV-Bauart, EAC, cULus VESA mounting Yes Screen shape Flat Wall mountable Yes Performance International Protection (IP) code IP65 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese On Screen Display (OSD) Yes Number of OSD languages 7 HDCP Yes Plug and Play Yes Windows operating systems supported Yes Linux operating systems supported Yes Power Power consumption (off) 1.2 W Power consumption (typical) 16 W Power consumption (standby) 1.2 W Energy efficiency scale A to G Energy efficiency class (SDR) E Energy consumption (SDR) per 1000 hours 10 kWh Computer system Windows operating systems supported Yes Linux operating systems supported Yes Packaging data Package width 460 mm Package depth 175 mm Package height 470 mm Package weight 4.6 kg Cables included AC, DisplayPort, HDMI, USB Packaging content Cables included AC, DisplayPort, HDMI, USB Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Certificates Certification CB, CE, TÜV-Bauart, EAC, cULus Technical details VESA mounting Yes Power supply type AC/DC Panel type TN Depth (without stand) 291 mm Number of simultaneous touchpoints 10 Weight (without stand) 2.9 kg Height (without stand) 41.5 mm Display viewable area (HxV) 304.1 x 228.1 mm Logistics data Harmonized System (HS) code 85285210 Sustainability European Product Registry for Energy Labelling (EPREL) code 378636 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC/DC Panel type TN Depth (without stand) 291 mm Number of simultaneous touchpoints 10 Weight (without stand) 2.9 kg Height (without stand) 41.5 mm Display viewable area (HxV) 304.1 x 228.1 mm LED indicators Yes Display technology LED Built-in microphone No Built-in camera No Aspect ratio 4:3 Windows operating systems supported Yes Linux operating systems supported Yes Plug and Play Yes Maximum refresh rate 75 Hz Energy efficiency scale A to G Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
