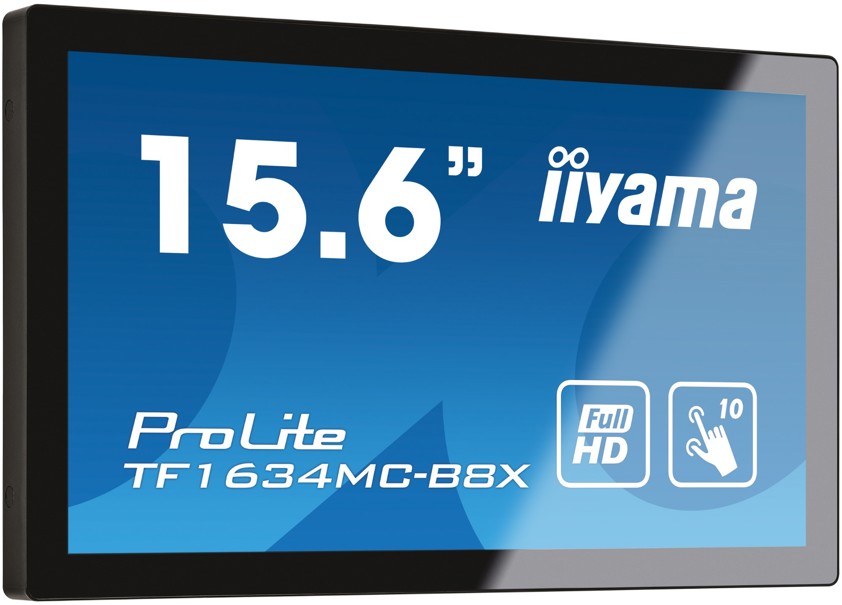

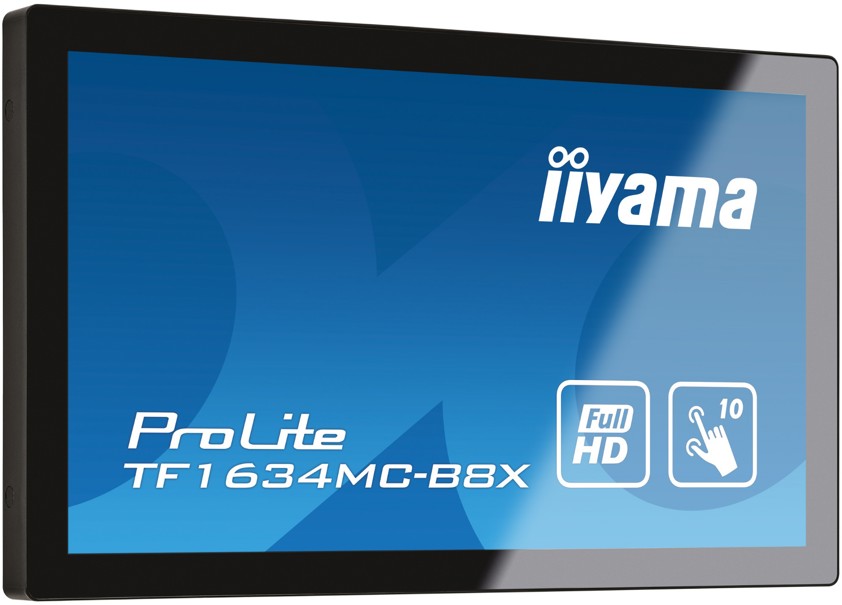

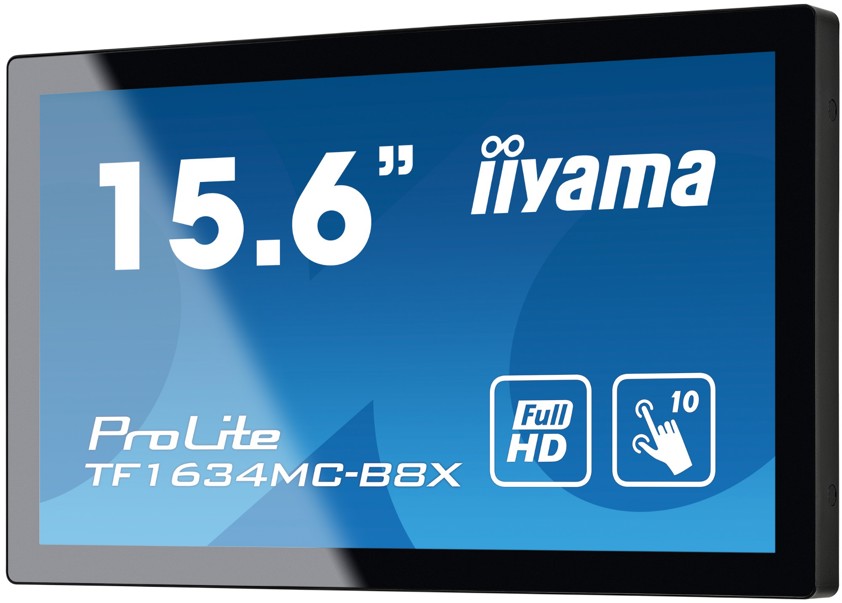

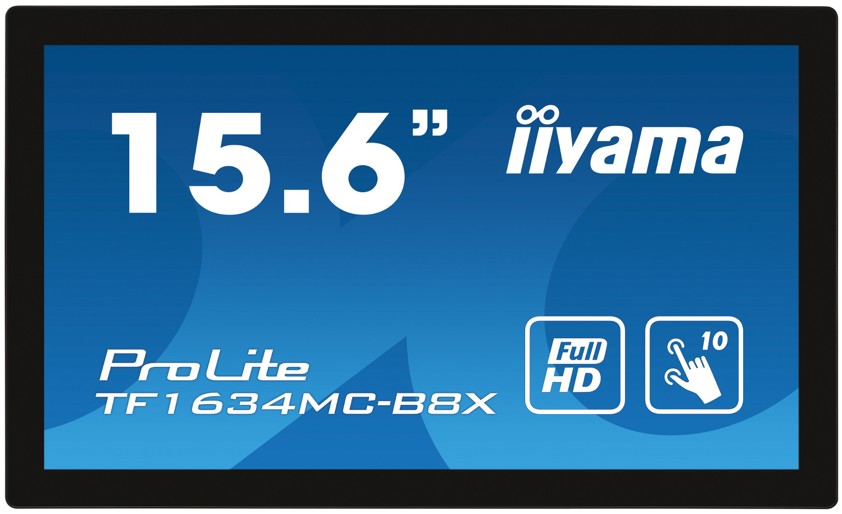

iiyama ProLite 15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function
SKU: TF1634MC-B8X£423.60 ex VAT
£508.32 inc VAT

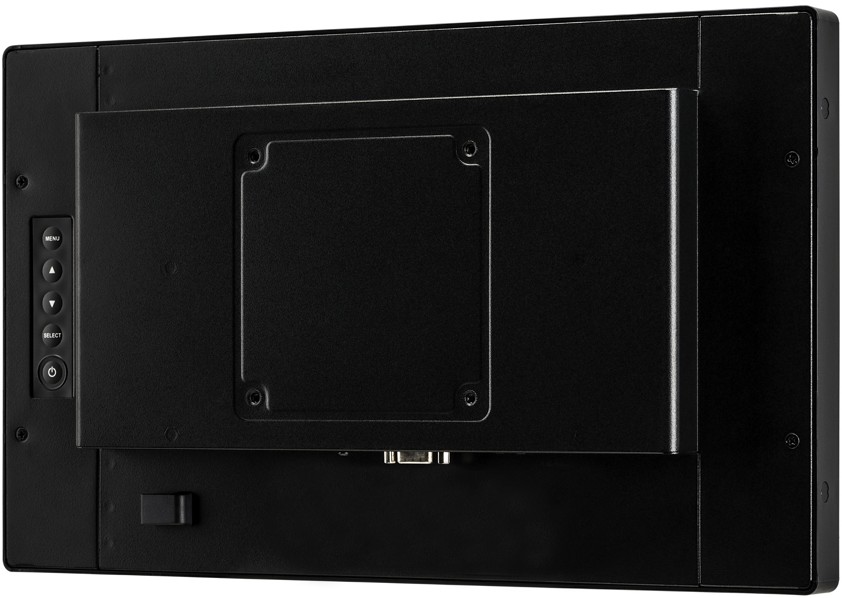

Out of stock- The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.

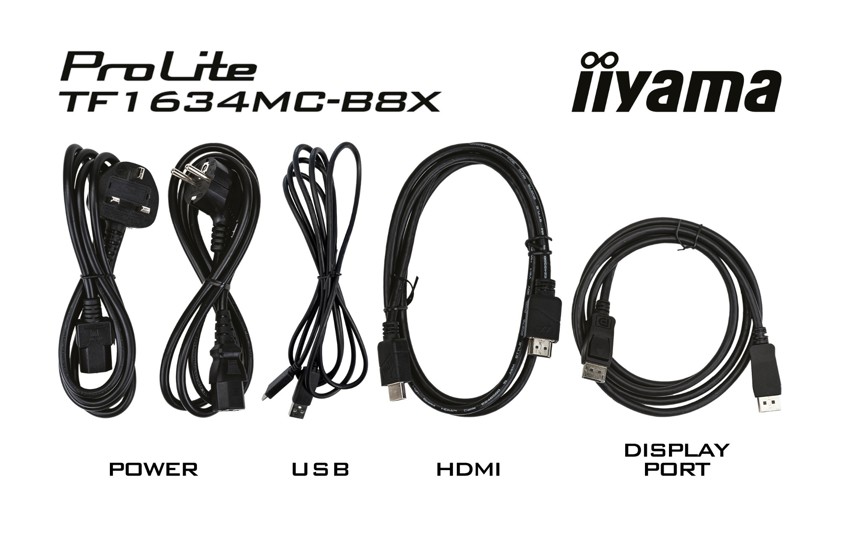

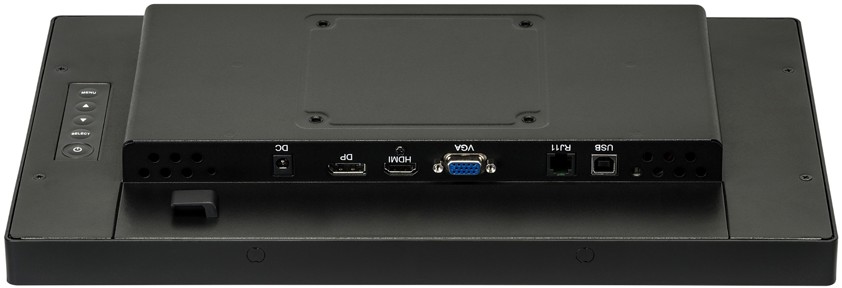

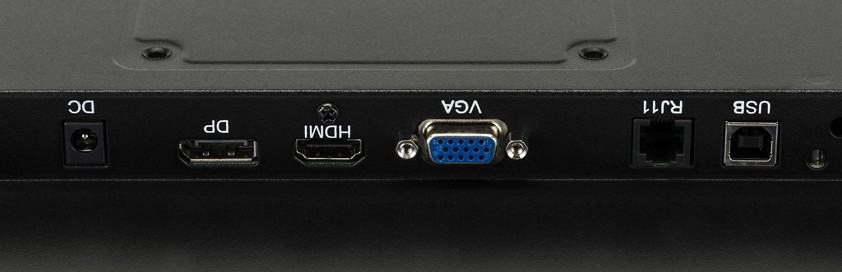

Display HDCP Yes Screen shape Flat Display number of colours 16.2 million colours Native aspect ratio 16:9 HD type Full HD Display technology LED Pixel pitch 0.179 x 0.179 mm Horizontal scan range 30 - 84 kHz Display resolution 1920 x 1080 pixels Response time 25 ms Display diagonal 39.6 cm (15.6") Contrast ratio (typical) 700:1 Surface hardness 7H Touchscreen type Multi-user Touchscreen Yes Number of simultaneous touchpoints 10 Panel type IPS Display diagonal (metric) 39.5 cm Touch technology Multi-touch Touchscreen technology Projected capacitive system Display brightness 450 cd/m² Response time measurement type GTG (Gray to Gray) Performance Built-in microphone No Built-in camera No AMD FreeSync No NVIDIA G-SYNC No Management features On Screen Display (OSD) Yes Number of OSD languages 7 Multimedia Built-in microphone No Built-in camera No Design Product colour Black International Protection (IP) code IP65 Glass thickness 2.4 mm Camera Built-in camera No Ports & interfaces VGA (D-Sub) ports quantity 1 HDMI ports quantity 1 DisplayPorts quantity 1 HDCP Yes HDMI Yes USB Touch port Yes Technical details Height (without stand) 230.5 mm Depth (without stand) 46 mm Width (without stand) 381 mm Placement supported Horizontal/Vertical HDMI Yes Display viewable area (HxV) 344.2 x 193.5 mm Built-in microphone No Product colour Black Sustainability certificates ErP Compliance certificates CE, REACH, RoHS, WEEE Surface hardness 7H Touchscreen type Multi-user Touchscreen Yes Number of simultaneous touchpoints 10 Ergonomics Wall mountable Yes VESA mounting Yes Panel mounting interface 100 x 100 mm On Screen Display (OSD) Yes Number of OSD languages 7 Power Power consumption (standby) 1.5 W Power consumption (typical) 18 W Power consumption (off) 0.3 W Energy efficiency class (SDR) F Energy consumption (SDR) per 1000 hours 12 kWh European Product Registry for Energy Labelling (EPREL) code 391713 Weight & dimensions Height (without stand) 230.5 mm Depth (without stand) 46 mm Width (without stand) 381 mm Weight (without stand) 2 kg Package width 455 mm Package depth 290 mm Package height 365 mm Package weight 6.6 kg Packaging data Package width 455 mm Package depth 290 mm Package height 365 mm Package weight 6.6 kg Cables included AC, DisplayPort, HDMI, USB Packaging content Cables included AC, DisplayPort, HDMI, USB Sustainability European Product Registry for Energy Labelling (EPREL) code 391713 Sustainability certificates ErP Other features Placement supported Horizontal/Vertical Display viewable area (HxV) 344.2 x 193.5 mm International Protection (IP) code IP65 Compliance certificates CE, REACH, RoHS, WEEE Height (without stand) 230.5 mm Depth (without stand) 46 mm Width (without stand) 381 mm HDMI Yes Surface hardness 7H Touchscreen type Multi-user Touchscreen Yes Number of simultaneous touchpoints 10 Logistics data Harmonized System (HS) code 85285210 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
