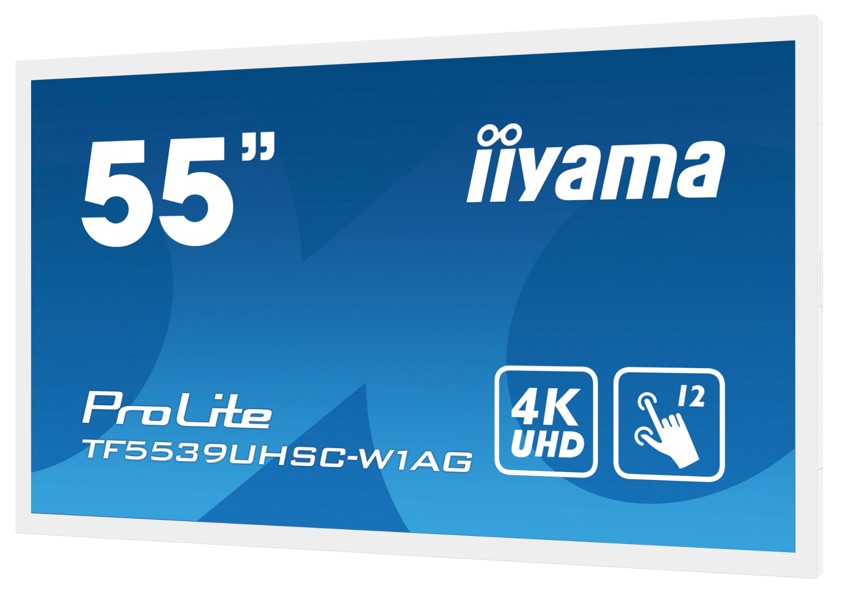

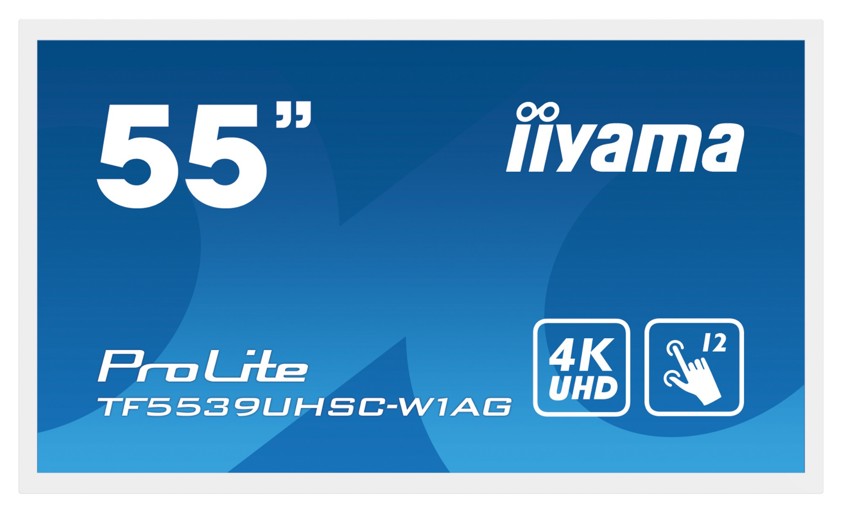

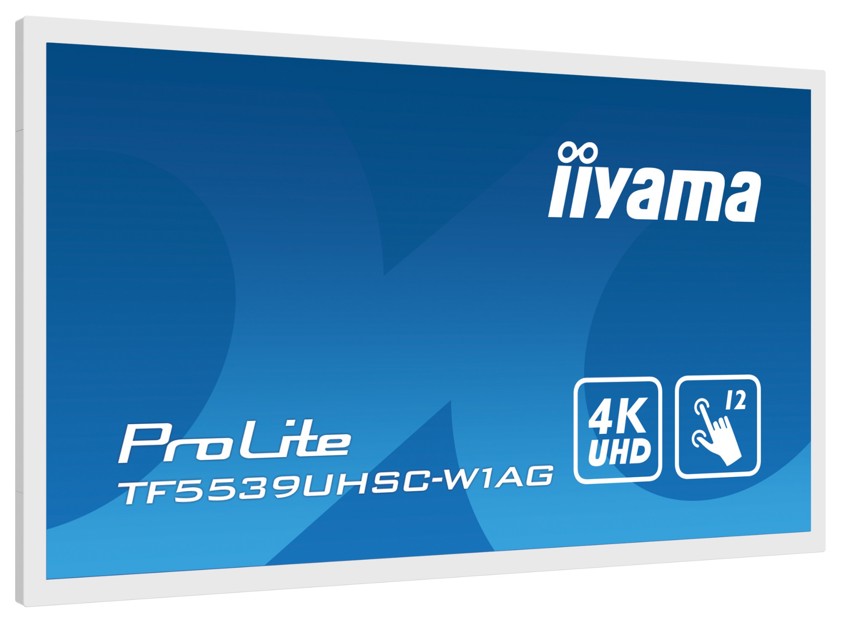

    iiyama ProLite 55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

    SKU: TF5539UHSC-W1AG
    £2,046.48 ex VAT
    £2,455.78 inc VAT
    Product out of stockOut of stock

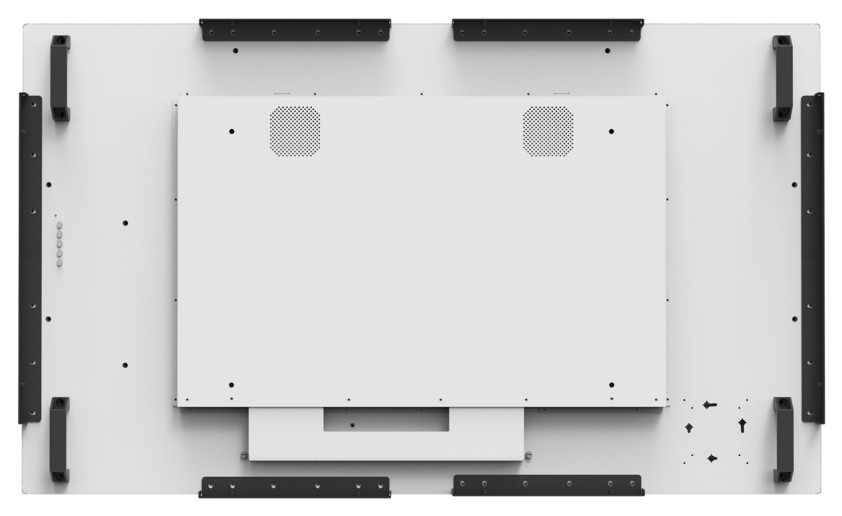

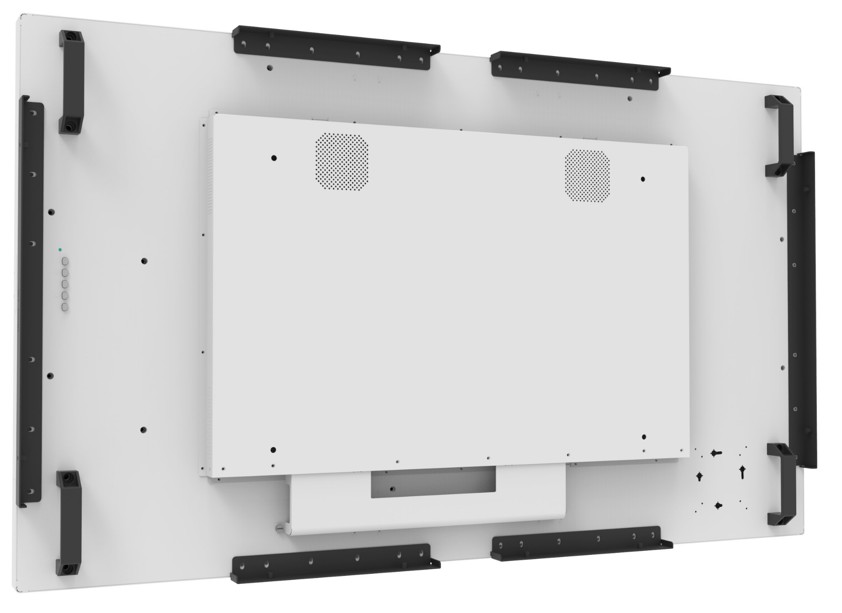

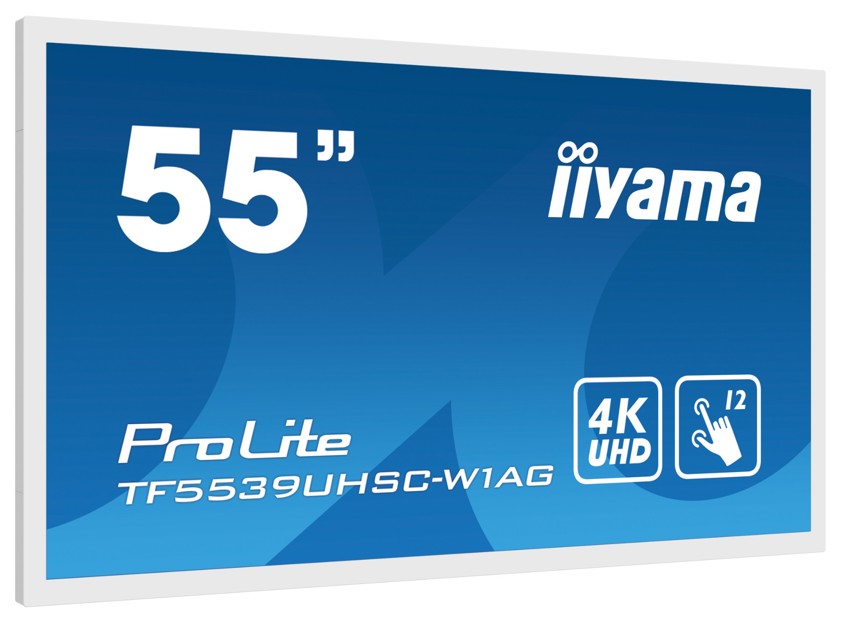

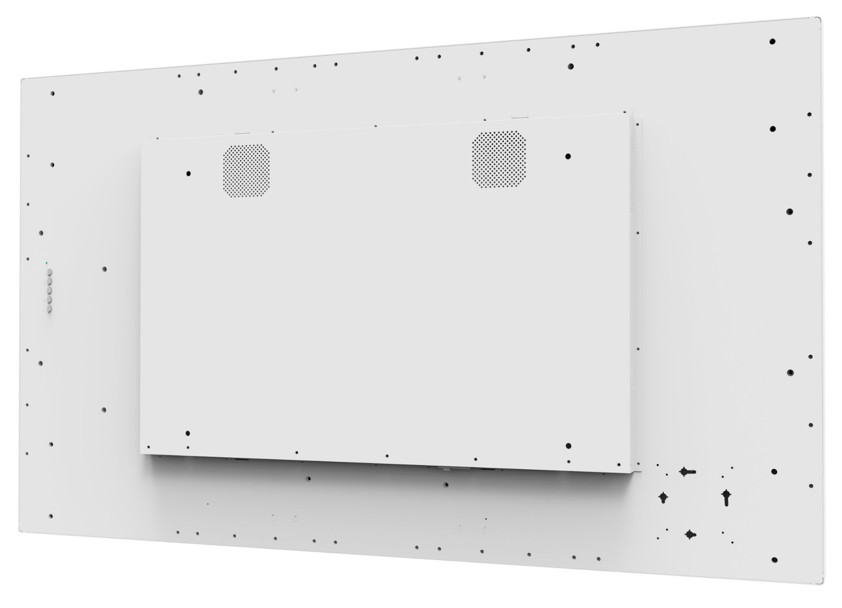

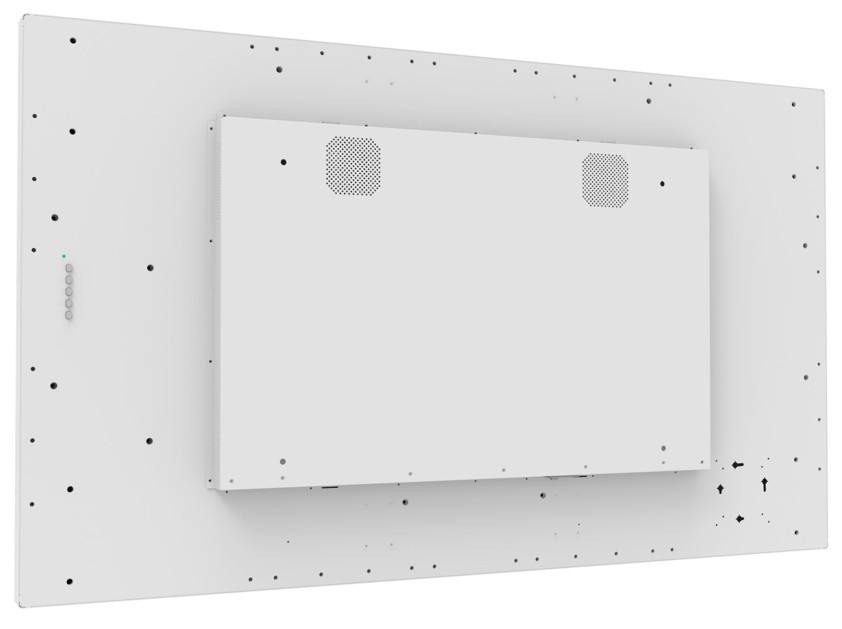

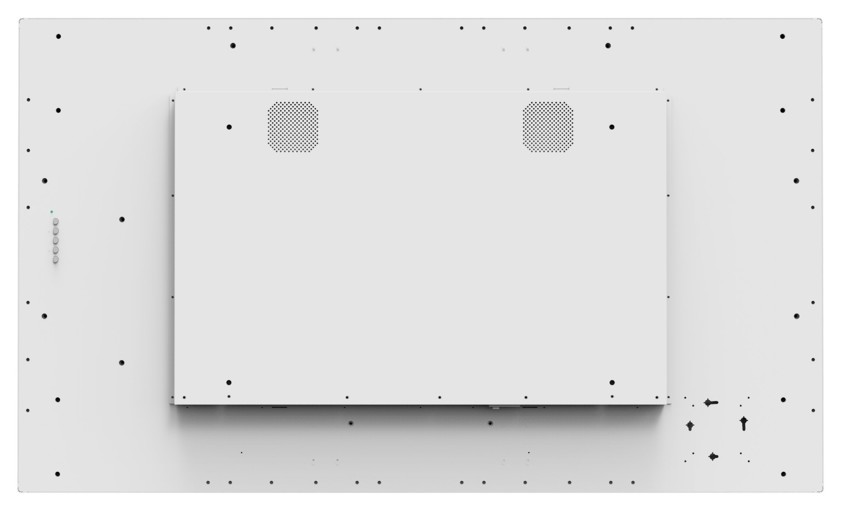

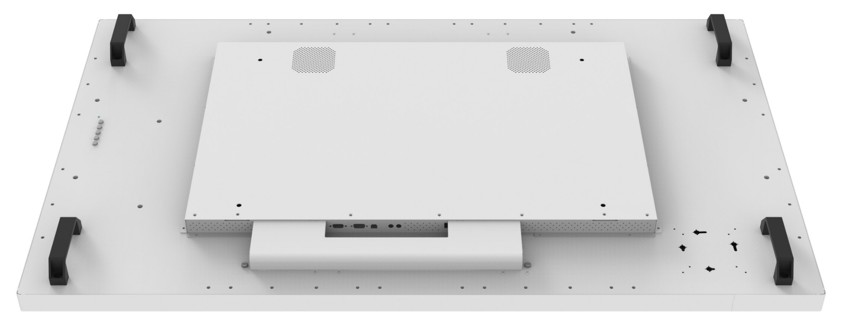

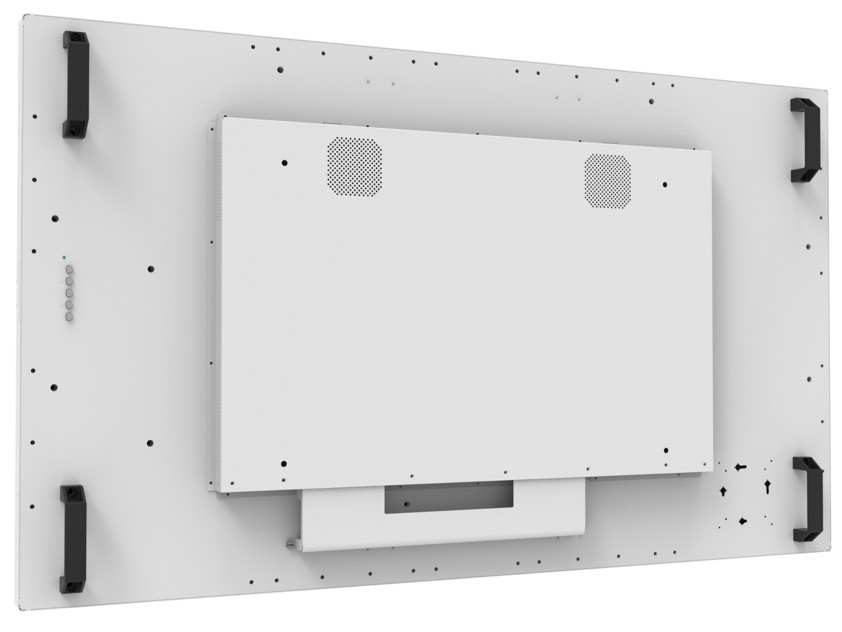

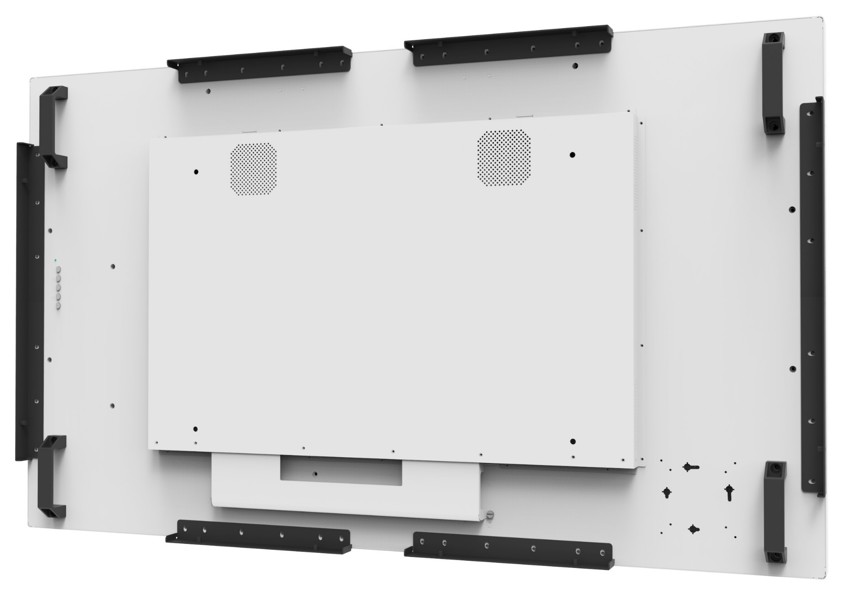

    • The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.
      Show more
    • Display
      HDCPYes
      Screen shapeFlat
      Display number of colours16.78 million colours
      Native aspect ratio16:9
      Maximum refresh rate60 Hz
      HD type4K Ultra HD
      Display technologyLED
      Viewing angle, horizontal178°
      Viewing angle, vertical178°
      Pixel pitch0.315 x 0.315 mm
      Viewable size, horizontal121.2 cm
      Viewable size, vertical68.3 cm
      Digital horizontal frequency30 - 83 kHz
      Display resolution3840 x 2160 pixels
      Response time8 ms
      Display diagonal139.7 cm (55")
      Contrast ratio (typical)1100:1
      Surface hardness7H
      Touchscreen typeMulti-user
      TouchscreenYes
      Number of simultaneous touchpoints15
      Panel typeIPS
      Display diagonal (metric)139 cm
      Touch technologyMulti-touch
      Touchscreen technologyProjected capacitive system
      Display brightness500 cd/m²
      Audio
      Built-in speaker(s)Yes
      RMS rated power16 W
      Performance
      Built-in speaker(s)Yes
      RMS rated power16 W
      Mean time between failures (MTBF)50000 h
      Built-in microphoneNo
      Built-in cameraNo
      AMD FreeSyncNo
      NVIDIA G-SYNCNo
      Network
      Ethernet LAN (RJ-45) ports1
      Multimedia
      Number of speakers2
      Built-in speaker(s)Yes
      RMS rated power16 W
      Built-in microphoneNo
      Built-in cameraNo
      Design
      Product colourWhite
      International Protection (IP) codeIP54
      Housing materialMetal
      Glass thickness4 mm
      Mean time between failures (MTBF)50000 h
      Camera
      Built-in cameraNo

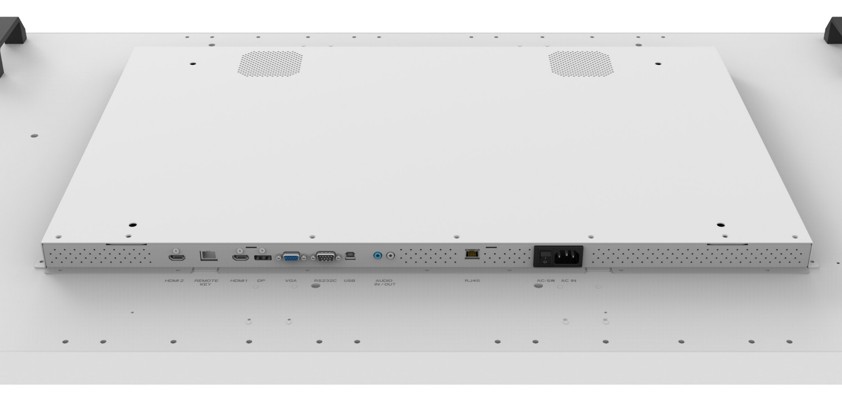

      Ports & interfaces
      VGA (D-Sub) ports quantity1
      HDMI ports quantity2
      DisplayPorts quantity1
      HDCPYes
      Audio input1
      Audio output1
      HDMIYes
      HDMI version1.4/2.0
      DisplayPort version1.2
      RS-232CYes
      Ethernet LAN (RJ-45) ports1
      Technical details
      Height (without stand)749.4 mm
      Depth (without stand)68 mm
      Width (without stand)1271.5 mm

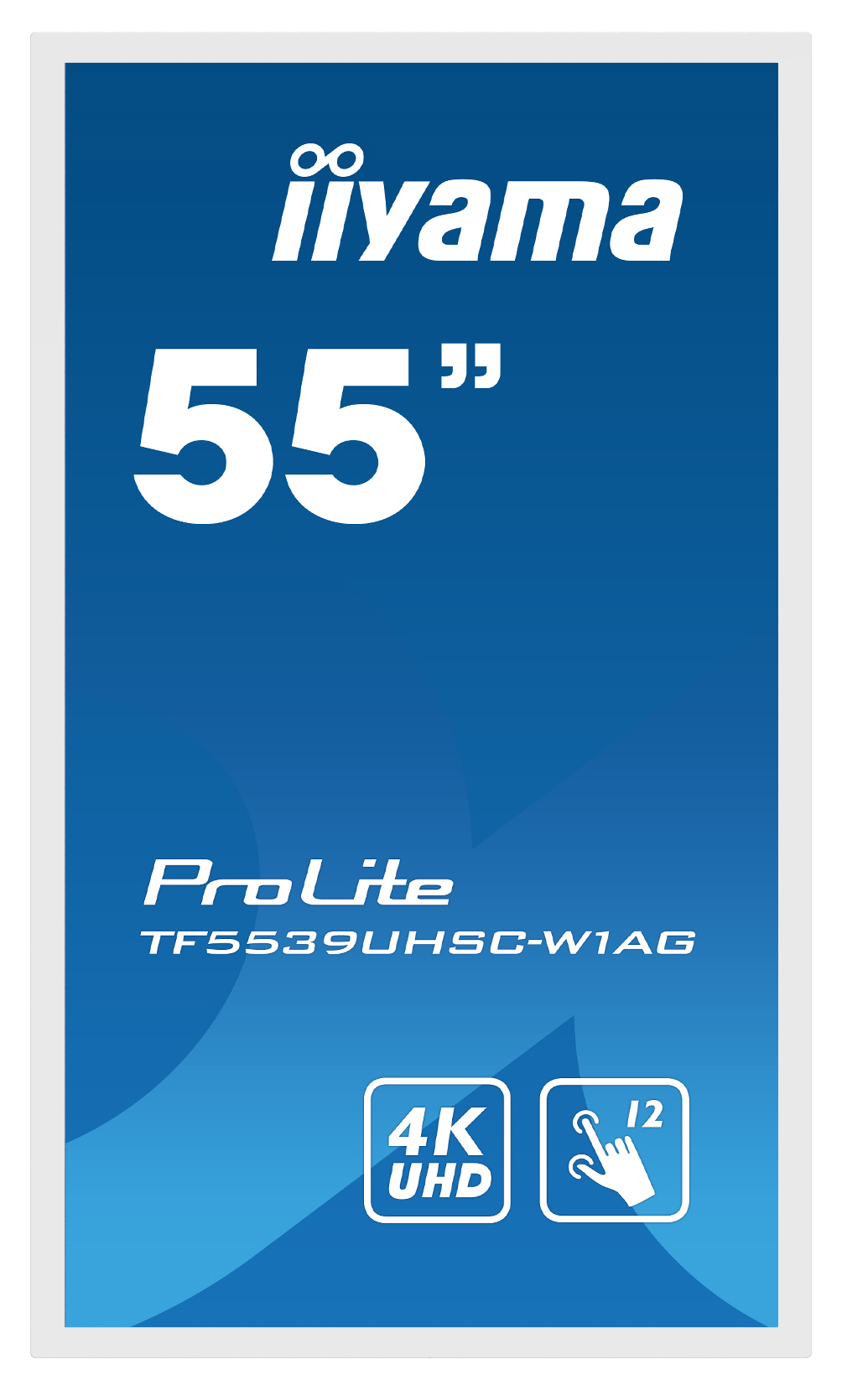

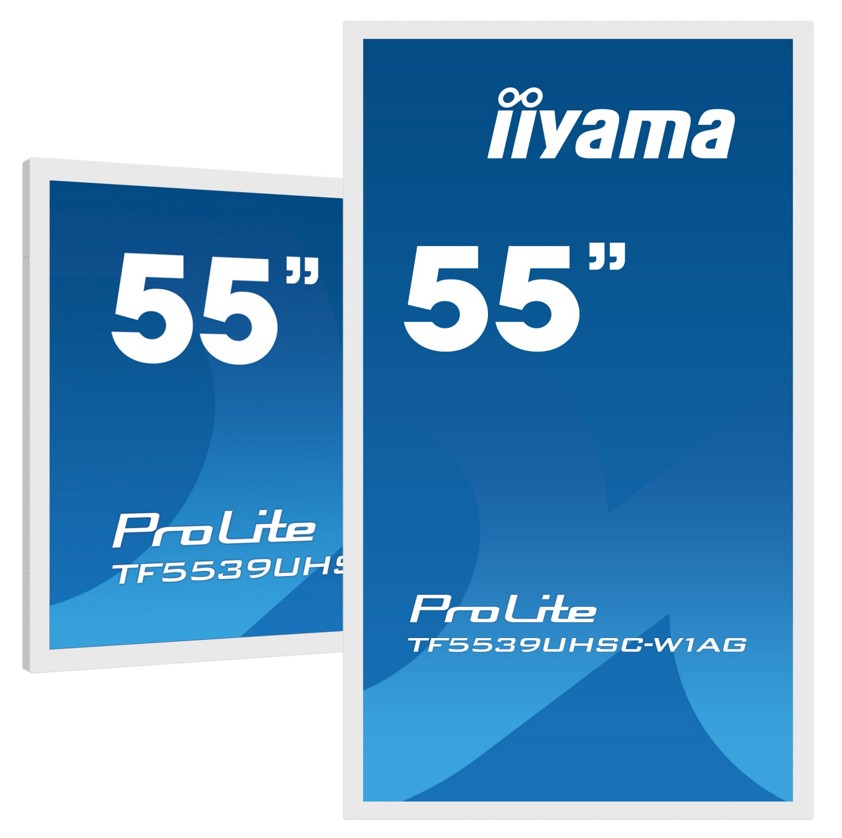

      Placement supportedHorizontal/Vertical
      Mean time between failures (MTBF)50000 h
      HDMIYes
      Built-in microphoneNo
      Product colourWhite
      Surface hardness7H
      Touchscreen typeMulti-user
      TouchscreenYes
      Number of simultaneous touchpoints15
      RS-232CYes
      Ergonomics
      Wall mountableYes
      VESA mountingYes
      Panel mounting interface600 x 400 mm
      Power
      AC input voltage100 - 240 V
      AC input frequency50 - 60 Hz
      Power consumption (standby)1.5 W
      Power consumption (typical)155 W
      European Product Registry for Energy Labelling (EPREL) code431973
      Operational conditions
      Operating temperature (T-T)0 - 40 °C
      Storage temperature (T-T)-20 - 60 °C
      Weight & dimensions
      Height (without stand)749.4 mm
      Depth (without stand)68 mm
      Width (without stand)1271.5 mm
      Weight (without stand)41 kg
      Package width1400 mm
      Package depth245 mm
      Package height930 mm
      Package weight46.5 kg
      Packaging data
      Package width1400 mm
      Package depth245 mm
      Package height930 mm
      Package weight46.5 kg

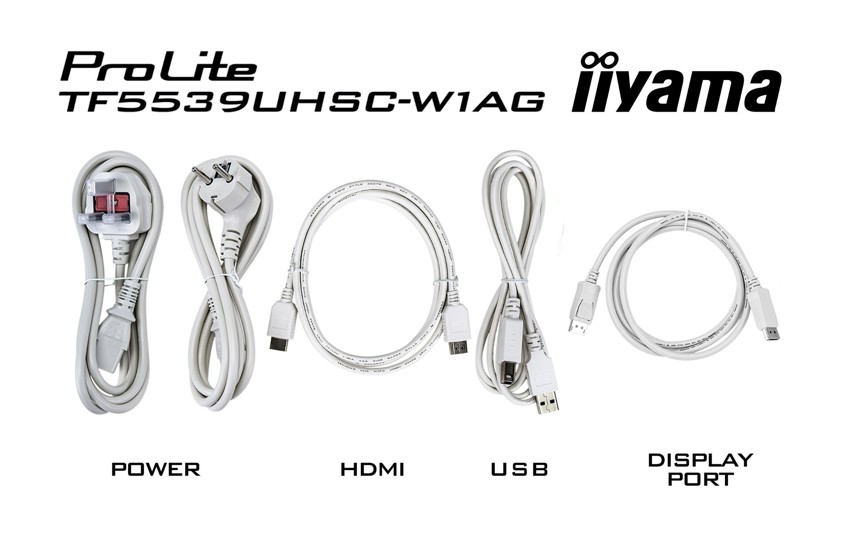

      Cables includedDisplayPort, HDMI, LAN (RJ-45), USB
      Packaging content
      Cables includedDisplayPort, HDMI, LAN (RJ-45), USB
      Sustainability
      European Product Registry for Energy Labelling (EPREL) code431973
      Other features
      Placement supportedHorizontal/Vertical
      Mean time between failures (MTBF)50000 h
      Ethernet LAN (RJ-45) ports1
      International Protection (IP) codeIP54
      Height (without stand)749.4 mm
      Depth (without stand)68 mm
      Width (without stand)1271.5 mm
      HDMIYes
      Surface hardness7H
      Touchscreen typeMulti-user
      TouchscreenYes
      Number of simultaneous touchpoints15
      Logistics data
      Harmonized System (HS) code85285210
