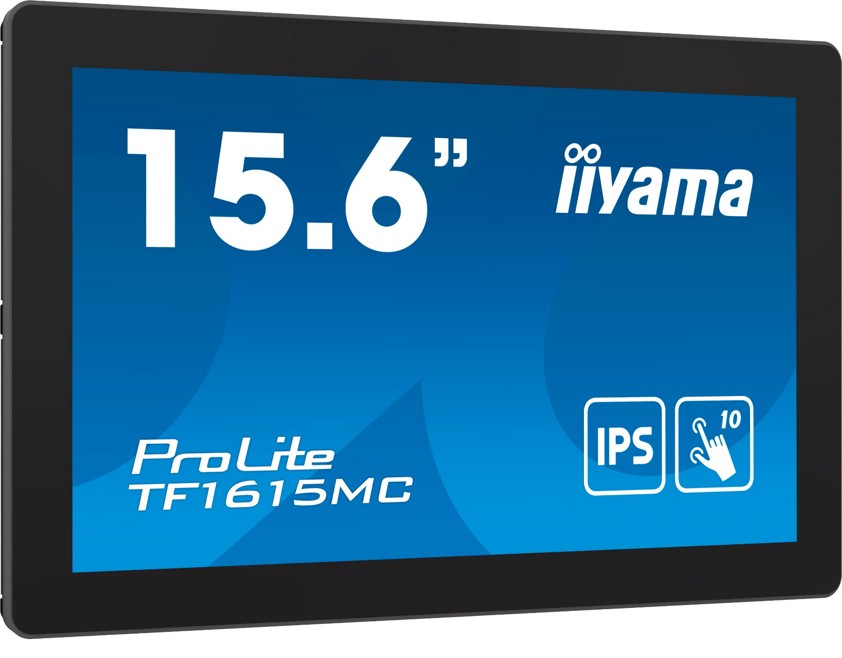

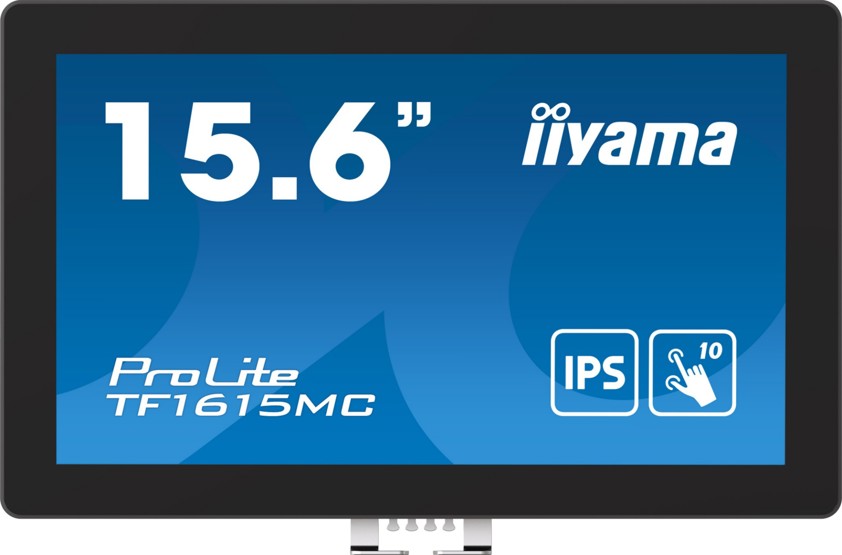

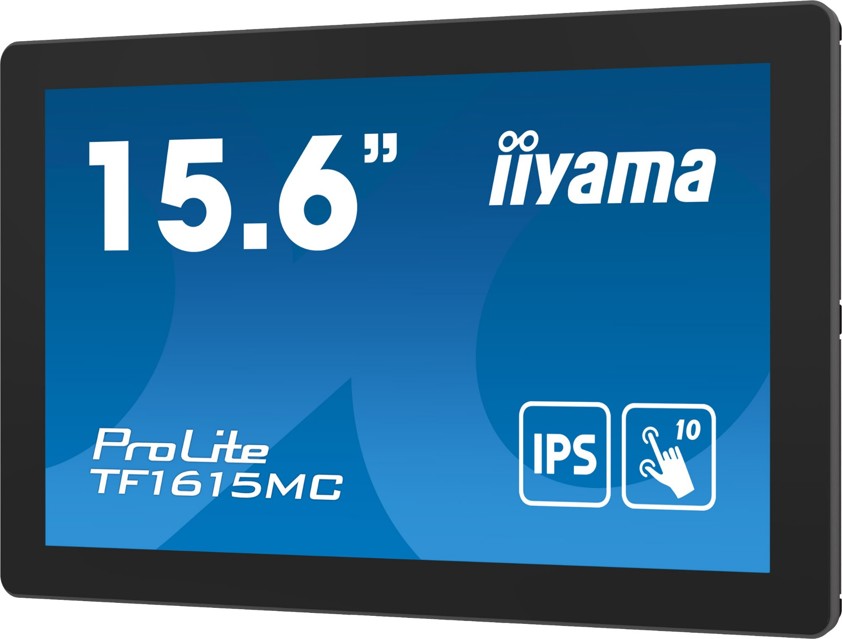

iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function
SKU: TF1615MC-B1£376.04 ex VAT
£451.25 inc VAT

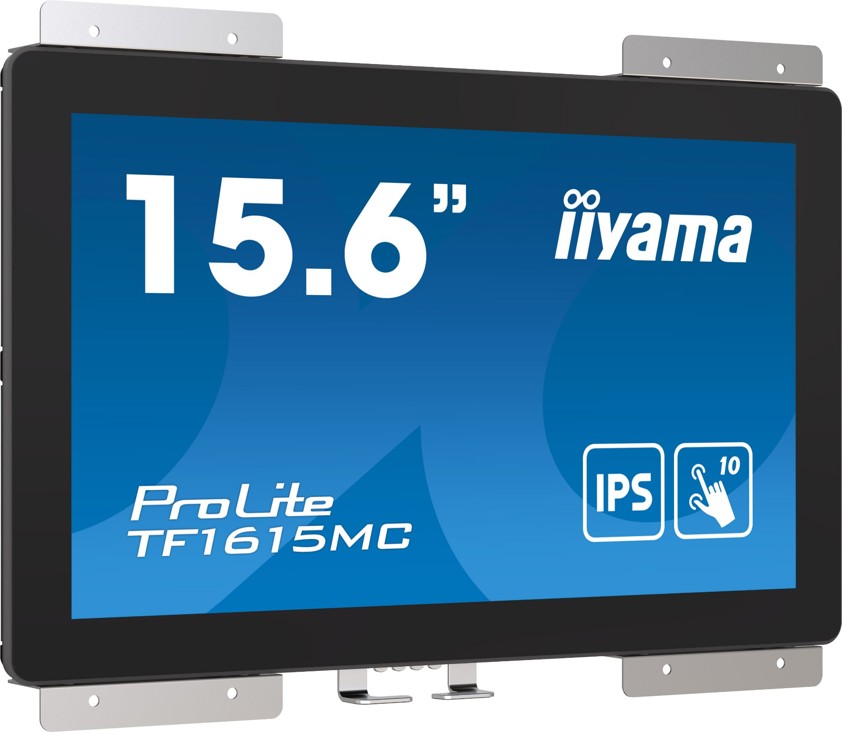

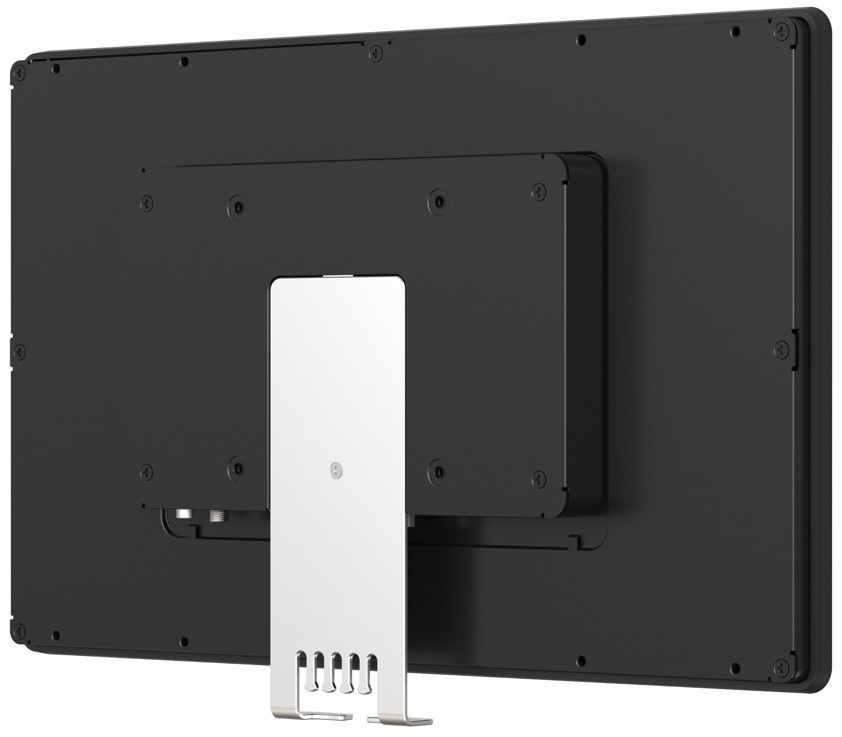

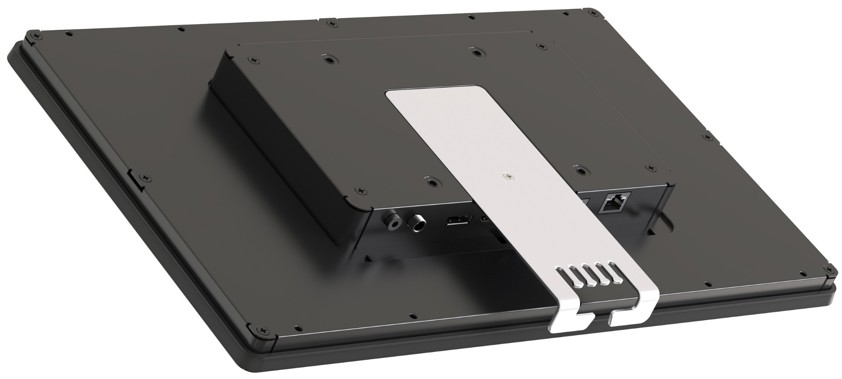

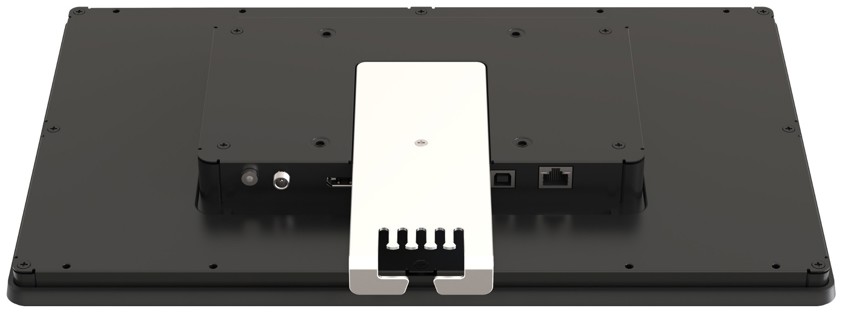

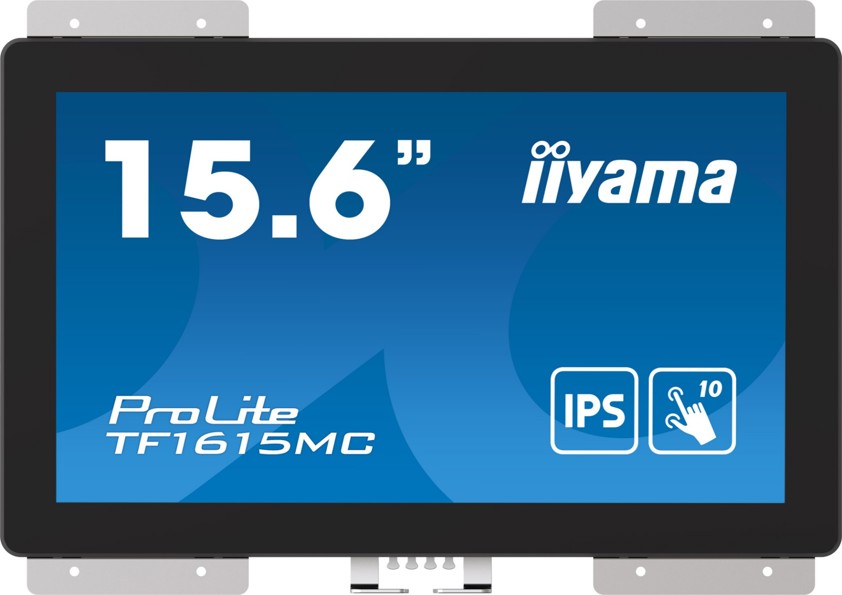

In stock- The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

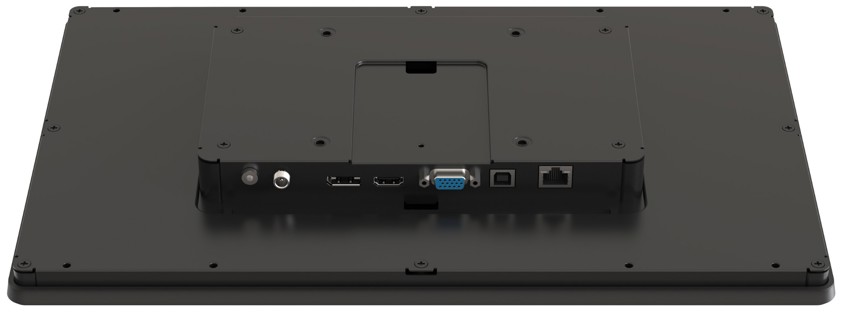

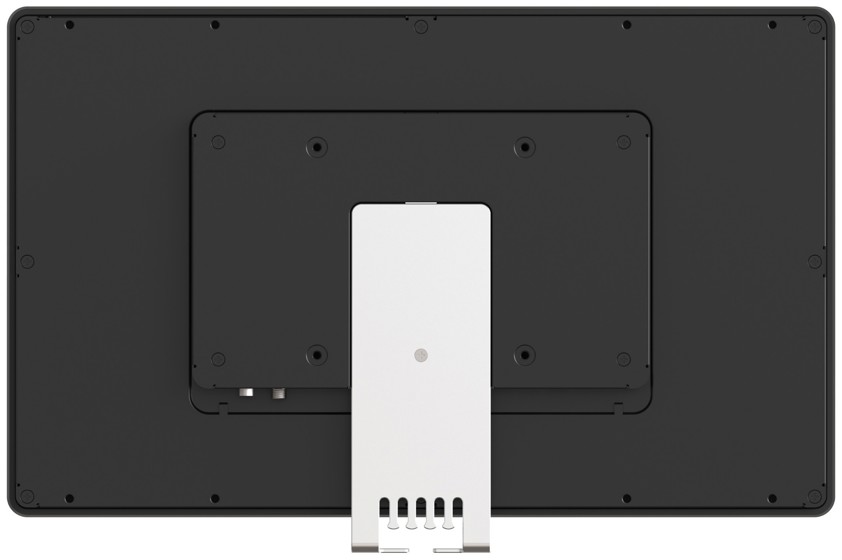

Display HDCP Yes Screen shape Flat Native aspect ratio 16:9 HD type Full HD Viewing angle, horizontal 178° Viewing angle, vertical 178° Pixel pitch 0.17925 x 0.17925 mm Horizontal scan range 31.5 - 67.5 kHz Aspect ratio 16:9 Display resolution 1920 x 1080 pixels Response time 25 ms Display diagonal 39.6 cm (15.6") Contrast ratio (typical) 1000:1 Display brightness (peak) 450 cd/m² Touchscreen Yes Number of simultaneous touchpoints 10 Panel type IPS Display diagonal (metric) 40 cm Touchscreen technology Capacitive Management features On Screen Display (OSD) Yes On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Design Market positioning Business Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA Product colour Black Ports & interfaces Built-in USB hub Yes Headphone out Yes VGA (D-Sub) ports quantity 1 DisplayPorts quantity 1 HDCP Yes HDMI Yes Technical details Height (without stand) 246 mm Depth (without stand) 42 mm Width (without stand) 398.5 mm HDMI Yes Product colour Black Power supply type External Touchscreen Yes Number of simultaneous touchpoints 10 Ergonomics VESA mounting Yes Panel mounting interface 100 x 100 mm On Screen Display (OSD) Yes On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Power Power supply type External Power consumption (standby) 1.5 W Power consumption (typical) 18 W Power consumption (off) 0.3 W Energy efficiency scale A to G Energy efficiency class (SDR) E Energy efficiency class (HDR) Not available Energy consumption (SDR) per 1000 hours 11 kWh European Product Registry for Energy Labelling (EPREL) code 1355204 Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensions Height (without stand) 246 mm Depth (without stand) 42 mm Width (without stand) 398.5 mm Weight (without stand) 2.5 kg Package width 470 mm Package depth 343 mm Package height 145 mm Package weight 4.3 kg Packaging data Package width 470 mm Package depth 343 mm Package height 145 mm Package weight 4.3 kg Package type Box Quick start guide Yes Cables included DC, DisplayPort, HDMI Power adapter included Yes Packaging content Quick start guide Yes Cables included DC, DisplayPort, HDMI Power adapter included Yes Sustainability European Product Registry for Energy Labelling (EPREL) code 1355204 Other features Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA Height (without stand) 246 mm Depth (without stand) 42 mm Width (without stand) 398.5 mm Quick start guide Yes HDMI Yes Energy efficiency scale A to G Power supply type External Display brightness (peak) 450 cd/m² Touchscreen Yes Number of simultaneous touchpoints 10 Package type Box Certificates Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
