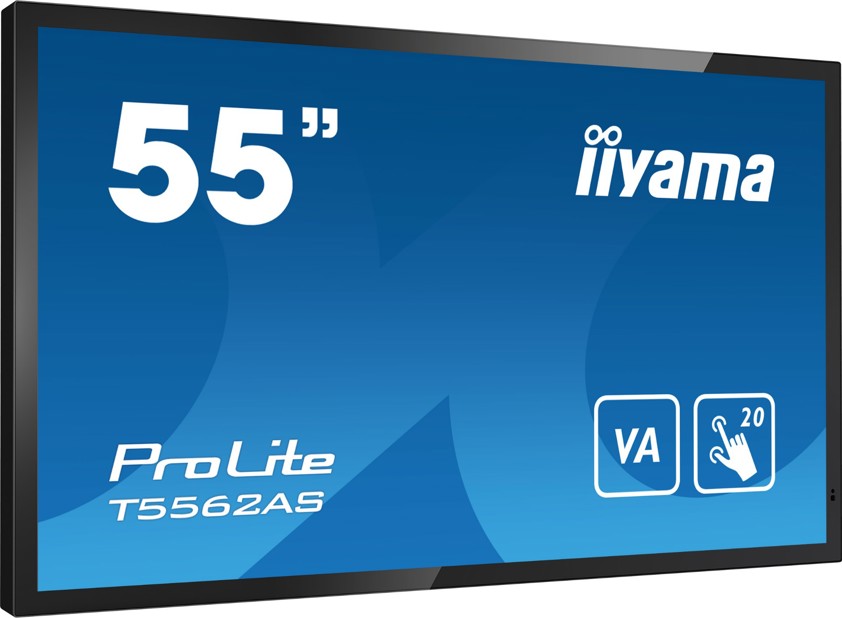

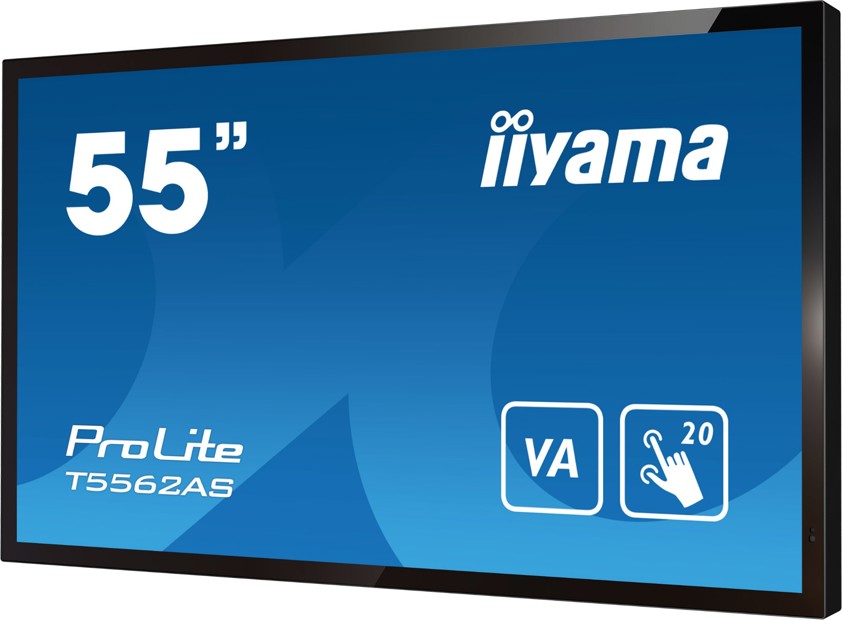

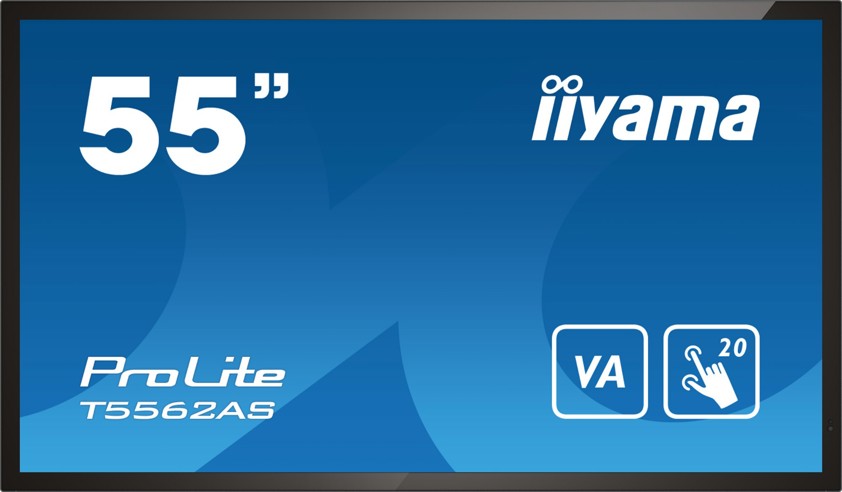

iiyama T5562AS-B1 Signage Display Interactive flat panel 138.7 cm (54.6") VA 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 8.0 24/7

SKU: T5562AS-B1
£1,302.16 ex VAT
£1,562.59 inc VAT
Product out of stockOut of stock

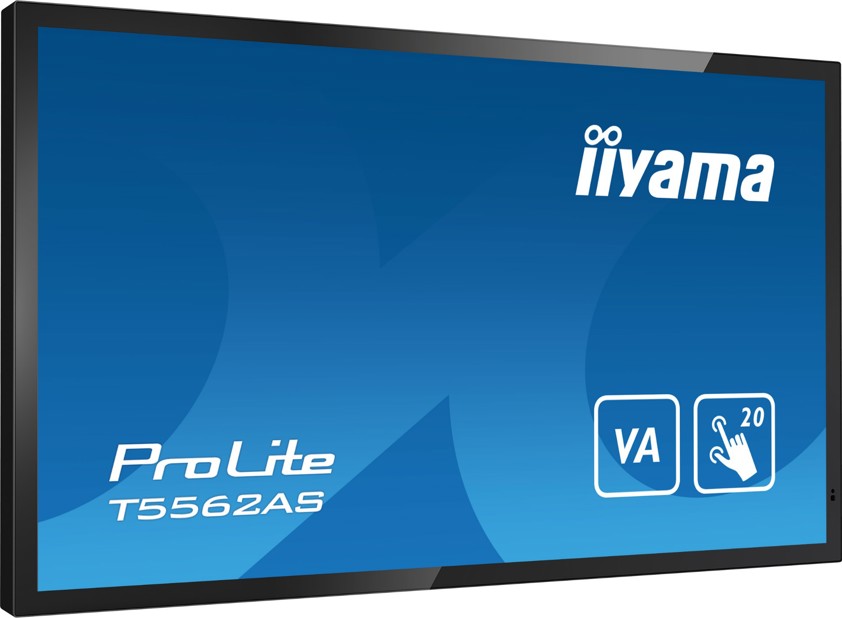

  • PROLITE T5562AS-B1
    All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing.

    Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

    The refined design of the T5562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

    RETAIL INSTALLATIONS
    The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make the 62 Series displays one of the most adaptable Touchscreens solutions around.

    HUDDLE SPACES
    Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

    SIGNAL FAILOVER
    FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

    ANDROID OS
    Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

    TOUCH TECHNOLOGY - CAPACITIVE
    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
  • Display
    Display number of colours1.07 billion colours
    Number of simultaneous touchpoints20
    TouchscreenYes
    Active display area (W x H)1209.6 x 680.4 mm
    Display technologyVA
    Display diagonal138.7 cm (54.6")
    Display resolution3840 x 2160 pixels
    Display brightness500 cd/m²
    HD type4K Ultra HD
    Response time8 ms
    Contrast ratio (typical)5000:1
    Viewing angle, horizontal178°
    Viewing angle, vertical178°
    Pixel pitch0.315 x 0.315 mm
    Display diagonal (metric)138 cm
    Native aspect ratio16:9
    Horizontal scan range30 - 135 kHz
    Touchscreen technologyCapacitive
    RGB colour spaceNTSC
    Multi-touchYes

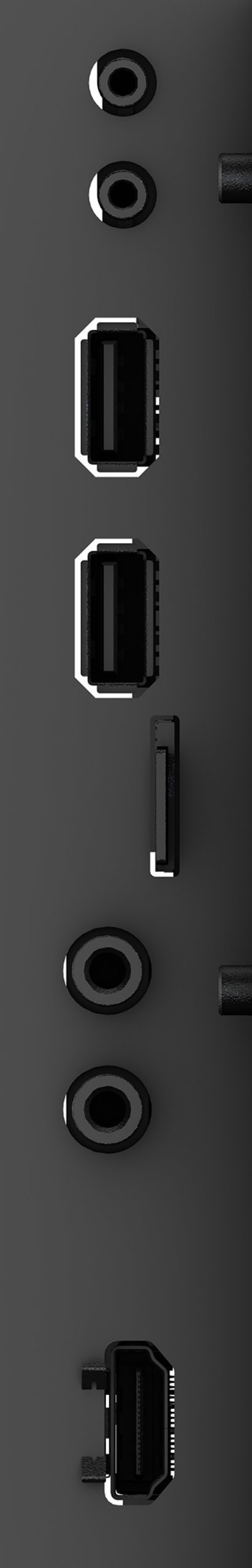

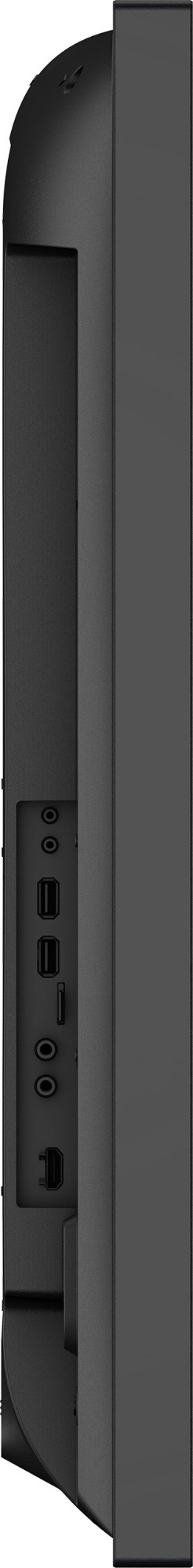

    Ports & interfaces
    USB portYes
    RS-232CYes
    Wi-FiNo
    DisplayPorts quantity0
    Ethernet LANYes
    HDMI ports quantity3
    DVI portNo
    Ethernet LAN (RJ-45) ports1
    USB version2.0
    USB ports quantity2
    Audio
    Number of built-in speakers2
    RMS rated power20 W
    Built-in speaker(s)Yes
    Design
    Product designInteractive flat panel
    Placement supportedIndoor

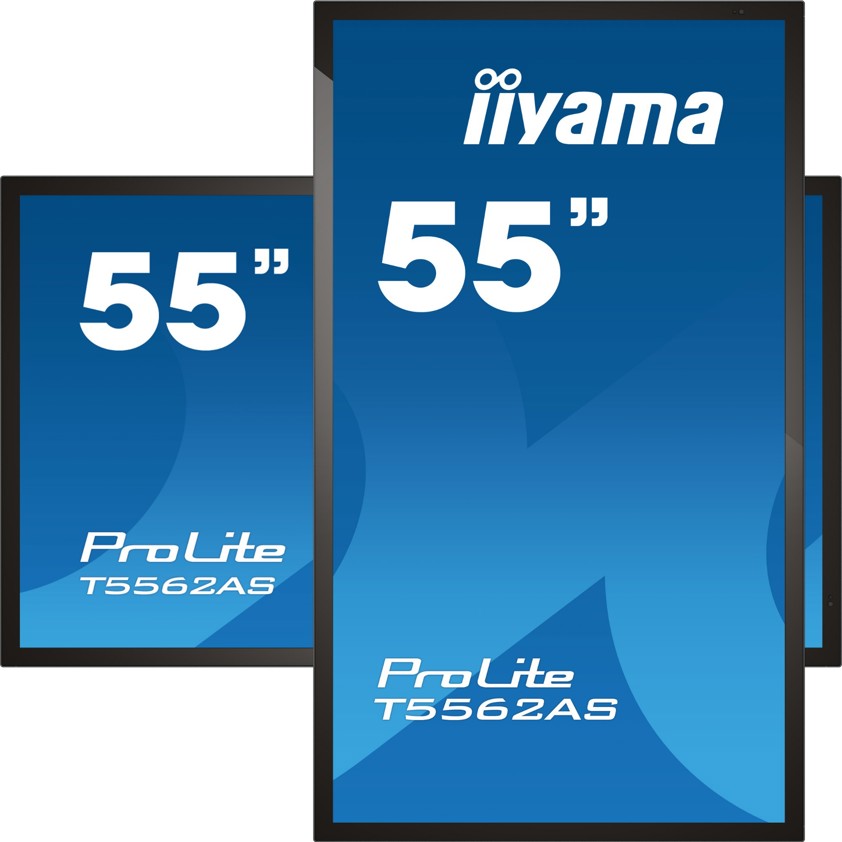

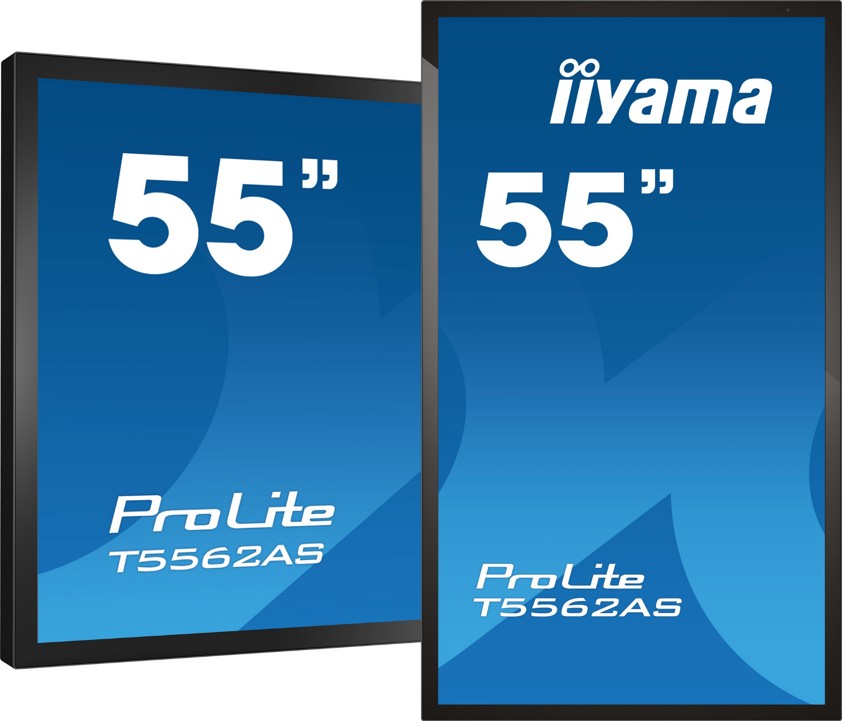

    OrientationHorizontal/Vertical
    Product colourBlack

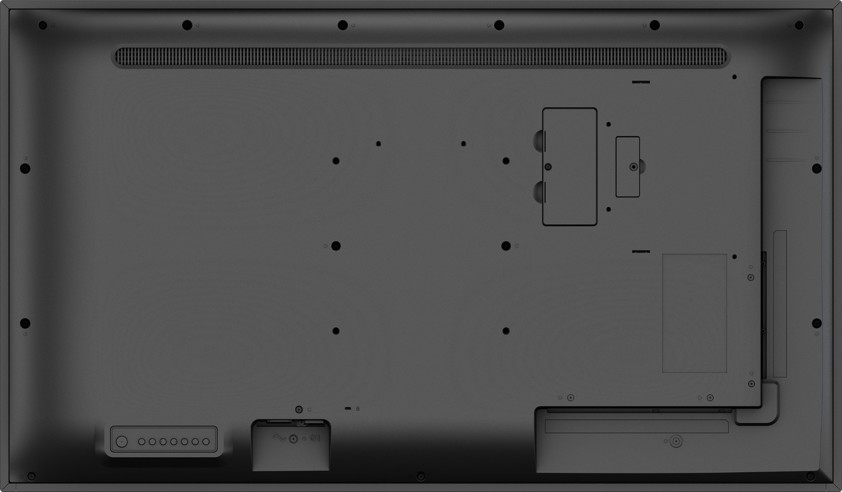

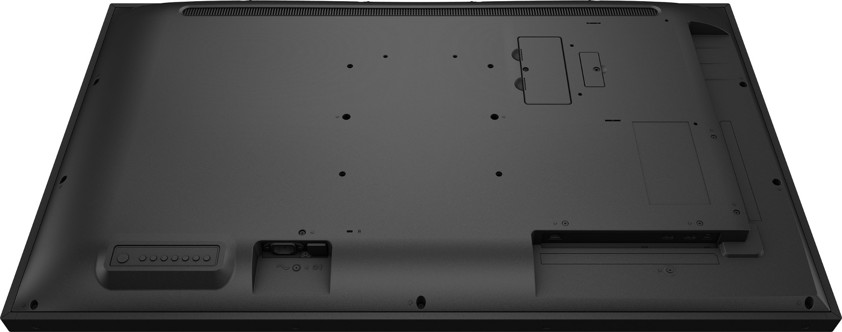

    Panel mounting interface400 x 400 mm
    VESA mountingYes
    Performance
    PurposeUniversal
    Operating hours (hours/days)24/7
    Mean time between failures (MTBF)50000 h
    On Screen Display (OSD) languagesGerman, Dutch, English, Spanish, French, Japanese, Polish, Russian
    On Screen Display (OSD)Yes
    Number of OSD languages8
    HDCPYes
    HDCP version2.2
    Wi-FiNo
    Power
    Power consumption (off)0.3 W
    Power consumption (typical)150 W
    Power consumption (standby)1.5 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Computer system
    Computer systemYes
    Operating system installedAndroid 8.0
    Internal memory2 GB
    Internal storage capacity16 GB
    Built-in processorYes
    On-board graphics card modelARM Mali-G51
    Weight & dimensions
    Width1264 mm
    Depth65 mm
    Height734 mm
    Weight23.4 kg
    Packaging data
    Package width1410 mm
    Package depth203 mm
    Package height891 mm
    Package weight29.8 kg
    Remote control includedYes
    Cables includedAC, HDMI, RS-232, USB
    Packaging content
    Remote control includedYes
    Cables includedAC, HDMI, RS-232, USB
    Operational conditions
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Technical details
    VESA mountingYes
    Number of simultaneous touchpoints20
    Sustainability certificatesErP
    Pallet net width142 cm
    Pallet net height13 cm
    Pallet net length104 cm
    Compliance certificatesCE, REACH, RoHS, WEEE
    Thin Client
    Operating system installedAndroid 8.0
    Internal memory2 GB
    Internal storage capacity16 GB
    Other features
    Number of simultaneous touchpoints20
    Wi-FiNo
    Mean time between failures (MTBF)50000 h
    Display technologyVA
