THE POWER OF IMAGING The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or self check-out touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers. ENHANCING THE CUSTOMER EXPERIENCE An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. LOSS PREVENTION Shrink reduction ranks high among retailers’ concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS. ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, IBM™ Director and Wavelink™ Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

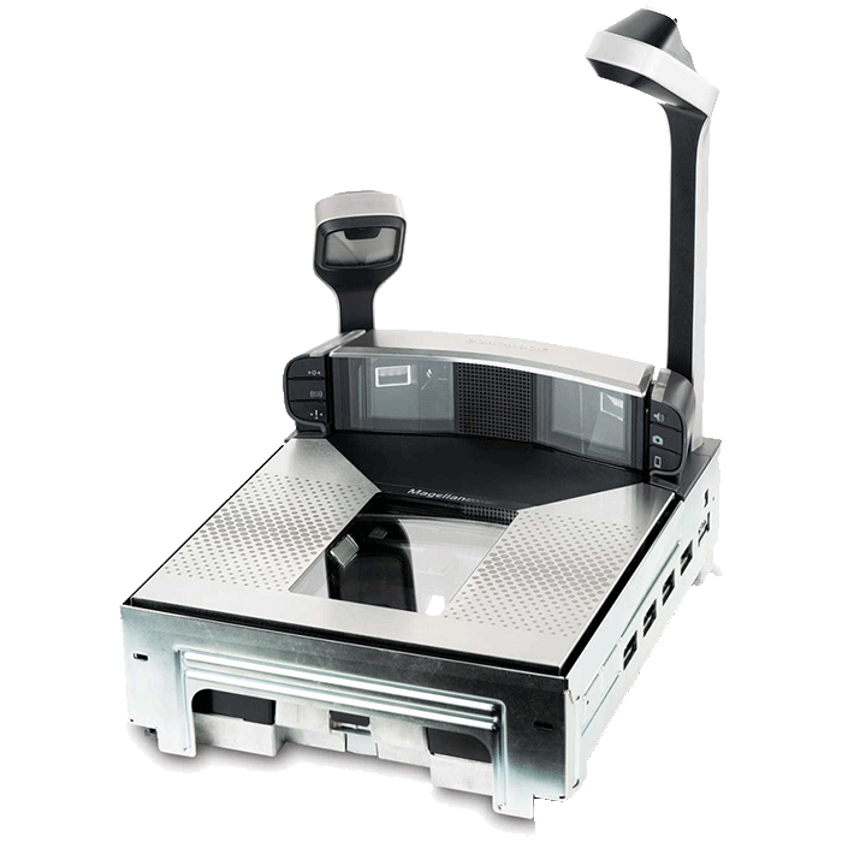

Datalogic Magellan 9800i Built-in bar code reader 1D/2D Laser Stainless steel
SKU: 9810210220-00761£977.42 ex VAT
£1,172.90 inc VAT
- Scanning - Type - Built-in bar code reader - Linear (1D) barcodes supported - GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, UPC-A, UPC-E - 2D (matrix & stacked) barcodes supported - Aztec Code, Data Matrix, Micro QR Code, QR Code - Sensor type - Laser - Scanner type - 1D/2D - Light levels (direct sunlight) - 0 - 86080 lx - Ports & interfaces - Connectivity technology - Wired - Standard interfaces - RS-232, USB - Performance - Built-in display - No - Product colour - Stainless steel - Certification - R.E.A.C.H. - EC1907/2006 - Image formats supported - BMP, JPEG - Light levels (direct sunlight) - 0 - 86080 lx - Design - Type - Built-in bar code reader - Product colour - Stainless steel - Certification - R.E.A.C.H. - EC1907/2006 - Power - Power source type - AC - Power consumption (typical) - 12 W - Input frequency - 50/60 Hz - Power consumption (standby) - 11 W - AC adapter output voltage - 100 - 240 V - Weight & dimensions - Width - 352 mm - Depth - 16 mm - Height - 68 mm - Technical details - Type - Built-in bar code reader - Built-in display - No - Product colour - Stainless steel - Certification - R.E.A.C.H. - EC1907/2006 - Harmonized System (HS) code - 84716070 - Operational conditions - Storage temperature (T-T) - -40 - 70 °C - Operating temperature (T-T) - 10 - 40 °C - Operating relative humidity (H-H) - 5 - 95% - Light levels (direct sunlight) - 0 - 86080 lx - Logistics data - Harmonized System (HS) code - 84716070
