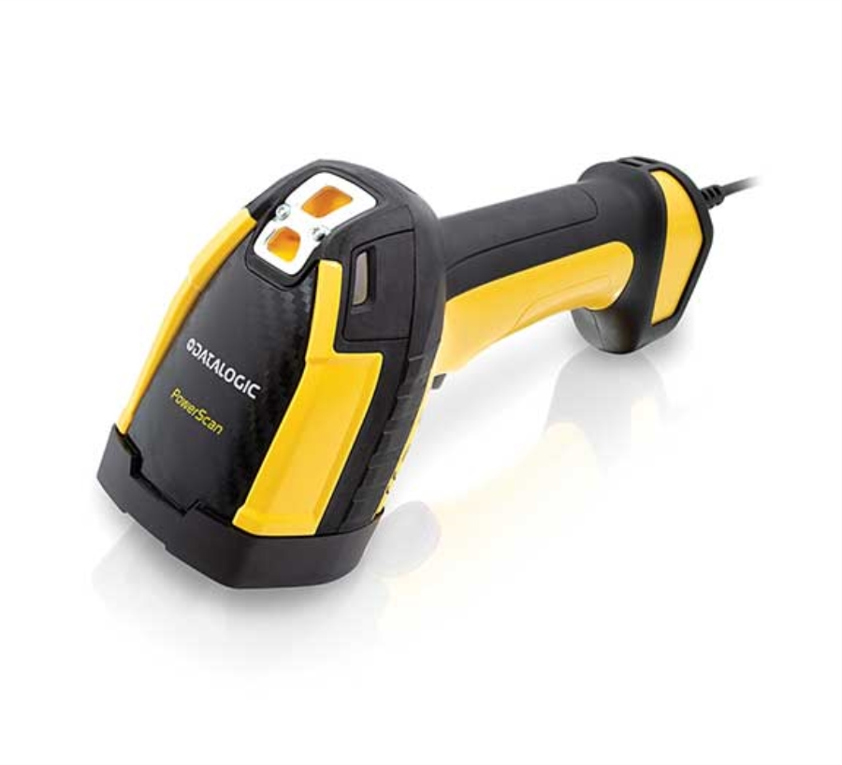

PowerScan PD9630-DC, Document Capture, Color sensor, USB Kit (Kit includes Scanner and USB Cable CAB-553) Ultra-rugged with new balanced ergonomics! The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Three optic options to fulfill any customer need The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications. The best feedback to the operator The PD9630 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses. Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
Datalogic PD9630-DCK1 barcode reader Handheld bar code reader 1D/2D Black, Yellow
SKU: PD9630-DCK1£348.81 ex VAT
£418.57 inc VAT
- Scanning - Type - Handheld bar code reader - Linear (1D) barcodes supported - China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E - 2D (matrix & stacked) barcodes supported - Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code - Yaw reading angle - -52 - 52° - Working distance - 20 cm - Wavelength - 630 nm - Tilt reading angle - 0 - 360° - Scanner type - 1D/2D - Pitch reading angle - -52 - 52° - Light levels (direct sunlight) - 0 - 100000 lx - Optical sensor resolution (W x H) - 1280 x 800 pixels - Ports & interfaces - Connectivity technology - Wired - Standard interfaces - USB - Performance - Protection features - Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant - LED indicators - Yes - International Protection (IP) code - IP65, IP67 - Product colour - Black, Yellow - Buzzer - Yes - Print contrast - 15% - Vibration function - Yes - Light levels (direct sunlight) - 0 - 100000 lx - Design - Type - Handheld bar code reader - Protection features - Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant - LED indicators - Yes - International Protection (IP) code - IP65, IP67 - Product colour - Black, Yellow - Power - Power consumption - 280 mA - Power source type - USB - Input voltage - 5 - 30 V - Weight & dimensions - Width - 79 mm - Depth - 140 mm - Height - 190 mm - Weight - 318 g - Technical details - Type - Handheld bar code reader - Protection features - Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant - LED indicators - Yes - International Protection (IP) code - IP65, IP67 - Product colour - Black, Yellow - Buzzer - Yes - Sustainability certificates - REACH, RoHS - Harmonized System (HS) code - 84716070 - Packaging data - Cables included - USB - Operational conditions - Storage temperature (T-T) - -40 - 70 °C - Operating temperature (T-T) - -20 - 50 °C - Operating relative humidity (H-H) - 0 - 95% - Light levels (direct sunlight) - 0 - 100000 lx - Packaging content - Cables included - USB
