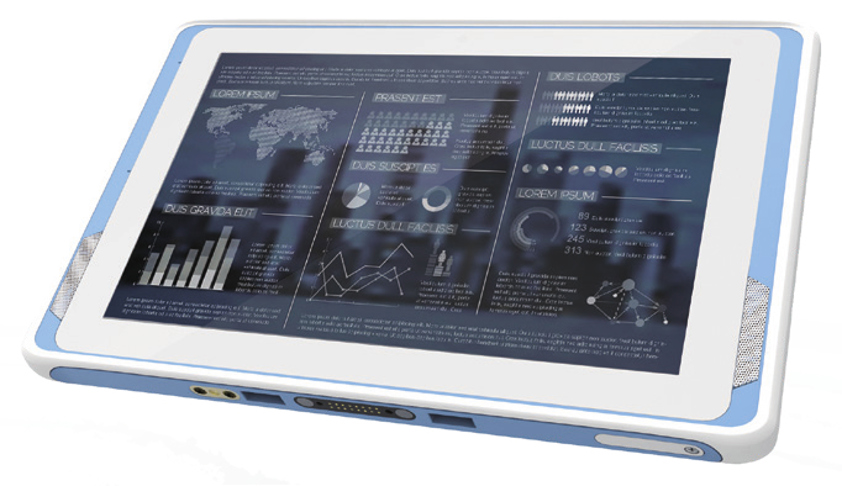

  • Advantech AIM-58CT-12101000 tablet Intel Atom® 64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Windows 10 IoT Enterprise Black

Advantech AIM-58CT-12101000 tablet Intel Atom® 64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Windows 10 IoT Enterprise Black

SKU: AIM-58CT-12101000
£1,293.56 ex VAT
£1,552.27 inc VAT
Product out of stockOut of stock
  • Advantech's AIM-58 is a medical-grade tablet that features a stylish appearance and advanced computing technologies to provide a superior device for mobile computing in healthcare environments.

  • Display
    Display resolution1920 x 1200 pixels
    Display technologyLCD
    Touch technologyMulti-touch
    Touchscreen typeCapacitive
    Display brightness380 cd/m²
    Display diagonal25.6 cm (10.1")
    Display glass typeCorning Glass
    HD typeFull HD
    Processor
    Tjunction90 °C
    Scenario Design Power (SDP)2 W
    Processor threads4
    Processor seriesIntel Atom x7 Series
    Processor package size17 x 17 mm
    Processor operating modes64-bit
    Processor lithography14 nm
    Processor codenameCherry Trail
    Processor codeSR2KG
    Processor cache typeL3
    Number of execution units16
    Conflict-Free processorYes
    Processor ARK ID93362
    PCI Express configurations2x1, 1x2
    Processor manufacturerIntel
    Processor boost frequency2.56 GHz
    Processor frequency1.6 GHz
    Processor modelx7-Z8750
    Processor cores4
    Processor cache2 MB
    Processor familyIntel Atom®
    Memory
    Internal memory4 GB
    Internal memory typeDDR3L-SDRAM
    Maximum internal memory8 GB
    Storage
    Storage mediaeMMC
    Internal storage capacity64 GB
    Card reader integratedYes
    Compatible memory cardsMicroSD (TransFlash)
    Audio
    Built-in speaker(s)Yes
    Number of built-in speakers2
    Built-in microphoneYes
    Speaker power2 W
    Camera
    Rear camera typeSingle camera
    Rear cameraYes
    Rear camera resolution (numeric)5 MP
    Front cameraYes
    Front camera resolution (numeric)2 MP
    Network
    Mobile network connectionNo
    Top Wi-Fi standardWi-Fi 5 (802.11ac)
    Near Field Communication (NFC)Yes
    Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
    BluetoothYes
    Bluetooth version4.1
    Ports & interfaces
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
    Combo headphone/mic portYes
    Micro HDMI ports quantity1
    Docking connectors quantity1
    Sensors
    AccelerometerYes
    Ambient light sensorYes
    Electronic compassYes
    Design
    International Protection (IP) codeIP65
    Device typeMobile tablet
    Form factorSlate
    Product colourBlack
    CertificationCE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, FCC ID/PTCRB/R&TTE/SRRC/TELEC, FCC15 Class B, CE Mark (DOC Class B), REACH
    Harmonized System (HS) code84713000
    Performance
    Operating system installedWindows 10 IoT Enterprise
    AccelerometerYes
    Ambient light sensorYes
    Electronic compassYes
    Barcode readerNo
    Technical details
    Device typeMobile tablet
    Intel® Wireless Display (Intel® WiDi)Yes
    Intel® Turbo Boost TechnologyNo
    Intel® Identity Protection Technology (Intel® IPT)Yes
    Near Field Communication (NFC)Yes
    Form factorSlate
    Product colourBlack
    Processor manufacturerIntel
    Compliance certificatesRoHS
    Software
    PlatformWindows
    Operating system installedWindows 10 IoT Enterprise
    Processor special features
    Intel Virtualization Technology (VT-x)Yes
    Intel Stable Image Platform Program (SIPP) version0.00
    Intel Stable Image Platform Program (SIPP)No
    Intel Secure Boot Technology version1.00
    Intel Secure BootYes
    Intel Identity Protection Technology version1.00
    Intel® AES New Instructions (Intel® AES-NI)Yes
    Intel 64Yes
    Embedded options availableNo
    Intel® Wireless Display (Intel® WiDi)Yes
    Intel® Turbo Boost TechnologyNo
    Intel® Identity Protection Technology (Intel® IPT)Yes
    Battery
    Battery capacity26 Wh
    Battery life (max)5.5 h
    Battery recharge time3 h
    Power
    AC adapter power65 W
    AC adapter input voltage100 - 240 V
    AC adapter frequency50 - 60 Hz
    AC adapter output voltage19 V
    Weight & dimensions
    Width280 mm
    Depth18.3 mm
    Height180.1 mm
    Weight980 g
    Certificates
    CertificationCE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, FCC ID/PTCRB/R&TTE/SRRC/TELEC, FCC15 Class B, CE Mark (DOC Class B), REACH
    Compliance certificatesRoHS
    Operational conditions
    Operating temperature (T-T)-10 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)10 - 95%
    Operating altitude0 - 3048 m
    Non-operating altitude0 - 12192 m
    Operating vibration1 G
    Operating shock20 G
    Non-operating shock50 G
    Logistics data
    Harmonized System (HS) code84713000
    Other features
    Processor ARK ID93362
    Processor manufacturerIntel
    Processor socketBGA 1380
    Processor familyIntel Atom®
    Harmonized System (HS) code84713000
