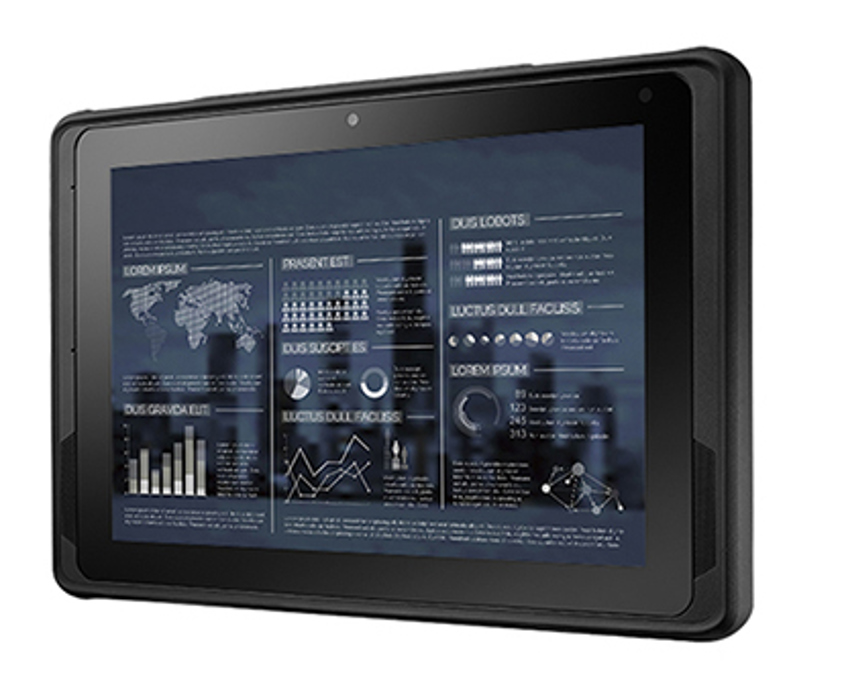

10.1", LPDDR3 4 GB, 64 GB, NFC, Wi-Fi/BT, LTE+GPS, 5MP & 2MP, Win 10 IoT Enterprise
Advantech AIM-68 4G LTE 64 GB 25.6 cm (10.1") Intel Atom® 4 GB Wi-Fi 5 (802.11ac) Windows 10 IoT Enterprise Black
SKU: AIM-68CT-C2105000£1,422.95 ex VAT
£1,707.53 inc VAT
Display Display resolution 1920 x 1200 pixels Display technology LCD Touch technology Multi-touch Touchscreen type Capacitive Display brightness 380 cd/m² Display diagonal 25.6 cm (10.1") Display glass type Corning Glass HD type Full HD Processor Tjunction 90 °C Scenario Design Power (SDP) 2 W Processor threads 4 Processor series Intel Atom x7 Series Processor package size 17 x 17 mm Processor operating modes 64-bit Processor lithography 14 nm Processor codename Cherry Trail Processor code SR2KG Processor cache type L3 Number of execution units 16 Conflict-Free processor Yes Processor ARK ID 93362 PCI Express configurations 2x1, 1x2 Processor manufacturer Intel Processor boost frequency 2.56 GHz Processor frequency 1.6 GHz Processor model x7-Z8750 Processor cores 4 Processor cache 2 MB Processor family Intel Atom® Memory Internal memory 4 GB Internal memory type LPDDR3-SDRAM Maximum internal memory 8 GB Storage Storage media eMMC Internal storage capacity 64 GB Card reader integrated Yes Compatible memory cards MicroSD (TransFlash) Graphics Graphics card family Intel Graphics card HD Graphics 5000 Audio Built-in speaker(s) Yes Number of built-in speakers 2 Built-in microphone Yes Camera Rear camera type Single camera Flash type LED Image stabilizer Yes Rear camera Yes Rear camera resolution (numeric) 5 MP Front camera Yes Front camera resolution (numeric) 2 MP Auto focus Yes Network Mobile network connection Yes Mobile network generation 4G Top Wi-Fi standard Wi-Fi 5 (802.11ac) 4G standard LTE WWAN Installed Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) Bluetooth Yes Bluetooth version 4.1 Ethernet LAN No Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 Headphone out Yes Combo headphone/mic port Yes Micro HDMI ports quantity 1 Microphone in Yes Navigation GLONASS Yes GPS (satellite) Yes Assisted GPS (A-GPS) Yes Sensors Accelerometer Yes Ambient light sensor Yes Electronic compass Yes Design International Protection (IP) code IP65 Device type Mobile tablet Form factor Slate Product colour Black Certification FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI Harmonized System (HS) code 84713000 Performance Operating system installed Windows 10 IoT Enterprise Position location Yes GLONASS Yes GPS (satellite) Yes Assisted GPS (A-GPS) Yes Accelerometer Yes Ambient light sensor Yes Electronic compass Yes BeiDou Yes Technical details Device type Mobile tablet Intel® Wireless Display (Intel® WiDi) Yes Intel® Turbo Boost Technology No Intel® Identity Protection Technology (Intel® IPT) Yes WWAN Installed Form factor Slate Product colour Black Processor manufacturer Intel Software Platform Windows Operating system installed Windows 10 IoT Enterprise Processor special features Intel Virtualization Technology (VT-x) Yes Intel Stable Image Platform Program (SIPP) version 0.00 Intel Stable Image Platform Program (SIPP) No Intel Secure Boot Technology version 1.00 Intel Secure Boot Yes Intel Identity Protection Technology version 1.00 Intel® AES New Instructions (Intel® AES-NI) Yes Intel 64 Yes Embedded options available No Intel® Wireless Display (Intel® WiDi) Yes Intel® Turbo Boost Technology No Intel® Identity Protection Technology (Intel® IPT) Yes Battery Battery voltage 10.8 V Battery capacity 26 Wh Battery life (max) 5.5 h Battery recharge time 3 h Power AC adapter power 65 W AC adapter input voltage 100 - 240 V AC adapter frequency 50 - 60 Hz AC adapter output voltage 19 V Weight & dimensions Width 280 mm Depth 18.3 mm Height 180.1 mm Weight 980 g Packaging content AC adapter included Yes Certificates Certification FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI Operational conditions Operating temperature (T-T) -10 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 10 - 95% Operating altitude 0 - 3048 m Non-operating altitude 0 - 12192 m Logistics data Harmonized System (HS) code 84713000 Other features Processor ARK ID 93362 Processor manufacturer Intel Processor socket BGA 1380 Processor family Intel Atom® Harmonized System (HS) code 84713000 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
