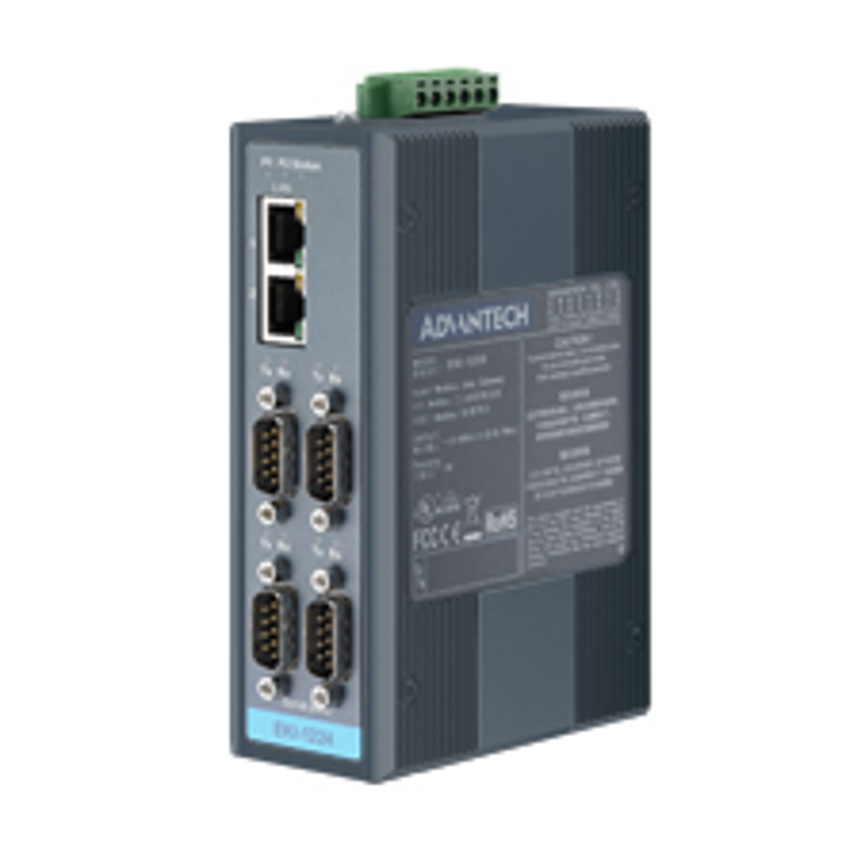

    Advantech EKI-1224-CE gateway/controller

    SKU: EKI-1224-CE
    £590.01 ex VAT
    £708.01 inc VAT
    Product out of stockOut of stock

    • 4-port Modbus Gateway

      The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.

      Show more
    • Design
      LED indicatorsPower
      CertificationCE, FCC
      Mounting typeDIN-rail
      Product colourBlack
      Protocols
      Supported protocolsModbus RTU, Modbus TCP, Modbus ASCII
      Network
      Cabling technology10/100Base-T(X)
      Ports & interfaces
      Ethernet LAN (RJ-45) ports2
      I/O ports2 x RJ-45 4 x RS-232/422/485
      Power
      Power consumption (typical)6.3 W
      Software
      Compatible operating systems32-bit/64-bit Windows XP/Vista/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2, Windows CE 5.0, Linux
      Weight & dimensions
      Weight668 g
      Dimensions (WxDxH)55 x 95 x 140 mm
      Operational conditions
      Operating temperature (T-T)-10 - 60 °C
      Storage temperature (T-T)-20 - 80 °C
      Operating relative humidity (H-H)5 - 95%
      Indication
      LED indicatorsPower
      Certificates
      CertificationCE, FCC
      Performance
      CertificationCE, FCC
      Mounting typeDIN-rail
      Product colourBlack
