HIT-W153 is an innovative product in the HIT-series, featuring a 43mm thin body enclosure, USB 3.0, 5 megapixel camera, and dual isolated Ethernet, which lets hospitals separate and manage internal and external network traffic. The HIT-W153 also features a dedicated audio codec for our background noise-canceling handset to guarantee the best audio quality for calls to nurse stations. The available nurse call button and the LED indicator can be easily linked to existing nurse call systems in hospitals, and can be operated independently, even when the system is off. HIT-W153 is ideal for applications in hospitals, such as bedside information terminals, IP nurse call stations, and treatment centers. It can also be used as an HMI interface for medical equipment.

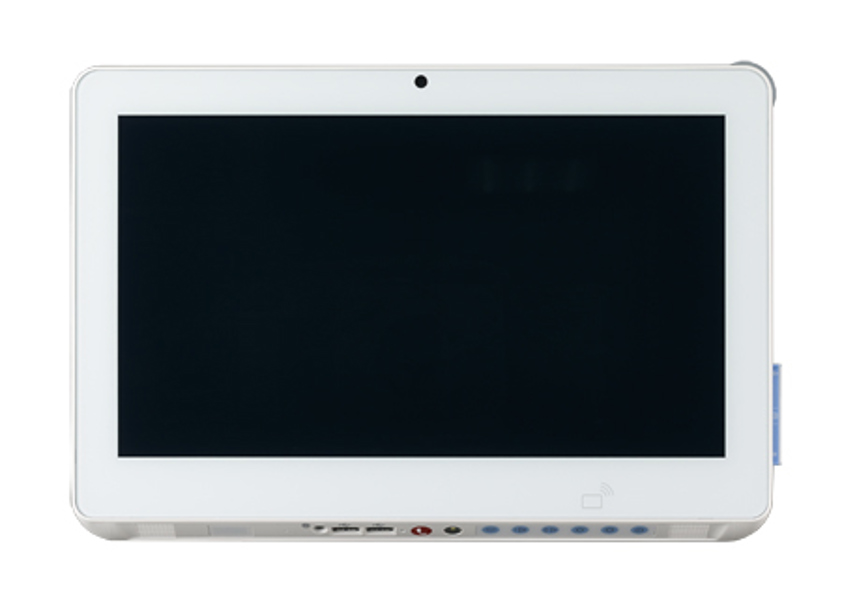

Advantech HIT-W153 Intel® Pentium® N4200 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 64 GB SSD Windows 10 IoT Enterprise Wi-Fi 5 (802.11ac) White
SKU: HIT-W153AP-ATW1E£1,518.12 ex VAT
£1,821.75 inc VAT
Out of stockDisplay HD type Full HD Panel type TFT Display diagonal 39.6 cm (15.6") Display resolution 1920 x 1080 pixels Touchscreen Yes Display brightness 425 cd/m² Processor Processor operating modes 64-bit Processor lithography 14 nm Processor codename Apollo Lake Maximum internal memory supported by processor 8 GB Memory types supported by processor DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM Memory clock speeds supported by processor 1866,2400 MHz Tjunction 105 °C Thermal Design Power (TDP) 6 W Processor series Intel Pentium Processor N4000 Series for Mobile PCI Express configurations 1x2, 1x2+2x1 Maximum number of PCI Express lanes 6 Processor cache type L2 Scenario Design Power (SDP) 4 W Conflict-Free processor Yes Processor frequency 1.1 GHz Processor boost frequency 2.5 GHz Processor family Intel® Pentium® Processor model N4200 Processor cores 4 Processor threads 4 Processor cache 2 MB Processor socket BGA 1296 Processor manufacturer Intel PCI Express slots version 2.0 Memory Internal memory 4 GB Memory layout (slots x size) 1 x 4 GB Maximum internal memory 8 GB Internal memory type DDR4-SDRAM Memory slots 1 Hard drive Number of storage drives installed 1 Storage media SSD Total storage capacity 64 GB Storage Number of storage drives installed 1 Storage media SSD Total storage capacity 64 GB SSD capacity 64 GB Number of SSDs installed 1 SSD form factor M.2 Total SSDs capacity 64 GB Graphics Discrete graphics card No On-board graphics card burst frequency 750 MHz On-board graphics card base frequency 200 MHz Maximum on-board graphics card memory 8 GB Number of displays supported (on-board graphics) 3 Number of execution units 18 On-board graphics card ID 0x5A84 Discrete graphics card model Not available On-board graphics card model Intel® HD Graphics 505 On-board GPU manufacturer Intel Audio Number of speakers 2 Built-in speaker(s) Yes RMS rated power 6 W Built-in microphone Yes Camera Built-in camera Yes Total megapixels 5 MP Network Top Wi-Fi standard Wi-Fi 5 (802.11ac) Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Bluetooth Yes Bluetooth version 4.1 Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 2.0 ports quantity 2 Ethernet LAN (RJ-45) ports 2 Technical details Intel® High Definition Audio (Intel® HD Audio) Yes Intel® Wireless Display (Intel® WiDi) No Intel® Small Business Advantage (Intel® SBA) No Product type All-in-One PC Intel® Turbo Boost Technology No Intel Smart Connect Technology No Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Hyper Threading Technology (Intel® HT Technology) No Intel® Anti-Theft Technology (Intel® AT) No Intel® Smart Response Technology No Product colour White Design Product colour White Panel mounting interface 75 x 75,100 x 100 mm VESA mounting Yes Performance Market positioning Medicine Product type All-in-One PC Software Operating system installed Windows 10 IoT Enterprise Processor special features Enhanced Intel SpeedStep Technology Yes Intel® Quick Sync Video Technology Yes Intel® InTru™ 3D Technology No Intel® Insider™ No Intel Clear Video Technology Yes Intel® Clear Video HD Technology (Intel® CVT HD) Yes Intel® OS Guard Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Trusted Execution Technology No Intel Stable Image Platform Program (SIPP) No Intel® Secure Key Yes Intel Enhanced Halt State Yes Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Yes Intel® AES New Instructions (Intel® AES-NI) Yes UART Yes Thermal Monitoring Technologies Yes Processor package size 24 x 31 mm Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel 64 Yes Idle States Yes Execute Disable Bit Yes Embedded options available No CPU configuration (max) 1 Intel Secure Boot Yes Intel Virtualization Technology (VT-x) Yes Intel Stable Image Platform Program (SIPP) version 0.00 Intel Smart Response Technology version 0.00 Intel Smart Connect Technology version 0.00 Intel Small Business Advantage (SBA) version 0.00 Intel Secure Key Technology version 1.00 Intel Secure Boot Technology version 1.00 Intel Rapid Storage Technology No Intel Identity Protection Technology version 1.00 Processor ARK ID 95592 Intel® High Definition Audio (Intel® HD Audio) Yes Intel® Wireless Display (Intel® WiDi) No Intel® Small Business Advantage (Intel® SBA) No Intel® Turbo Boost Technology No Intel Smart Connect Technology No Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Hyper Threading Technology (Intel® HT Technology) No Intel® Anti-Theft Technology (Intel® AT) No Intel® Smart Response Technology No Power AC adapter input voltage 100 - 240 V AC adapter output voltage 47 - 63 V Multimedia Built-in camera Yes Total megapixels 5 MP Weight & dimensions Package weight 4.7 kg Width (with stand) 400.1 mm Depth (with stand) 43 mm Height (with stand) 273 mm Weight (with stand) 3.2 kg Packaging data Package weight 4.7 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Logistics data Harmonized System (HS) code 84713000 Other features SSD capacity 64 GB Processor socket BGA 1296 Processor manufacturer Intel PCI Express slots version 2.0 Number of SSDs installed 1 Harmonized System (HS) code 84713000 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
