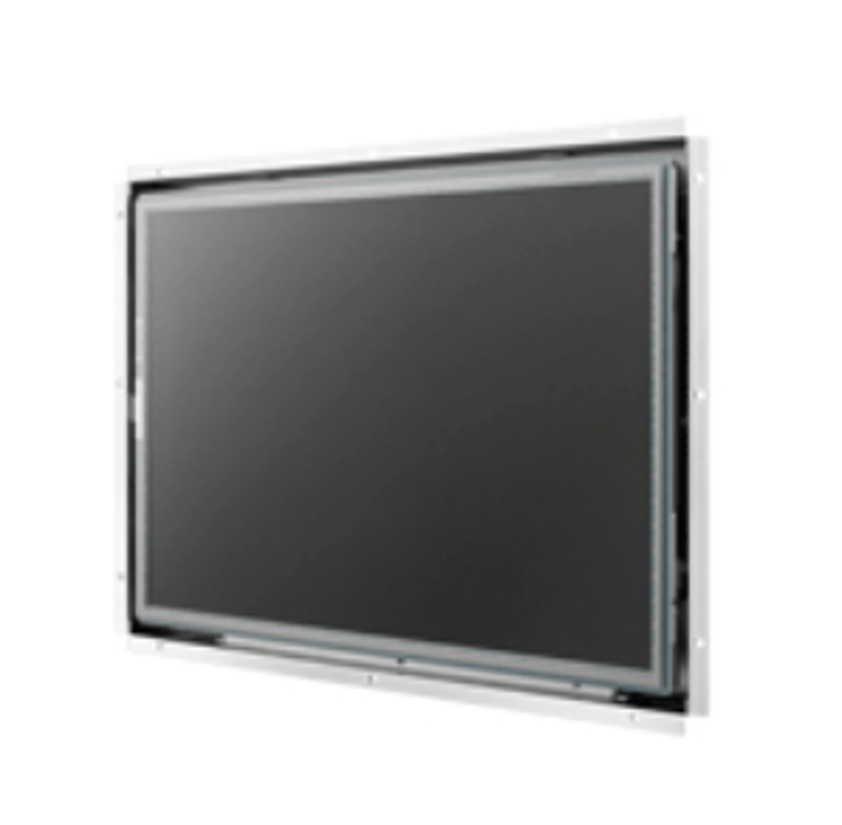

    Advantech IDS-3112R-45SVA1E LED display 30.7 cm (12.1") 800 x 600 pixels SVGA LCD Touchscreen Black

    SKU: IDS-3112R-45SVA1E
    £517.72 ex VAT
    £621.27 inc VAT
    Product out of stockOut of stock

    • The Advantech IDS-3112 Open Frame Monitor Series offer ultra slim design supporting a 12.1" 1024 x 768 and 800 x 600 pixels TFT LCD screen, with -20 ~ 60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.

      Show more
    • Audio
      Built-in speaker(s)No
      Performance
      Built-in speaker(s)No
      Built-in cameraNo
      AMD FreeSyncNo
      NVIDIA G-SYNCNo
      Display
      Display brightness (typical)450 cd/m²
      Screen shapeFlat
      Display number of colours16.2 million colours
      HD typeSVGA
      Display technologyLCD
      Viewing angle, horizontal160°
      Viewing angle, vertical140°
      Backlight typeLED
      Display resolution800 x 600 pixels
      Response time35 ms
      Display diagonal30.7 cm (12.1")
      Contrast ratio (typical)700:1
      Surface hardness3H
      TouchscreenYes
      Panel typeTFT
      Touchscreen technologyResistive
      Management features
      On Screen Display (OSD)Yes
      Multimedia
      Built-in speaker(s)No
      Built-in cameraNo
      Design
      Market positioningIndustrial
      Product colourBlack
      Camera
      Built-in cameraNo
      Ports & interfaces
      Built-in USB hubNo
      Headphone outNo
      DVI portYes
      DC-in jackYes
      VGA (D-Sub) ports quantity1
      HDMINo
      USB Touch ports quantity1
      USB Touch portYes
      Technical details
      Height (without stand)252 mm
      Depth (without stand)33.6 mm
      Width (without stand)320 mm
      HDMINo
      Product colourBlack
      Sustainability complianceYes
      Compliance certificatesCCC, CE, Federal Communications Commission (FCC), RoHS
      Power supply typeExternal
      Surface hardness3H
      TouchscreenYes
      Ergonomics
      VESA mountingYes
      On Screen Display (OSD)Yes
      Height adjustmentNo
      Power
      Power supply typeExternal
      AC input voltage100 - 240 V
      AC input frequency50/60 Hz
      AC adapter output voltage12 V
      Energy efficiency class (SDR)Not available
      Energy efficiency class (HDR)Not available
      Operational conditions
      Operating temperature (T-T)-20 - 60 °C
      Storage temperature (T-T)-30 - 70 °C
      Operating relative humidity (H-H)5 - 95%
      Weight & dimensions
      Height (without stand)252 mm
      Depth (without stand)33.6 mm
      Width (without stand)320 mm
      Weight (without stand)2.18 kg
      Sustainability
      Sustainability complianceYes
      Other features
      Height (without stand)252 mm
      Depth (without stand)33.6 mm
      Width (without stand)320 mm
      HDMINo
      Surface hardness3H
      Power supply typeExternal
      TouchscreenYes
