    • Advantech IDS-3210EG-23SVA1E Signage Display 26.4 cm (10.4") LCD 230 cd/m² SVGA Black Touchscreen

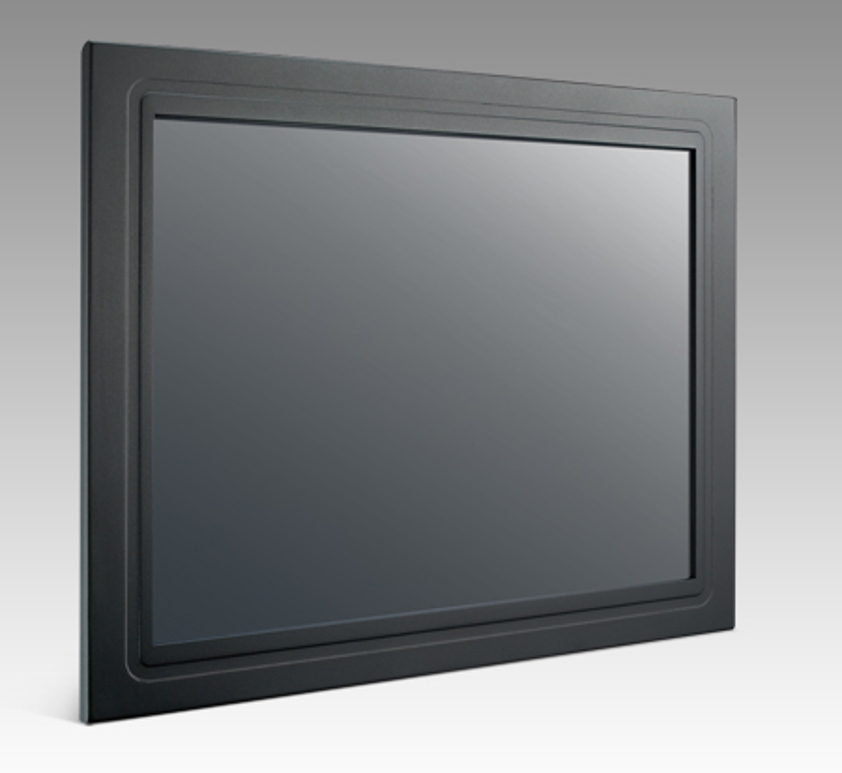

    Advantech IDS-3210EG-23SVA1E Signage Display 26.4 cm (10.4") LCD 230 cd/m² SVGA Black Touchscreen

    SKU: IDS-3210EG-23SVA1E
    £366.68 ex VAT
    £440.01 inc VAT
    Product out of stockOut of stock

    • The Advantech IDS-3210 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated
      frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.

      Show more
    • Display
      LED backlightYes
      Display number of colours16.2 million colours
      Number of simultaneous touchpoints5
      TouchscreenYes
      Display technologyLCD
      Display diagonal26.4 cm (10.4")
      Display resolution800 x 600 pixels
      Display brightness230 cd/m²
      HD typeSVGA
      Response time35 ms
      Contrast ratio (typical)500:1
      Viewing angle, horizontal160°
      Viewing angle, vertical130°
      Panel life30000 h
      Transparency90%
      Touchscreen technologyResistive
      Ports & interfaces
      USB portNo
      Wi-FiNo
      DC-in jackYes
      Ethernet LANNo
      DVI portNo
      VGA (D-Sub) input ports1
      Audio
      Built-in speaker(s)No
      Design
      Placement supportedIndoor
      Product colourBlack
      CertificationCE, FCC, CCC
      VESA mountingYes
      Mounting typeWall
      Performance
      PurposeCommercial
      On Screen Display (OSD)Yes
      Wi-FiNo
      Panel life30000 h
      Power
      Power consumption (typical)36 W
      AC input voltage100 - 240 V
      Input voltage+12 V
      Weight & dimensions
      Width290.2 mm
      Depth35.1 mm
      Height237.6 mm
      Weight1.45 kg
      Operational conditions
      Operating temperature (T-T)0 - 45 °C
      Operating relative humidity (H-H)10 - 90%
      Storage temperature (T-T)-20 - 60 °C
      Certificates
      CertificationCE, FCC, CCC
      Technical details
      VESA mountingYes
      Number of simultaneous touchpoints5
      Compliance certificatesCCC, CE
      Other features
      Number of simultaneous touchpoints5
      Wi-FiNo
      Display technologyLCD
      DC-in jackYes
      Input voltage+12 V
