  • Advantech SQF-S25 830 64 GB 2.5" Serial ATA III MLC

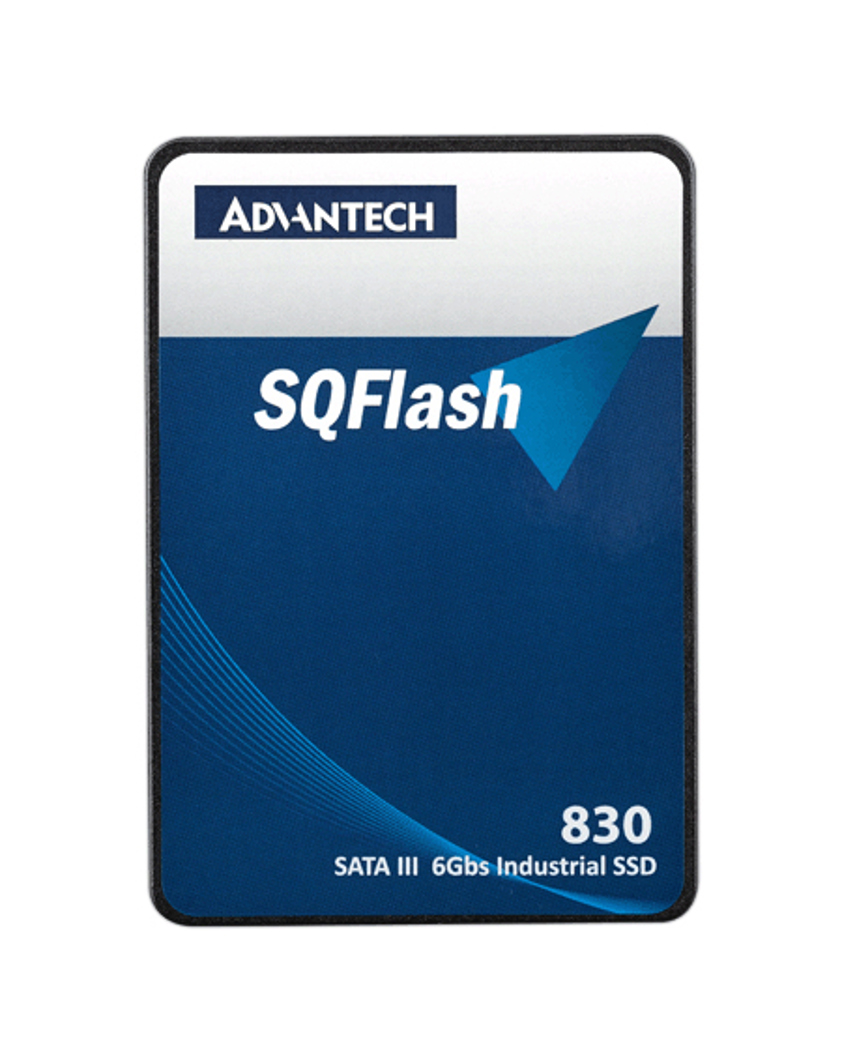

Advantech SQF-S25 830 64 GB 2.5" Serial ATA III MLC

SKU: SQF-S25M8-64G-SAC
£108.27 ex VAT
£129.92 inc VAT
Product out of stockOut of stock
  • Advantech SQFlash 830 series 2.5” SATA-SSD (SQF-S25 830) delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard 2.5-inch form factor. The SATA SSD is based on a standard SATA 7-pin interface for data segment and 15-pin for power segment, designed to operate at a maximum operating frequency of 300MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read and 530MB/s write high performance based on Toggle 2.0 MLC flash (with 512MB DDR enabled and measured by CrystalDiskMark v3.0).

  • Hard drive
    SSD capacity64 GB
    Memory typeMLC
    Data transmission
    Read speed540 MB/s
    Write speed520 MB/s
    Random write (4KB)24989 IOPS
    Random read (4KB)52098 IOPS
    Data transfer rate6 Gbit/s
    Endurance
    Data retention10 year(s)
    Features
    InterfaceSerial ATA III
    Component forPC
    NVMeNo
    Password protectionYes
    TBW rating131
    SSD capacity64 GB
    S.M.A.R.T. supportYes
    Read speed540 MB/s
    Data retention10 year(s)
    TRIM supportYes
    Write speed520 MB/s
    Protection featuresShock resistant, Vibration proof
    ECCYes
    Memory typeMLC
    Random write (4KB)24989 IOPS
    Random read (4KB)52098 IOPS
    Hardware encryptionYes
    Data transfer rate6 Gbit/s
    SSD form factor2.5"
    JEDEC standardYes
    Power
    Power consumption2000 mA
    Operating voltage5 V
    Performance
    InterfaceSerial ATA III
    Component forPC
    NVMeNo
    Password protectionYes
    TBW rating131
    SSD capacity64 GB
    S.M.A.R.T. supportYes
    Read speed540 MB/s
    Data retention10 year(s)
    TRIM supportYes
    Write speed520 MB/s
    ECCYes
    Memory typeMLC
    Random write (4KB)24989 IOPS
    Random read (4KB)52098 IOPS
    Hardware encryptionYes
    Data transfer rate6 Gbit/s
    Design
    Component forPC
    Protection featuresShock resistant, Vibration proof
    SSD form factor2.5"
    Weight & dimensions
    Width69.8 mm
    Height100.2 mm
    Depth7 mm
    Operational conditions
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-40 - 85 °C
    Operating relative humidity (H-H)5 - 95%
    Operating shock1500 G
    Operating vibration20 G
    Technical details
    InterfaceSerial ATA III
    S.M.A.R.T. supportYes
    Operating temperature (T-T)0 - 70 °C
    TRIM supportYes
    Storage temperature (T-T)-40 - 85 °C
    Protection featuresShock resistant, Vibration proof
    Operating relative humidity (H-H)5 - 95%
    ECCYes
    Operating shock1500 G
    Operating vibration20 G
    Hardware encryptionYes
    SSD form factor2.5"
    Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
    Other features
    Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
