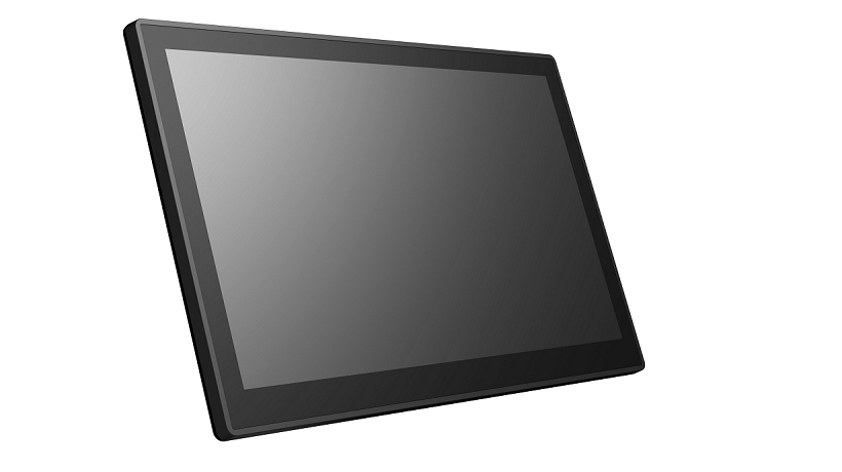

    • Advantech USC-M6P-BST10 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black

    Advantech USC-M6P-BST10 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black

    SKU: USC-M6P-BST10
    £449.14 ex VAT
    £538.97 inc VAT
    Product out of stockOut of stock

    • Advantech’s Avalo family USC-M6 touch monitor is designed to serve as a mini point-of-service (POS) solution that can be integrated with a box PC or secondary display for
      diverse applications. The ultra-slim display features a bezel-less PCAP touch panel for convenient and intuitive operation, while the VESA mount (75 x 75 mm/2.95 x 2.95 in)
      supports stand, wall, pole, and arm mounting for installation according to usage requirements. USC-M6 can also be integrated with a wide range of optional peripherals, such as a
      camera, RFID reader, or an external MSR or iButton module.

      Show more
    • Audio
      RMS rated power2 W
      Performance
      RMS rated power2 W
      Mean time between failures (MTBF)50000 h
      Built-in microphoneNo
      Built-in cameraNo
      AMD FreeSyncNo
      NVIDIA G-SYNCNo
      Display
      Screen shapeFlat
      Native aspect ratio16:9
      HD typeFull HD
      Display technologyLCD
      Viewing angle, horizontal85°
      Viewing angle, vertical85°
      Pixel pitch0.17295 x 0.17295 mm
      Backlight typeLED
      Display resolution1920 x 1080 pixels
      Display diagonal39.6 cm (15.6")
      Contrast ratio (typical)1000:1
      TouchscreenYes
      Panel typeTFT
      Touch technologySingle-touch
      Touchscreen technologyProjected capacitive system
      LED backlightYes
      Display brightness300 cd/m²
      Management features
      On Screen Display (OSD)Yes
      Multimedia
      RMS rated power2 W
      Built-in microphoneNo
      Built-in cameraNo
      Design
      CertificationFCC, CE, CCC, BSMI, VCCI, CB, UL
      Product colourBlack
      Mean time between failures (MTBF)50000 h
      Camera
      Built-in cameraNo
      Ports & interfaces
      Number of upstream ports1
      VGA (D-Sub) ports quantity1
      HDMI ports quantity1
      Audio input3.5 mm
      Microphone inYes
      HDMIYes
      Technical details
      Height (without stand)382.6 mm
      Depth (without stand)35.5 mm
      Width (without stand)244.1 mm
      Mean time between failures (MTBF)50000 h
      HDMIYes
      Built-in microphoneNo
      Product colourBlack
      TouchscreenYes
      Ergonomics
      Wall mountableYes
      VESA mountingYes
      Panel mounting interface75 x 75 mm
      On Screen Display (OSD)Yes
      Operational conditions
      Operating temperature (T-T)0 - 40 °C
      Operating relative humidity (H-H)10 - 95%
      Weight & dimensions
      Height (without stand)382.6 mm
      Depth (without stand)35.5 mm
      Width (without stand)244.1 mm
      Other features
      Height (without stand)382.6 mm
      Depth (without stand)35.5 mm
      Width (without stand)244.1 mm
      HDMIYes
      Mean time between failures (MTBF)50000 h
      TouchscreenYes
      Certificates
      CertificationFCC, CE, CCC, BSMI, VCCI, CB, UL
