IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating
the scanner to scan barcodes as they are presented, to achieve higher throughput and
productivity
Automatic Exposure Control (AEC)
The sensor in the USC-P05 automatically adjusts the supplementary lighting duration
based on the light reflected off barcode.
IP54-sealed Housing
The USC-P05 is environmentally sealed to an IP54 rating to prevent dust, moisture and
other contaminant from entering it.
Unmatched Reading Performance
Armed with Newland s fifth-generation of UIMG® technology, the USC-P05 is capable of
reading 1D as well as high-volume 2D barcodes on the screen covered with protective film.
Highly Visible Laser Aimer
The USC-P05 provides a laser-generated crosshair aiming pattern that is clear and bright
even in bright sunlight, ensuring first time accurate aim.
1.5m Drop Resistance
The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per
side).

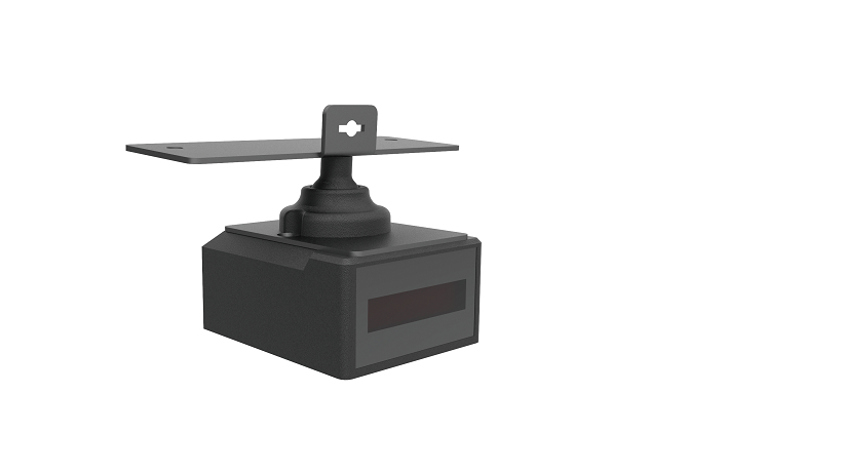

Advantech USC-P05-B110 barcode reader Barcode module bar barcode readers 2D CMOS Black
SKU: USC-P05-B110£183.82 ex VAT
£220.59 inc VAT
Out of stockScanning Type Barcode module bar barcode readers Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, ITF-6, MSI, Plessey, UPC-A, UPC-E 2D (matrix & stacked) barcodes supported Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code Yaw reading angle -55 - 55° Tilt reading angle 0 - 360° Sensor type CMOS Scanner type 2D Pitch reading angle -55 - 55° Optical sensor resolution (W x H) 1280 x 800 pixels Ports & interfaces Connectivity technology Wired Standard interfaces USB Performance Protection features Drop proof, Electrostatic Discharge (ESD) protection LED indicators Yes Built-in display No International Protection (IP) code IP54 Product colour Black Certification FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC Design Type Barcode module bar barcode readers Protection features Drop proof, Electrostatic Discharge (ESD) protection LED indicators Yes International Protection (IP) code IP54 Product colour Black Certification FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC Weight & dimensions Width 41.5 mm Depth 49.5 mm Height 24.3 mm Weight 75 g Technical details Type Barcode module bar barcode readers Protection features Drop proof, Electrostatic Discharge (ESD) protection LED indicators Yes Built-in display No International Protection (IP) code IP54 Product colour Black Certification FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC Compliance certificates CE, RoHS Operational conditions Storage temperature (T-T) -40 - 70 °C Operating temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
