UTC-315G is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

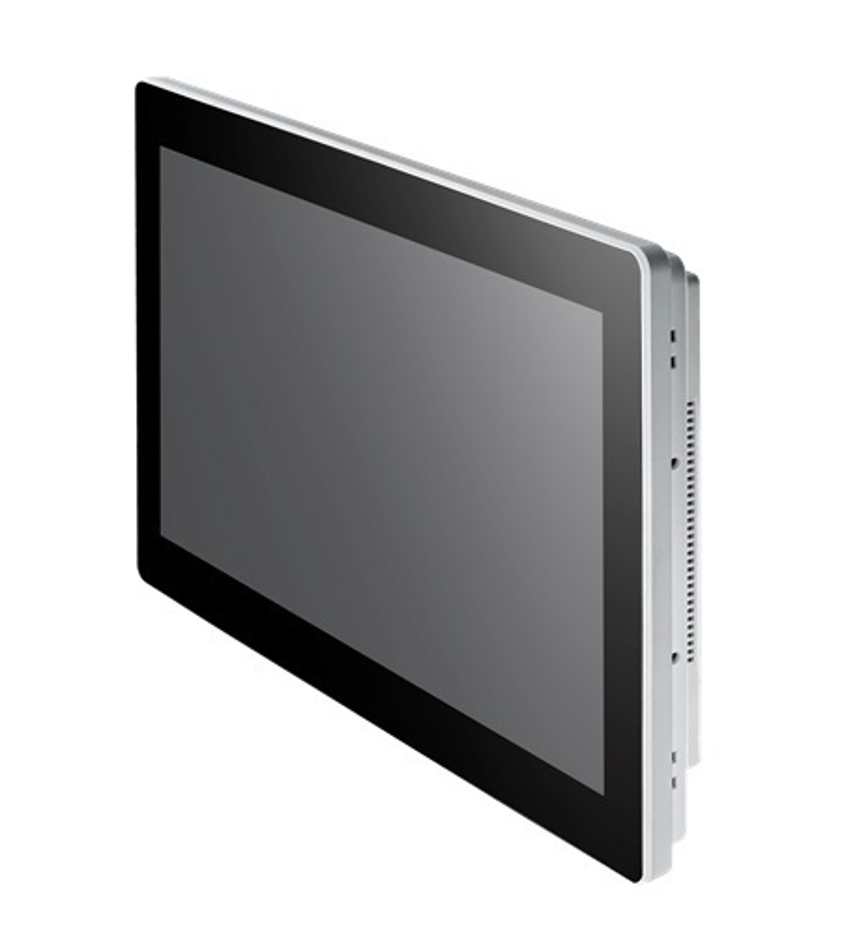

Advantech UTC-315GP-ATB0E All-in-One PC/workstation 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen Intel® Pentium® 4 GB DDR3L-SDRAM HDD PC barebone White
SKU: UTC-315GP-ATB0E£917.34 ex VAT
£1,100.81 inc VAT
Out of stockDisplay HD type Full HD Panel type TFT Display diagonal 39.6 cm (15.6") Display resolution 1920 x 1080 pixels Touchscreen Yes Display brightness 220 cd/m² Native aspect ratio 16:9 Processor Processor operating modes 64-bit Processor lithography 14 nm Processor codename Apollo Lake Maximum internal memory supported by processor 8 GB Memory types supported by processor DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM Memory clock speeds supported by processor 1866,2400 MHz Tjunction 105 °C Thermal Design Power (TDP) 6 W Processor series Intel Pentium Processor N4000 Series for Mobile PCI Express configurations 1x2,1x2+2x1 Maximum number of PCI Express lanes 6 Processor cache type L2 Scenario Design Power (SDP) 4 W Conflict-Free processor Yes Processor frequency 1.1 GHz Processor boost frequency 2.5 GHz Processor family Intel® Pentium® Processor model N4200 Processor cores 4 Processor threads 4 Processor cache 2 MB Processor socket BGA 1296 Processor manufacturer Intel PCI Express slots version 2.0 Memory Internal memory 4 GB Maximum internal memory 8 GB Internal memory type DDR3L-SDRAM Memory slots 1 Memory slots type SO-DIMM Memory clock speed 1866 MHz Hard drive Storage media HDD Storage Number of storage drives supported 1 Storage media HDD Optical drive type No Card reader integrated No Graphics Discrete graphics adapter No On-board graphics adapter burst frequency 750 MHz On-board graphics adapter base frequency 200 MHz Maximum on-board graphics adapter memory 8 GB Number of displays supported (on-board graphics) 3 Number of execution units 18 On-board graphics adapter ID 0x5A84 On-board graphics adapter family Intel® HD Graphics On-board graphics adapter Yes Discrete graphics adapter model Not available On-board graphics adapter model Intel® HD Graphics 505 Audio Number of speakers 2 Built-in speaker(s) Yes RMS rated power 2 W Optical drive Optical drive type No Network Ethernet LAN Yes Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Audio output Yes USB 2.0 ports quantity 2 HDMI ports quantity 1 Microphone in Yes Ethernet LAN (RJ-45) ports 2 DC-in jack Yes Technical details Intel® High Definition Audio (Intel® HD Audio) Yes Intel® Wireless Display (Intel® WiDi) No Intel® Small Business Advantage (Intel® SBA) No Product type PC barebone Intel® Turbo Boost Technology No Intel Smart Connect Technology No Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Hyper Threading Technology (Intel® HT Technology) No Intel® Anti-Theft Technology (Intel® AT) No Intel® Smart Response Technology No Product colour White Design Product colour White Panel mounting interface 75 x 75 mm VESA mounting Yes Performance Product type PC barebone Processor special features Enhanced Intel SpeedStep Technology Yes Intel® Quick Sync Video Technology Yes Intel® InTru™ 3D Technology No Intel® Insider™ No Intel Clear Video Technology Yes Intel® Clear Video HD Technology (Intel® CVT HD) Yes Intel® OS Guard Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel Trusted Execution Technology No Intel Stable Image Platform Program (SIPP) No Intel® Secure Key Yes Intel Enhanced Halt State Yes Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Yes Intel® AES New Instructions (Intel® AES-NI) Yes UART Yes Thermal Monitoring Technologies Yes Processor package size 24 x 31 mm Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel 64 Yes Idle States Yes Execute Disable Bit Yes Embedded options available No CPU configuration (max) 1 Intel Secure Boot Yes Intel Virtualization Technology (VT-x) Yes Intel Stable Image Platform Program (SIPP) version 0.00 Intel Smart Response Technology version 0.00 Intel Smart Connect Technology version 0.00 Intel Small Business Advantage (SBA) version 0.00 Intel Secure Key Technology version 1.00 Intel Secure Boot Technology version 1.00 Intel Rapid Storage Technology No Intel Identity Protection Technology version 1.00 Processor ARK ID 95592 Intel® High Definition Audio (Intel® HD Audio) Yes Intel® Wireless Display (Intel® WiDi) No Intel® Small Business Advantage (Intel® SBA) No Intel® Turbo Boost Technology No Intel Smart Connect Technology No Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Hyper Threading Technology (Intel® HT Technology) No Intel® Anti-Theft Technology (Intel® AT) No Intel® Smart Response Technology No Power AC adapter power 84 W Weight & dimensions Width (with stand) 402 mm Depth (with stand) 39.7 mm Height (with stand) 260 mm Weight (with stand) 4 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 95% Certificates Certification CE, FCC, UL, CCC CB,BSMI IP65 Other features On-board graphics adapter Yes Processor socket BGA 1296 Processor manufacturer Intel PCI Express slots version 2.0 Display included Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
