Robust and highly featured

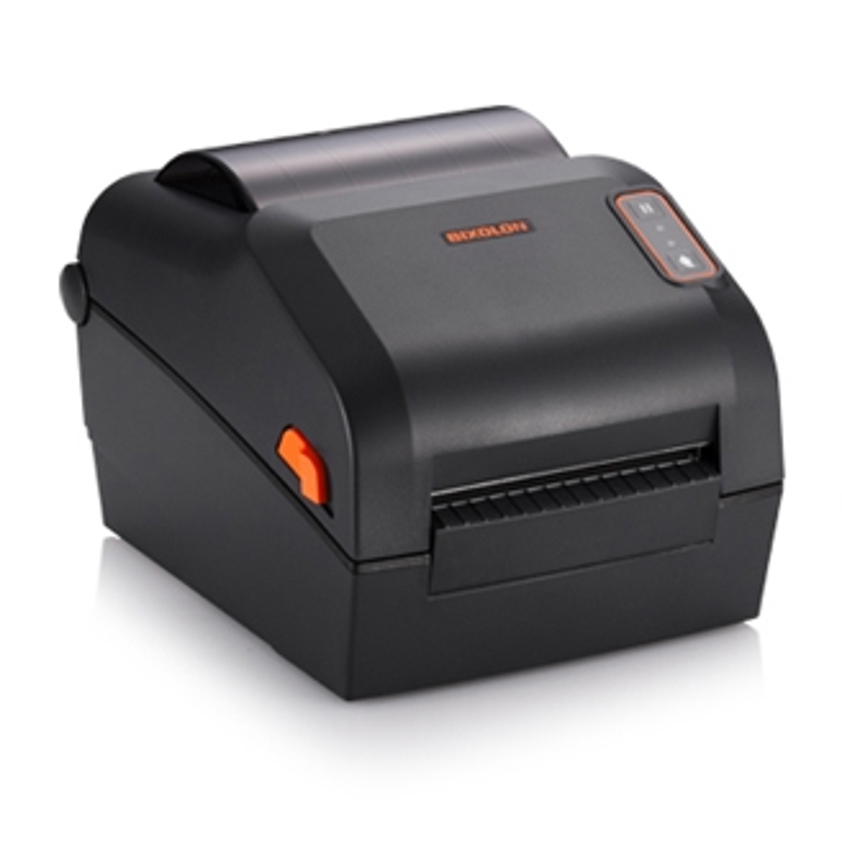

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired & Wireless Ethernet LAN Bluetooth
SKU: XD5-40DEBK£256.80 ex VAT
£308.15 inc VAT
Out of stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Printing Print speed 178 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Print technology Direct thermal Maximum print length 1 m Printable dot numbers 8 dot Display Display No Network Wi-Fi No Ethernet LAN Yes Memory Internal memory 64 MB Flash memory 128 MB Paper handling Ribbon width 11 cm Ribbon length 300 m Media thickness 0.06 - 0.2 mm Maximum roll diameter 12.7 cm Maximum label width 11.8 cm Autocutter Yes Ports & interfaces RS-232 ports 1 Connectivity technology Wired & Wireless Bluetooth version 4.2 Bluetooth Yes Wi-Fi No Ethernet LAN Yes USB port Yes Performance Mobile operating systems supported Android, iOS Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 Ribbon width 11 cm Ribbon length 300 m Internal memory 64 MB Flash memory 128 MB Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode Design Display No Product colour Black Control type Buttons Power AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Technical details Windows operating systems supported Yes Mac operating systems supported Yes Product colour Black Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 Ribbon width 11 cm Ribbon length 300 m Maximum label width 11.8 cm Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode Sustainability certificates ENERGY STAR Harmonized System (HS) code 84433210 System requirements Mobile operating systems supported Android, iOS Linux operating systems supported Yes Windows operating systems supported Yes Mac operating systems supported Yes Operational conditions Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 80% Weight & dimensions Width 194 mm Depth 248 mm Height 169 mm Weight 1.89 kg Packaging content Cables included USB Logistics data Harmonized System (HS) code 84433210 Other features Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
