The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
EMV Cradles
The ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.
Barcode Scanner
Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.
Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

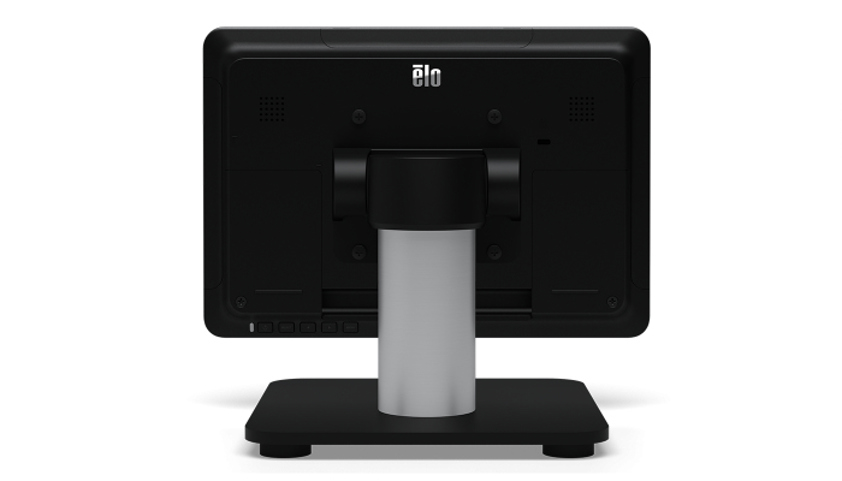

Elo Touch Solutions 1002L 25.6 cm (10.1") LCD HD Black Touchscreen
SKU: E324341£202.46 ex VAT
£242.95 inc VAT
In stockDisplay Panel type TFT Display number of colours 262000 colours Touchscreen Yes Display technology LCD Display diagonal 25.6 cm (10.1") Display resolution 1280 x 800 pixels HD type HD Response time 29 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 170° Viewing angle, vertical 170° Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) Native aspect ratio 16:10 Horizontal scan range 31.5 - 80 kHz Maximum refresh rate 60 Hz Ports & interfaces DC-in jack Yes HDMI ports quantity 1 DVI port No Audio RMS rated power 4 W Built-in speaker(s) Yes Design Product colour Black Panel mounting interface 75 x 75 mm Certification Canada cUL, IC Europe CE Japan VCCI United States UL, FCC China CCC Korea, KCC, e-standby Australia RCM Mexico NOM Taiwan BSMI International CB RoHS, China RoHS, WEEE, REACH India BIS Russia EAC VESA mounting Yes Screen shape Flat Performance On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese On Screen Display (OSD) Yes Number of OSD languages 8 Power Power consumption (off) 0.2 W Annual energy consumption 12 kWh Power consumption (typical) 7.43 W Power consumption (standby) 1.26 W Energy efficiency scale A+++ to D Packaging data Package width 315 mm Package depth 144 mm Package height 243 mm Package weight 1.83 kg Cables included AC, HDMI, USB Packaging content Cables included AC, HDMI, USB Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Certificates Certification Canada cUL, IC Europe CE Japan VCCI United States UL, FCC China CCC Korea, KCC, e-standby Australia RCM Mexico NOM Taiwan BSMI International CB RoHS, China RoHS, WEEE, REACH India BIS Russia EAC Technical details VESA mounting Yes Panel type TFT Depth (without stand) 28.4 mm Weight (without stand) 884.2 g Height (without stand) 165.3 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Other features Panel type TFT Depth (without stand) 28.4 mm Weight (without stand) 884.2 g Height (without stand) 165.3 mm Viewable size, vertical 13.6 cm Viewable size, horizontal 21.7 cm Height adjustment No Display technology LCD DC-in jack Yes Built-in camera No Backlight type LED Audio input Yes Annual energy consumption 12 kWh Maximum refresh rate 60 Hz Energy efficiency scale A+++ to D Energy efficiency class (old) A Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
