The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

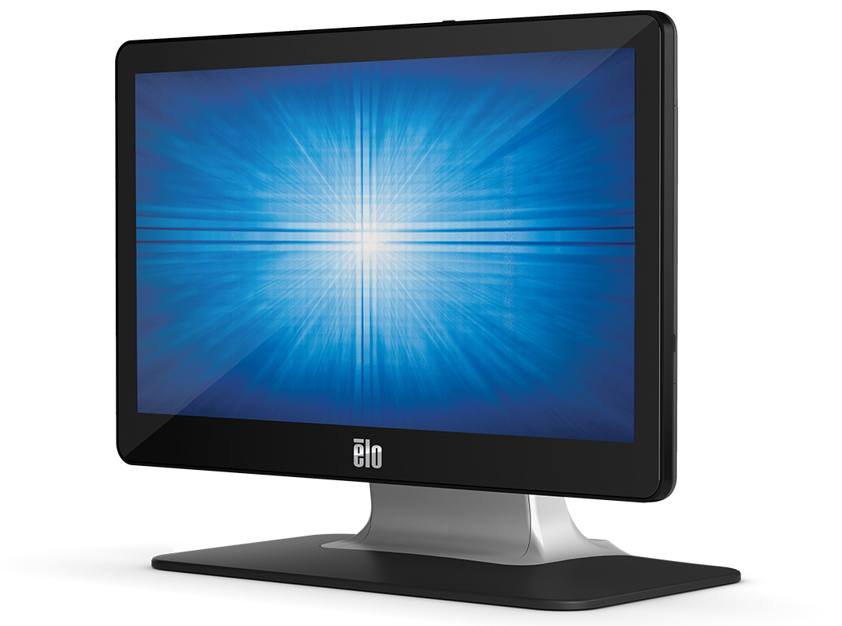

Elo Touch Solutions 1302L 33.8 cm (13.3") LCD 270 cd/m² Full HD White Touchscreen
SKU: E683787£321.50 ex VAT
£385.80 inc VAT
Out of stockDisplay Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LCD Display diagonal 33.8 cm (13.3") Display resolution 1920 x 1080 pixels Display brightness 270 cd/m² HD type Full HD Response time 25 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 170° Viewing angle, vertical 170° Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Native aspect ratio 16:9 Horizontal scan range 30 - 75 kHz Touchscreen technology Projected capacitive system Ports & interfaces HDMI version 1.3 HDMI ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 Audio RMS rated power 2 W Built-in speaker(s) Yes Design Product colour White Panel mounting interface 75 x 75 mm Certification Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC VESA mounting Yes Screen shape Flat Wall mountable Yes Performance International Protection (IP) code IPX1 Mean time between failures (MTBF) 50000 h On Screen Display (OSD) Yes Power Power consumption (off) 0.18 W Power consumption (typical) 9.8 W AC input voltage 100 - 240 V AC input frequency 50 / 60 Hz Weight & dimensions Width (with stand) 326.1 mm Height (with stand) 259.6 mm Depth (with stand) 150 mm Weight (with stand) 2.32 kg Packaging data Package width 405 mm Package depth 160 mm Package height 280 mm Package weight 2.89 kg Cables included AC, HDMI, USB Packaging content Cables included AC, HDMI, USB Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Certificates Certification Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC Technical details VESA mounting Yes Power supply type AC Panel type TFT Depth (without stand) 25.1 mm Number of simultaneous touchpoints 10 Weight (without stand) 1.22 kg Height (without stand) 211.3 mm Weight (with stand) 2.32 kg Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC Panel type TFT Depth (without stand) 25.1 mm Number of simultaneous touchpoints 10 Weight (without stand) 1.22 kg Height (without stand) 211.3 mm Width (with stand) 326.1 mm Viewable size, vertical 16.5 cm Viewable size, horizontal 29.4 cm Mean time between failures (MTBF) 50000 h Height (with stand) 259.6 mm Display technology LCD Depth (with stand) 150 mm Built-in camera No Audio input 1 Weight (with stand) 2.32 kg Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
