The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

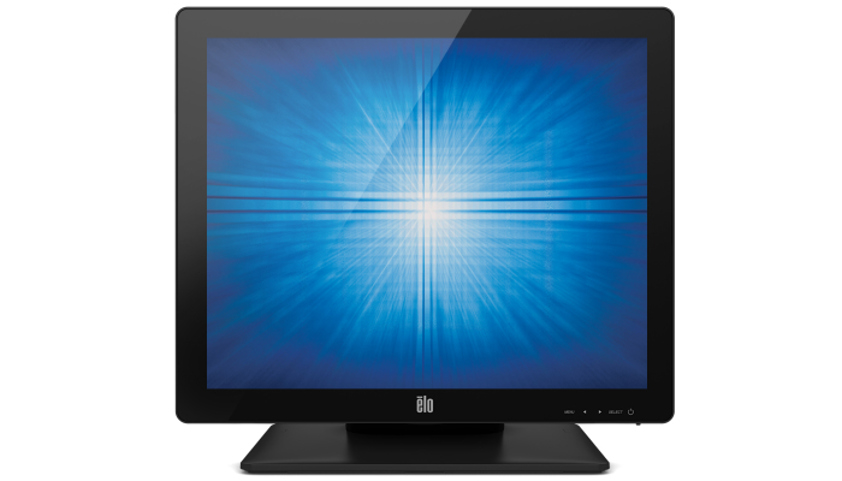

Elo Touch Solutions 1517L 38.1 cm (15") LED 240 cd/m² Black Touchscreen
SKU: E144246£429.82 ex VAT
£515.78 inc VAT
In stockDisplay LED backlight Yes Panel type TFT Display number of colours 16.2 million colours Touchscreen Yes Display technology LED Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 240 cd/m² Response time 23 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 160° Viewing angle, vertical 150° Vertical scan range 56 - 75 Hz Native aspect ratio 4:3 Horizontal scan range 31.5 - 60 kHz Touchscreen technology Resistive Design Placement supported Horizontal Product colour Black Panel mounting interface 75 x 75 mm Certification UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE VESA mounting Yes Screen shape Flat Wall mountable Yes Performance On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese On Screen Display (OSD) Yes Number of OSD languages 8 Power Power consumption (off) 0.5 W Power consumption (typical) 10.5 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Weight & dimensions Width (with stand) 358 mm Height (with stand) 319 mm Depth (with stand) 197 mm Weight (with stand) 4.3 kg Packaging data Package width 487 mm Package depth 231 mm Package height 485 mm Package weight 7.3 kg Cables included AC, USB, VGA Packaging content Stand included Yes Cables included AC, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Certificates Certification UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE Technical details VESA mounting Yes Power supply type AC Stand included Yes Panel type TFT Weight (with stand) 4.3 kg Sustainability compliance Yes Compliance certificates CE, RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC Stand included Yes Panel type TFT Width (with stand) 358 mm Viewable size, vertical 30.4 cm Viewable size, horizontal 22.8 cm LED indicators Yes Height (with stand) 319 mm Display technology LED Depth (with stand) 197 mm Built-in microphone No Built-in camera No Weight (with stand) 4.3 kg Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
