The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.

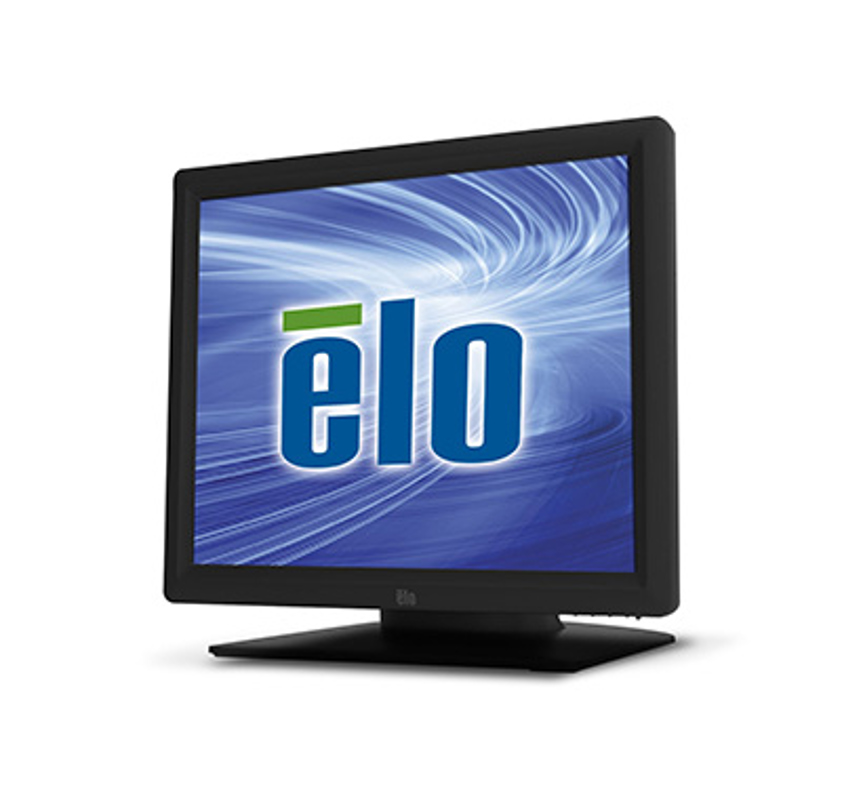

Elo Touch Solutions 1517L Rev B 38.1 cm (15") LCD 200 cd/m² Black Touchscreen
SKU: E523163£409.58 ex VAT
£491.50 inc VAT
In stockDisplay LED backlight Yes Display number of colours 16.2 million colours Touchscreen Yes Display technology LCD Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 200 cd/m² Response time 8 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 160° Viewing angle, vertical 150° Vertical scan range 56 - 75 Hz Supported graphics resolutions 720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA) Native aspect ratio 4:3 Horizontal scan range 31.5 - 60 kHz Native refresh rate 60 Hz Design Product colour Black Panel mounting interface 75 x 75 mm Screen shape Flat Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Number of OSD languages 8 Power Power consumption (typical) 12 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Weight & dimensions Width (with stand) 358 mm Height (with stand) 319 mm Depth (with stand) 197 mm Weight (with stand) 4.3 kg Packaging data Package width 487 mm Package depth 231 mm Package height 485 mm Package weight 7.3 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Technical details Power supply type AC/DC Dimensions (W x D x H) with stand 358 x 197 x 319 mm Display viewable area (HxV) 304 x 228 mm Weight (with stand) 4.3 kg Other features Power supply type AC/DC Dimensions (W x D x H) with stand 358 x 197 x 319 mm Display viewable area (HxV) 304 x 228 mm Width (with stand) 358 mm Voltage tolerance 5% Mean time between failures (MTBF) 50000 h Height (with stand) 319 mm Display technology LCD Depth (with stand) 197 mm Aspect ratio 4:3 Weight (with stand) 4.3 kg Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
