The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers

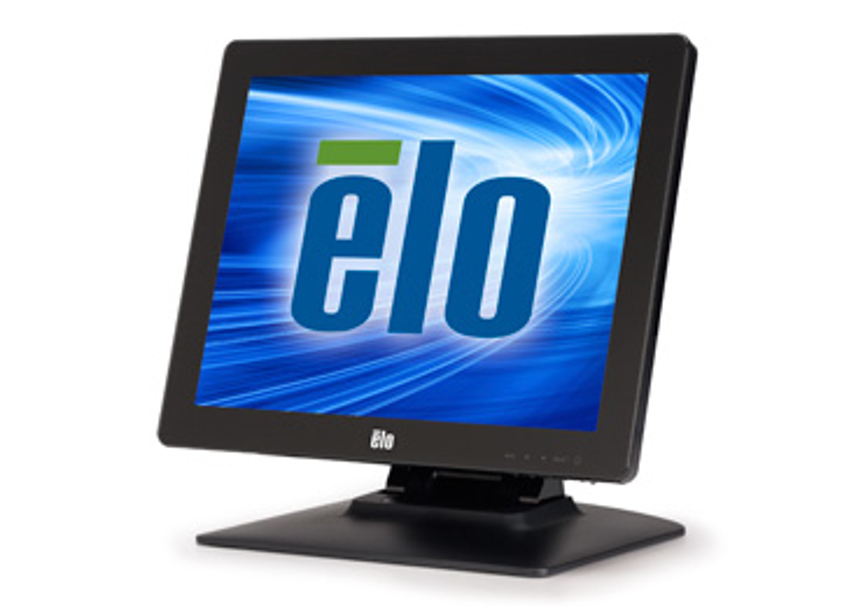

Elo Touch Solutions 1523L 38.1 cm (15") 225 cd/m² Black Touchscreen
SKU: E394454£461.14 ex VAT
£553.37 inc VAT
In stockDisplay LED backlight Yes Display number of colours 16.2 million colours Touchscreen Yes Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 225 cd/m² Response time 25 ms Contrast ratio (typical) 700:1 Viewing angle, horizontal 160° Viewing angle, vertical 140° Supported graphics resolutions 720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA) Native aspect ratio 4:3 Touchscreen technology Surface acoustic wave Native refresh rate 60 Hz Ports & interfaces DVI port Yes DVI-D ports quantity 1 Audio Built-in speaker(s) Yes Design Product colour Black Panel mounting interface 75 x 75 mm Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) Yes Weight & dimensions Width (with stand) 358 mm Height (with stand) 199 mm Depth (with stand) 318 mm Weight (with stand) 4.44 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Technical details Dimensions (W x D x H) with stand 358 x 318 x 199 mm Display viewable area (HxV) 304 x 228 mm Weight (with stand) 4.44 kg Other features Dimensions (W x D x H) with stand 358 x 318 x 199 mm Display viewable area (HxV) 304 x 228 mm Width (with stand) 358 mm Mean time between failures (MTBF) 50000 h Height (with stand) 199 mm Depth (with stand) 318 mm Aspect ratio 4:3 Weight (with stand) 4.44 kg Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
