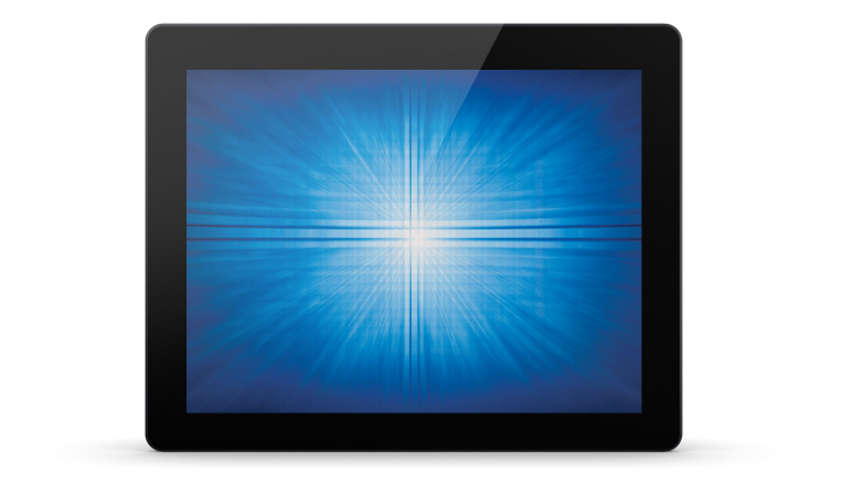

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Elo Touch Solutions 1590L 38.1 cm (15") LCD 240 cd/m² Black Touchscreen
SKU: E326154£362.72 ex VAT
£435.27 inc VAT
In stockDisplay LED backlight Yes Display number of colours 16.2 million colours Touchscreen Yes Display technology LCD Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 240 cd/m² Response time 16 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 160° Viewing angle, vertical 150° Vertical scan range 50 - 75 Hz Horizontal scan range 30 - 60 kHz Touchscreen technology Projected capacitive system Native refresh rate 60 Hz Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 75,100 x 100 mm VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Power Power consumption (off) 0.5 W Power consumption (typical) 12.5 W Packaging data Package width 434 mm Package depth 175 mm Package height 375 mm Package weight 4.7 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Depth (without stand) 35.6 mm Weight (without stand) 2.9 kg Height (without stand) 284.9 mm Full HD No Display viewable area (HxV) 304.1 x 228.1 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type DC Depth (without stand) 35.6 mm Weight (without stand) 2.9 kg Height (without stand) 284.9 mm Display viewable area (HxV) 304.1 x 228.1 mm Mean time between failures (MTBF) 50000 h Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 60 kHz Built-in camera No Backlight type LED Aspect ratio 4:3 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
