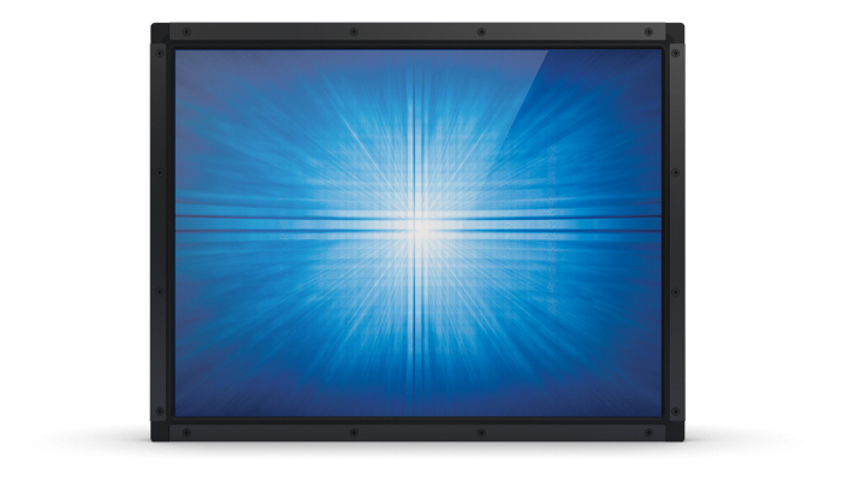

The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.
Touch ready.
The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Elo Touch Solutions 1598L 38.1 cm (15") LCD/TFT 400 cd/m² Black Touchscreen
SKU: E126407£428.87 ex VAT
£514.64 inc VAT
In stockDisplay LED backlight Yes Display number of colours 16.2 million colours Touchscreen Yes Display technology LCD/TFT Display diagonal 38.1 cm (15") Display resolution 1024 x 768 pixels Display brightness 400 cd/m² Response time 35 ms Contrast ratio (typical) 1500:1 Viewing angle, horizontal 170° Viewing angle, vertical 170° Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA) Maximum refresh rate 60 Hz Touchscreen technology Resistive Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 100 mm Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Number of OSD languages 8 Power Power consumption (off) 0.5 W Power consumption (typical) 14.1 W Power consumption (standby) 1.5 W AC input voltage 100-240 V AC input frequency 50 - 60 Hz Packaging data Package width 434 mm Package depth 175 mm Package height 375 mm Package weight 4.7 kg Quick start guide Yes Remote control included Yes Cables included HDMI, USB, VGA Packaging content Quick start guide Yes Remote control included Yes Cables included HDMI, USB, VGA Operational conditions Operating altitude 0 - 3658 m Non-operating altitude 3658 - 12192 m Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Certificates Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC Technical details VESA mounting Yes Power supply type AC/DC Depth (without stand) 41.9 mm Weight (without stand) 2.9 kg Height (without stand) 264.4 mm Display viewable area (HxV) 304.1 x 228.1 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC/DC Depth (without stand) 41.9 mm Weight (without stand) 2.9 kg Height (without stand) 264.4 mm Display viewable area (HxV) 304.1 x 228.1 mm Operating altitude 0 - 3658 m Non-operating altitude 3658 - 12192 m Mean time between failures (MTBF) 50000 h Display technology LCD/TFT Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 60 kHz Built-in microphone No Built-in camera No Quick start guide Yes Aspect ratio 4:3 Maximum refresh rate 60 Hz Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
