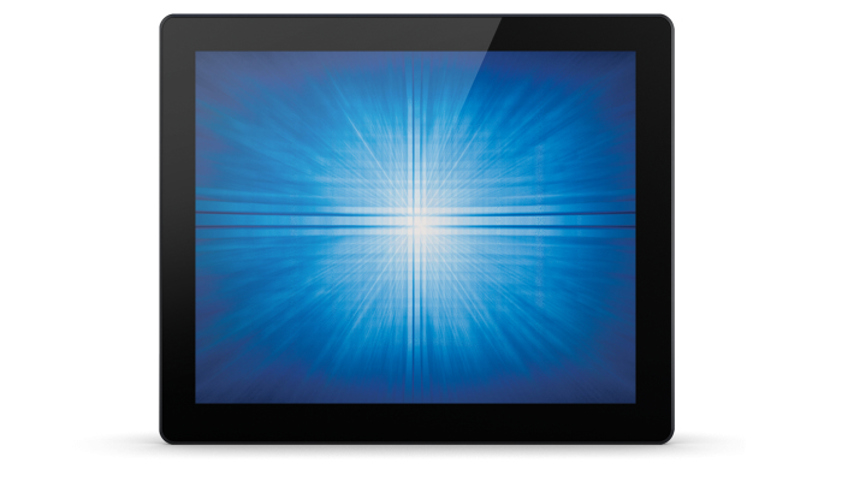

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Elo Touch Solutions 1790L 43.2 cm (17") LCD/TFT 200 cd/m² Black Touchscreen
SKU: E326347£391.01 ex VAT
£469.22 inc VAT
In stockDisplay LED backlight Yes Display number of colours 16.78 million colours Touchscreen Yes Display technology LCD/TFT Display diagonal 43.2 cm (17") Display resolution 1280 x 1024 pixels Display brightness 200 cd/m² Response time 5 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 170° Viewing angle, vertical 160° Vertical scan range 50 - 75 Hz Horizontal scan range 30 - 82 kHz Native refresh rate 60 Hz Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 75,100 x 100 mm VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Power Power consumption (off) 0.5 W Power consumption (typical) 17.8 W Packaging data Package width 476 mm Package depth 183 mm Package height 418 mm Package weight 5.6 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Weight (without stand) 3.6 kg Full HD No Display viewable area (HxV) 337.92 x 270.336 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type DC Weight (without stand) 3.6 kg Display viewable area (HxV) 337.92 x 270.336 mm Mean time between failures (MTBF) 50000 h Display technology LCD/TFT Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Built-in camera No Backlight type LED Aspect ratio 5:4 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
