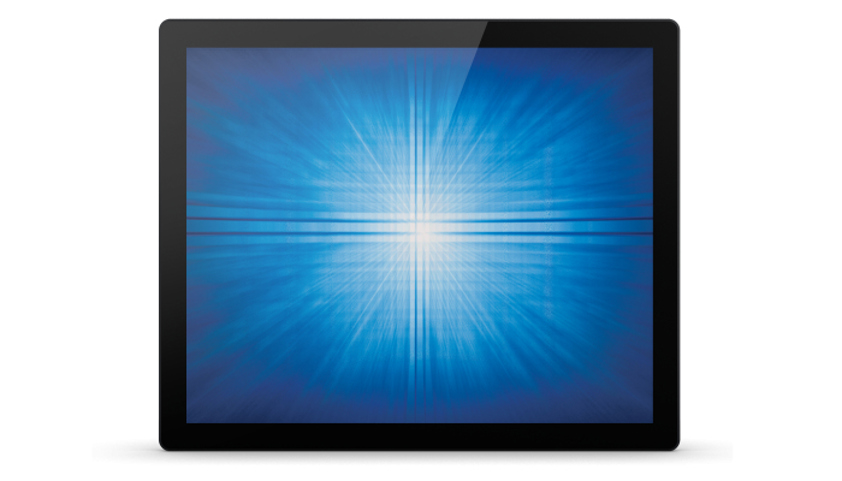

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Elo Touch Solutions 1991L 48.3 cm (19") LCD/TFT 225 cd/m² Black Touchscreen
SKU: E328700£464.91 ex VAT
£557.89 inc VAT
Out of stockDisplay LED backlight Yes Display number of colours 16.78 million colours Touchscreen Yes Display technology LCD/TFT Display diagonal 48.3 cm (19") Display resolution 1280 x 1024 pixels Display brightness 225 cd/m² Response time 14 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Vertical scan range 50 - 75 Hz Horizontal scan range 30 - 82 kHz Maximum refresh rate 60 Hz Touchscreen technology Surface acoustic wave Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 75,100 x 100 mm VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Power Power consumption (off) 0.5 W Power consumption (typical) 17 W Packaging data Package width 526 mm Package depth 190 mm Package height 450 mm Package weight 7 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Weight (without stand) 4.6 kg Full HD No Display viewable area (HxV) 374.78 x 299.83 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type DC Weight (without stand) 4.6 kg Display viewable area (HxV) 374.78 x 299.83 mm Mean time between failures (MTBF) 50000 h Display technology LCD/TFT Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Built-in camera No Backlight type LED Aspect ratio 5:4 Maximum refresh rate 60 Hz Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
