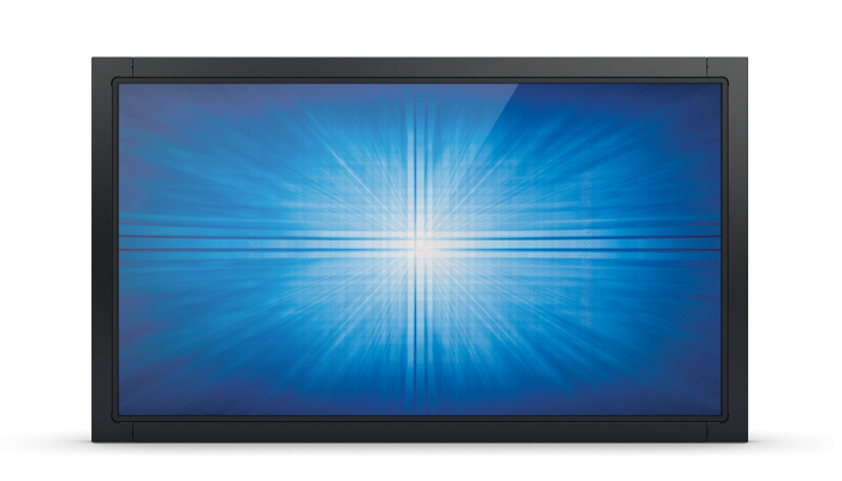

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Elo Touch Solutions 2094L 49.5 cm (19.5") LCD 225 cd/m² Full HD Black Touchscreen
SKU: E328883£379.60 ex VAT
£455.52 inc VAT
Out of stockDisplay LED backlight Yes Panel type TFT Display number of colours 16.78 million colours Touchscreen Yes Display technology LCD Display diagonal 49.5 cm (19.5") Display resolution 1920 x 1080 pixels Display brightness 225 cd/m² HD type Full HD Response time 20 ms Contrast ratio (typical) 3000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Touchscreen technology Surface acoustic wave Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 100 x 100 mm Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Number of OSD languages 8 Power Power consumption (off) 0.5 W Power consumption (typical) 17.6 W Power consumption (standby) 1.5 W AC input voltage 230 V AC input frequency 50 Hz Packaging data Package width 575 mm Package depth 185 mm Package height 376 mm Package weight 6.4 kg Quick start guide Yes Remote control included Yes Cables included HDMI, USB, VGA Packaging content Quick start guide Yes Remote control included Yes Cables included HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 35 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Certificates Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC Technical details VESA mounting Yes Power supply type AC Panel type TFT Depth (without stand) 43 mm Weight (without stand) 4.7 kg Height (without stand) 280 mm Full HD Yes Display viewable area (HxV) 434.88 x 238.68 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC Panel type TFT Depth (without stand) 43 mm Weight (without stand) 4.7 kg Height (without stand) 280 mm Display viewable area (HxV) 434.88 x 238.68 mm Mean time between failures (MTBF) 50000 h Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Built-in microphone No Built-in camera No Quick start guide Yes Aspect ratio 16:9 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
