Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.

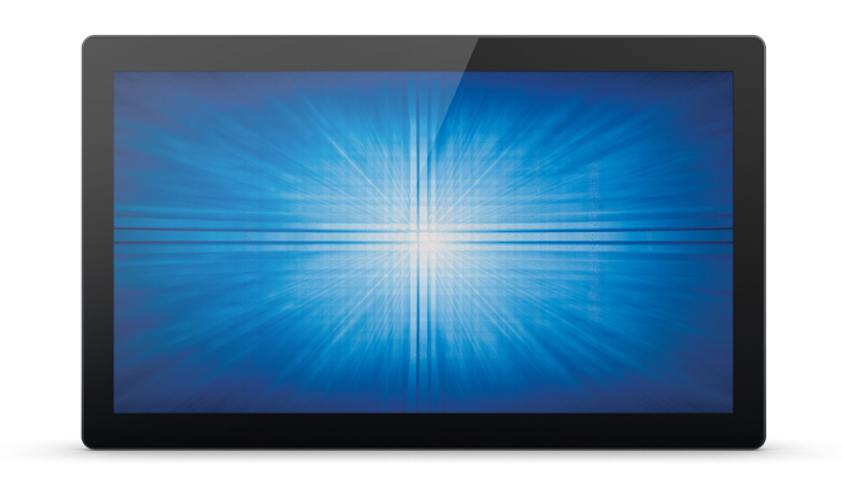

Elo Touch Solutions 2295L 54.6 cm (21.5") LED 400 cd/m² Full HD Black Touchscreen
SKU: E146083£475.23 ex VAT
£570.28 inc VAT
Out of stockDisplay Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LED Display diagonal 54.6 cm (21.5") Display resolution 1920 x 1080 pixels Display brightness 400 cd/m² HD type Full HD Response time 14 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Vertical scan range 50 - 75 Hz Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Native aspect ratio 16:9 Horizontal scan range 30 - 82 kHz Maximum refresh rate 60 Hz Touchscreen technology Projected capacitive system Ports & interfaces HDMI version 1.3 DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 100 x 100 mm Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h Power Power consumption (off) 0.2 W Power consumption (typical) 25 W Power consumption (standby) 0.5 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Packaging data Package width 620 mm Package depth 190 mm Package height 423 mm Package weight 8.6 kg Quick start guide Yes Cables included HDMI, USB, VGA Packaging content Quick start guide Yes Cables included HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Certificates Certification RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE Technical details VESA mounting Yes Power supply type AC Panel type TFT Depth (without stand) 46.9 mm Number of simultaneous touchpoints 10 Weight (without stand) 5.41 kg Height (without stand) 311 mm Full HD Yes Display viewable area (HxV) 476.06 x 267.79 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC Panel type TFT Depth (without stand) 46.9 mm Number of simultaneous touchpoints 10 Weight (without stand) 5.41 kg Height (without stand) 311 mm Display viewable area (HxV) 476.06 x 267.79 mm Mean time between failures (MTBF) 50000 h Display technology LED Built-in microphone No Built-in camera No Quick start guide Yes Maximum refresh rate 60 Hz Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
