Go Brighter with Elo Open Frames
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.

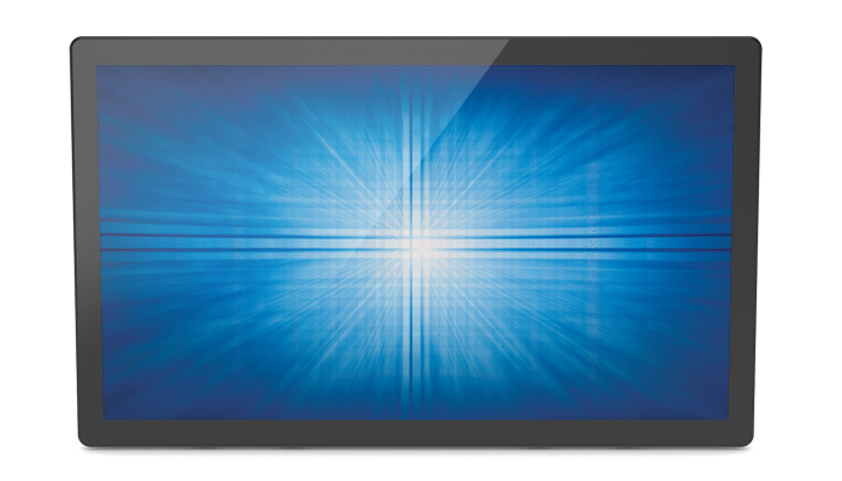

Elo Touch Solutions 2495L 60.5 cm (23.8") LCD 540 cd/m² Full HD Black Touchscreen
SKU: E506980£489.30 ex VAT
£587.16 inc VAT
In stockDisplay LED backlight Yes Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LCD Display diagonal 60.5 cm (23.8") Display resolution 1920 x 1080 pixels Display brightness 540 cd/m² HD type Full HD Response time 14 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Native aspect ratio 16:9 Maximum refresh rate 60 Hz Touchscreen technology Projected capacitive system Ports & interfaces DisplayPort version 1.1a HDMI version 1.3a DisplayPorts quantity 1 HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Design Product colour Black VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French On Screen Display (OSD) Yes Power Power consumption (max) 32.95 W Power consumption (off) 0.2 W Power consumption (standby) 0.71 W Energy efficiency scale A to G Energy efficiency class (SDR) G Energy consumption (SDR) per 1000 hours 39 kWh Packaging data Package width 692 mm Package depth 190 mm Package height 452 mm Package weight 7.57 kg Cables included HDMI, USB, VGA Packaging content Cables included HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Panel type TFT DisplayPort version 1.1a Depth (without stand) 37 mm Number of simultaneous touchpoints 10 Weight (without stand) 5.65 kg Height (without stand) 341.1 mm Display viewable area (HxV) 527.04 x 296.46 mm Compliance certificates RoHS Features Wall mountable Yes Other features Power supply type DC Panel type TFT DisplayPort version 1.1a Depth (without stand) 37 mm Number of simultaneous touchpoints 10 Weight (without stand) 5.65 kg Height (without stand) 341.1 mm Display viewable area (HxV) 527.04 x 296.46 mm Viewable size, vertical 29.6 cm Viewable size, horizontal 52.7 cm Power consumption (max) 32.95 W Mean time between failures (MTBF) 50000 h Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Built-in camera No Backlight type LED Maximum refresh rate 60 Hz Energy efficiency scale A to G Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
