DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

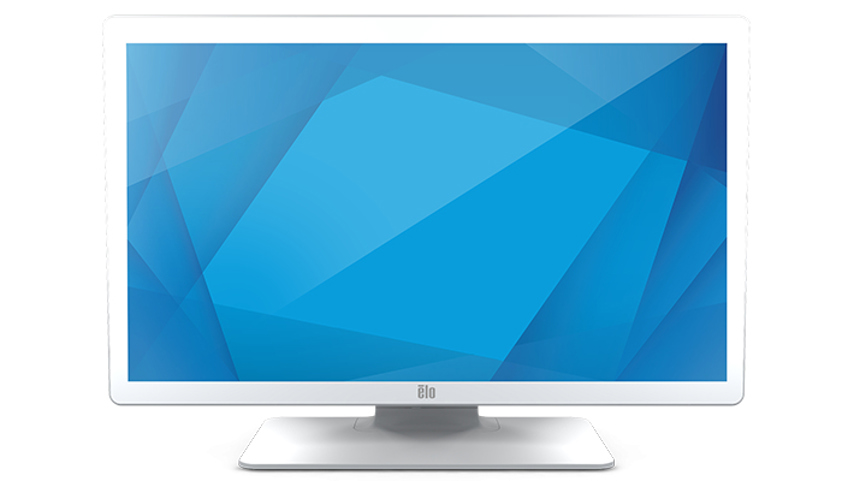

Elo Touch Solutions 2703LM 68.6 cm (27") LCD 270 cd/m² Full HD White Touchscreen
SKU: E659793£759.85 ex VAT
£911.82 inc VAT
Low stockDisplay Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LCD Display diagonal 68.6 cm (27") Display resolution 1920 x 1080 pixels Display brightness 270 cd/m² HD type Full HD Response time 14 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Display diagonal (metric) 68.6 cm Supported graphics resolutions 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Native aspect ratio 16:9 Anti-glare screen Yes Maximum refresh rate 70 Hz Touchscreen technology Projected capacitive system Ports & interfaces HDMI ports quantity 1 Audio RMS rated power 2 W Built-in speaker(s) Yes Design Product colour White VESA mounting Yes Anti-glare screen Yes Screen shape Flat Wall mountable Yes Performance International Protection (IP) code IP54 Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese On Screen Display (OSD) Yes Number of OSD languages 8 Power Power consumption (max) 22.4 W Power consumption (off) 0.24 W Power consumption (typical) 17.37 W Power consumption (standby) 1 W Energy efficiency scale A to G Energy efficiency class (SDR) E Energy consumption (SDR) per 1000 hours 21 kWh Weight & dimensions Width (with stand) 647.6 mm Height (with stand) 450.9 mm Depth (with stand) 233 mm Weight (with stand) 10.3 kg Packaging data Package width 764 mm Package depth 560 mm Package height 322 mm Package weight 14.3 kg Cables included HDMI, USB, VGA Packaging content Cables included HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Panel type TFT Number of simultaneous touchpoints 10 Weight (without stand) 7.13 kg Display viewable area (HxV) 597.88 x 336.31 mm Weight (with stand) 10.3 kg Compliance certificates RoHS Features Wall mountable Yes Other features Power supply type DC Panel type TFT Number of simultaneous touchpoints 10 Weight (without stand) 7.13 kg Display viewable area (HxV) 597.88 x 336.31 mm Width (with stand) 647.6 mm Viewable size, vertical 33.6 cm Viewable size, horizontal 59.8 cm Power consumption (max) 22.4 W Mean time between failures (MTBF) 50000 h LED indicators Power Height (with stand) 450.9 mm Display technology LCD Depth (with stand) 233 mm Built-in camera No Weight (with stand) 10.3 kg Maximum refresh rate 70 Hz Energy efficiency scale A to G Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
