DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.

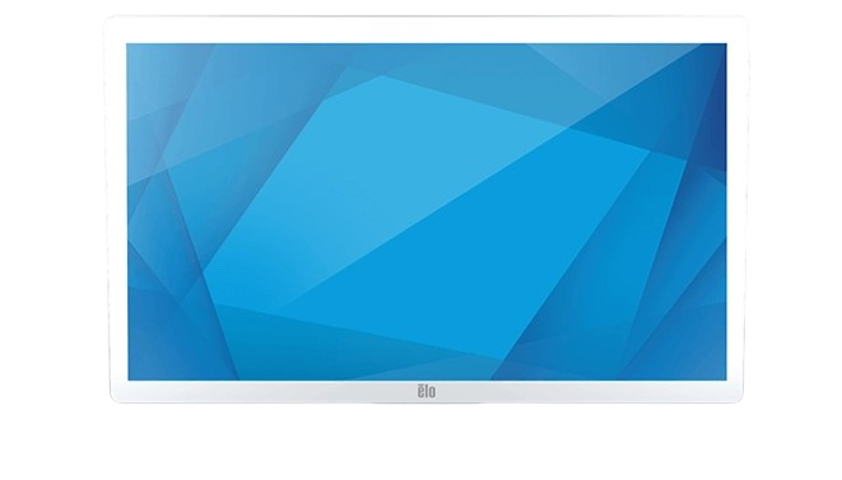

Elo Touch Solutions 2703LM computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD LCD Touchscreen White
SKU: E381844£689.83 ex VAT
£827.79 inc VAT
Out of stockPorts & interfaces USB 2.0 ports quantity 1 USB version 2.0 DC-in jack Yes VGA (D-Sub) ports quantity 1 HDMI ports quantity 1 Headphone connectivity 3.5 mm HDMI Yes Audio Built-in speaker(s) Yes RMS rated power 2 W Performance Built-in speaker(s) Yes RMS rated power 2 W Mean time between failures (MTBF) 50000 h Built-in camera No Display Screen shape Flat Display number of colours 16.7 million colours Native aspect ratio 16:9 Maximum refresh rate 70 Hz HD type Full HD Display technology LCD Viewing angle, horizontal 178° Viewing angle, vertical 178° Horizontal scan range 30 - 82 kHz Vertical scan range 50 - 75 Hz Viewable size, horizontal 59.8 cm Viewable size, vertical 33.6 cm Supported graphics resolutions 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Display resolution 1920 x 1080 pixels Response time 14 ms Display diagonal 68.6 cm (27") Contrast ratio (typical) 1000:1 Touchscreen Yes Number of simultaneous touchpoints 10 Panel type TFT Display diagonal (metric) 68.6 cm Touchscreen technology Projected capacitive system Display brightness 300 cd/m² Anti-glare screen Yes Management features On Screen Display (OSD) Yes Number of OSD languages 10 On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Multimedia Built-in speaker(s) Yes RMS rated power 2 W Built-in camera No Design Market positioning Medical Certification UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1) Product colour White International Protection (IP) code IP54 Mean time between failures (MTBF) 50000 h Camera Built-in camera No Technical details Height (without stand) 647.6 mm Depth (without stand) 44.9 mm Width (without stand) 394.1 mm Power consumption (sleep) 1.006 W USB connector type Micro-USB, USB Type-A, USB Type-B Placement supported Indoor Mean time between failures (MTBF) 50000 h HDMI Yes Display viewable area (HxV) 597.88 x 336.31 mm Product colour White Sustainability compliance Yes Box contents Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet 4 x VESA Screws (only for E381654 and E381844) 4 x rubbers (only for E381654 and E381844, affix to VESA holes) 2 x Cable cover screws Compliance certificates BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL Active display area (W x H) 597.88 x 336.31 mm USB 2.0 ports quantity 1 Touchscreen Yes Number of simultaneous touchpoints 10 Ergonomics Wall mountable Yes VESA mounting Yes LED indicators Power On Screen Display (OSD) Yes Number of OSD languages 10 On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Power AC input voltage 100 - 240 V AC input frequency 50 / 60 Hz Power consumption (max) 22.41 W Power consumption (standby) 1 W Power consumption (typical) 17.37 W Power consumption (off) 0.24 W Energy efficiency scale A to G Energy efficiency class (SDR) E Energy consumption (SDR) per 1000 hours 21 kWh European Product Registry for Energy Labelling (EPREL) code 361244 Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 10 - 95% Weight & dimensions Height (without stand) 647.6 mm Depth (without stand) 44.9 mm Width (without stand) 394.1 mm Weight (without stand) 7.13 kg Package width 520 mm Package depth 187 mm Package height 770 mm Package weight 10.4 kg Packaging data Package width 520 mm Package depth 187 mm Package height 770 mm Package weight 10.4 kg Cables included HDMI, USB, VGA Packaging content Cables included HDMI, USB, VGA Sustainability European Product Registry for Energy Labelling (EPREL) code 361244 Sustainability compliance Yes Indication LED indicators Power Other features Active display area (W x H) 597.88 x 336.31 mm USB 2.0 ports quantity 1 USB ports quantity 6 Power consumption (sleep) 1.006 W USB connector type Micro-USB, USB Type-A, USB Type-B Placement supported Indoor Mean time between failures (MTBF) 50000 h Display viewable area (HxV) 597.88 x 336.31 mm Certification UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1) International Protection (IP) code IP54 Compliance certificates BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL Height (without stand) 647.6 mm Depth (without stand) 44.9 mm Width (without stand) 394.1 mm Power consumption (max) 22.41 W HDMI Yes Energy efficiency scale A to G Touchscreen Yes Number of simultaneous touchpoints 10 Certificates Certification UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
