Elo 2794L Open Frame Touchscreen Display
The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass. Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.

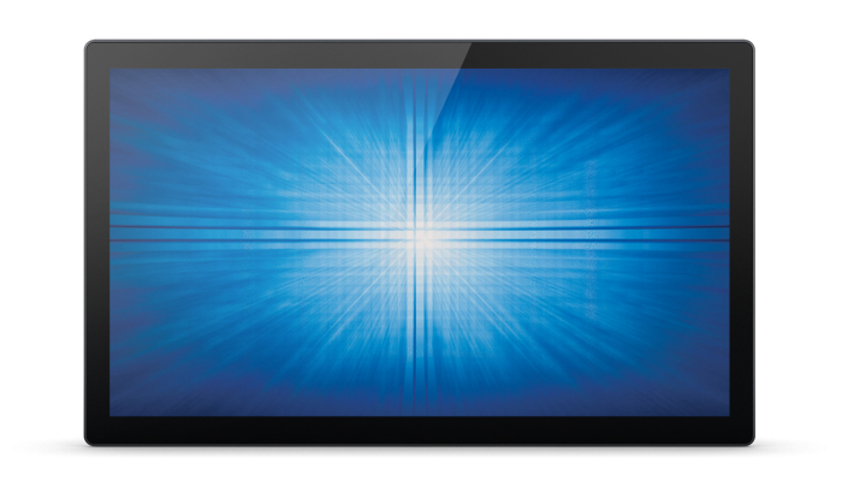

Elo Touch Solutions 2794L 68.6 cm (27") LCD 270 cd/m² Full HD Black Touchscreen
SKU: E493591£495.84 ex VAT
£595.00 inc VAT
In stockDisplay LED backlight Yes Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LCD Display diagonal 68.6 cm (27") Display resolution 1920 x 1080 pixels Display brightness 270 cd/m² HD type Full HD Response time 12 ms Contrast ratio (typical) 3000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Native aspect ratio 16:9 Maximum refresh rate 65 Hz Touchscreen technology Projected capacitive system Ports & interfaces DisplayPort version 1.1a HDMI version 1.3a DisplayPorts quantity 1 HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Design Product colour Black VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese On Screen Display (OSD) Yes Power Power consumption (max) 27 W Power consumption (off) 0.5 W Power consumption (typical) 21 W Energy efficiency scale A to G Energy efficiency class (SDR) G Energy consumption (SDR) per 1000 hours 30 kWh Packaging data Package width 782 mm Package depth 200 mm Package height 530 mm Package weight 10.2 kg Cables included HDMI, USB, VGA Packaging content Cables included HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Panel type TFT DisplayPort version 1.1a Connection to PC Yes Depth (without stand) 388.4 mm Number of simultaneous touchpoints 10 Weight (without stand) 7.3 kg Height (without stand) 40.6 mm Display viewable area (HxV) 597.6 x 336.15 mm Compliance certificates RoHS Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type DC Panel type TFT DisplayPort version 1.1a Connection to PC Yes Depth (without stand) 388.4 mm Number of simultaneous touchpoints 10 Weight (without stand) 7.3 kg Height (without stand) 40.6 mm Display viewable area (HxV) 597.6 x 336.15 mm Viewable size, vertical 33.6 cm Viewable size, horizontal 59.8 cm Power consumption (max) 27 W Mean time between failures (MTBF) 50000 h Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Built-in camera No Backlight type LED Maximum refresh rate 65 Hz Energy efficiency scale A to G Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
