The perfect touchscreen for any enclosure.
Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

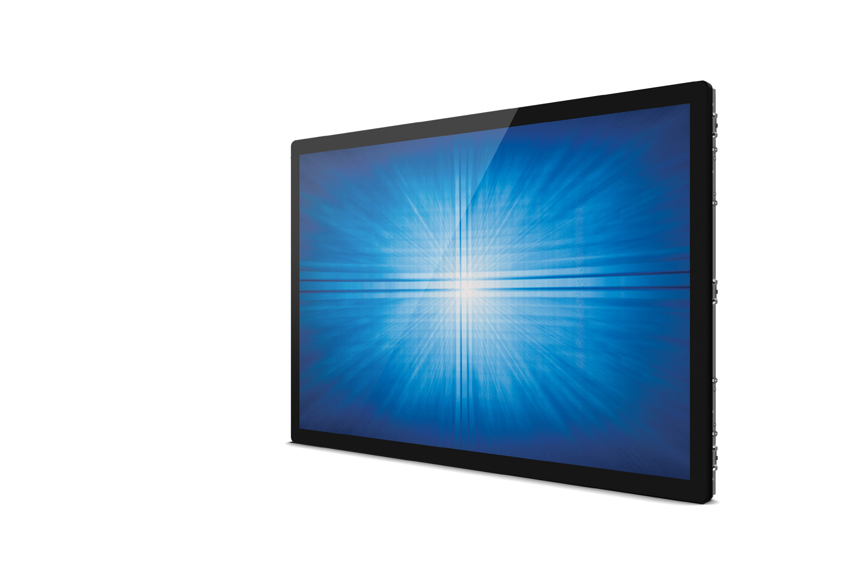

Elo Touch Solutions 3263L 80 cm (31.5") LED 500 cd/m² Full HD Black Touchscreen
SKU: E343671£636.41 ex VAT
£763.70 inc VAT
In stockDisplay Panel type TFT Display number of colours 16.78 million colours Number of simultaneous touchpoints 40 Touchscreen Yes Display technology LED Display diagonal 80 cm (31.5") Display resolution 1920 x 1080 pixels Display brightness 500 cd/m² HD type Full HD Response time 8 ms Contrast ratio (typical) 3000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Native aspect ratio 16:9 Anti-glare screen Yes Maximum refresh rate 60 Hz Touchscreen technology Projected capacitive system Ports & interfaces HDMI version 1.4 HDMI ports quantity 2 Ethernet LAN (RJ-45) ports 1 Design Product colour Black Panel mounting interface 400 x 200 mm VESA mounting Yes Anti-glare screen Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) Yes HDCP Yes Power Power consumption (off) 0.2 W Power consumption (typical) 44.3 W Power consumption (standby) 0.61 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Energy efficiency scale A to G Energy efficiency class (SDR) E Energy consumption (SDR) per 1000 hours 26 kWh Packaging data Package width 1000 mm Package depth 306 mm Package height 680 mm Package weight 17 kg Cables included AC, HDMI, USB, VGA Packaging content Cables included AC, HDMI, USB, VGA Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Technical details VESA mounting Yes Panel type TFT Depth (without stand) 55 mm Number of simultaneous touchpoints 40 Weight (without stand) 11 kg Height (without stand) 452.7 mm Features Wall mountable Yes Other features Panel type TFT Depth (without stand) 55 mm Number of simultaneous touchpoints 40 Weight (without stand) 11 kg Height (without stand) 452.7 mm Viewable size, vertical 39.3 cm Viewable size, horizontal 69.8 cm Mean time between failures (MTBF) 50000 h Display technology LED Digital vertical frequency 47 - 63 Hz Digital horizontal frequency 31.5 - 80 kHz Built-in microphone No Built-in camera No Maximum refresh rate 60 Hz Energy efficiency scale A to G Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
