  • Elo Touch Solutions 6553L Interactive flat panel 163.8 cm (64.5") LED 450 cd/m² 4K Ultra HD Black Touchscreen 24/7

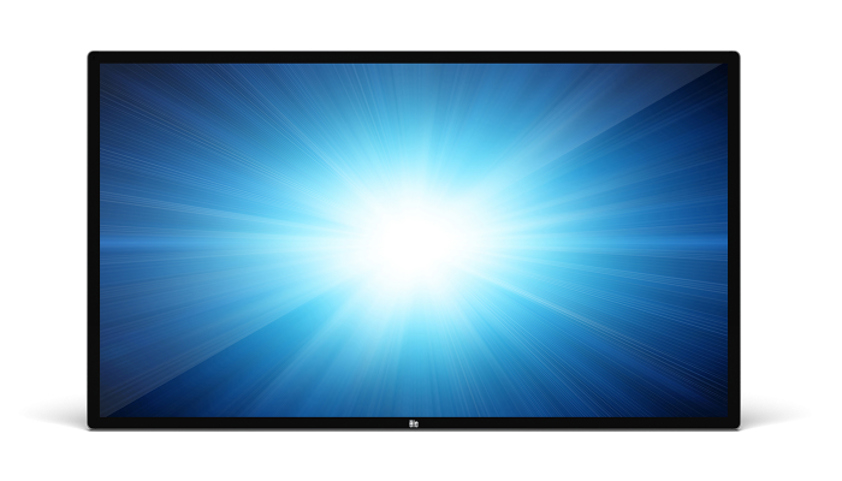

Elo Touch Solutions 6553L Interactive flat panel 163.8 cm (64.5") LED 450 cd/m² 4K Ultra HD Black Touchscreen 24/7

SKU: E215638
£1,901.07 ex VAT
£2,281.28 inc VAT
Product low stockLow stock
  • Elo's 65-inch 4K touchscreen display makes it easy to add interactivity to any environment. Perfect for everything from endless aisle and brand experiences to collaborative meetings, conferencing and whiteboarding, the 6553L offers a sleek, slim design built to withstand the rigors of continuous commercial use. And, the added flexibility of integrating an optional computer module turns the display into a powerful 65-inch all-in-one life-size tablet. Available with either PCAP or Infrared touch technologies, the professional-grade large format display was designed to help you create engaging experiences.

    Interactive Signage or Collaboration, You Choose.
    Whether you are looking for an Interactive Digital Signage solution for a department store, Restaurant or Corporate
    environment, Elo's 6553L offers the flexibility a variety of applications. Learn more below by exploring how the
    6553L can support both signage and collaboration installations.

    Collaboration for all Environments
    Not only do high traffic environments demand interaction, but meeting and huddle rooms do as well. They introduce heightened collaboration capabilities between the presenter and their audience, helping to drive concepts and innovation beyond what a whiteboard and dry erase marker once did.

    Emerge Yourself Into Interactive Experiences
    Elo's IDS product line offers versatility across environments. From retail and entertainment to healthcare and corporate offices, the 6553L is an excellent choice to meet the demands of continuous public use.

    Interactive Digital Signage In Retail The Elo touchscreen is highly reactive and beautiful. There's a 'wow' moment when customers get to see and explore the possibility of their dream closet on a large interactive display.

    Elo Edge Connect™ Lets You do More!
    Expand your touchscreens potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other accessories. With the Elo Edge Connect system, accessories attach flush to the edge of the touchscreen/display for a clean design and extended functionality. On the 6553L touchscreen monitor, you can easily add any combination of up to four Edge Connect products - configuration is up to you and easily changed at any time.

    Add Windows Computing
    Power with Ease
    The Elo Computer Modules (ECMs) for Windows can help enable customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch. The commercial grade computer modules transform Elo's touchscreens into powerful touchcomputer platforms with compatibility to most content management servers. Running Intel® Core™ 7th Generation CPUs and enhanced graphics engine, the ECMG4's make field installation and maintenance easy with no external cables required.

    Start Managing Your
    Devices Smarter
    The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

    Elo On-Site Exchange -
    We Have Your Back.
    Retailers, restaurants and business operators do not have the time or resources to deal with technology outages or finding the right person to call when an issue arises. As part of the three-year standard warranty for large format IDS, Elo offers complimentary On-Site Exchange to cover you in the unfortunate event your device has a hardware issue. All you do is submit an RMA through Elo's online portal. If the issue can't be resolved over the phone, Elo will send a replacement unit and dispatch a technician to replace the device on-site within three business days. Additionally, Elo offers rapid response times for Large Format IDS at an additional cost.

  • Display
    Display number of colours1.073 billion colours
    Number of simultaneous touchpoints20
    TouchscreenYes
    Active display area (W x H)1428.48 x 803.52 mm
    Display technologyLED
    Display diagonal163.8 cm (64.5")
    Display resolution3840 x 2160 pixels
    Display brightness450 cd/m²
    HD type4K Ultra HD
    Response time8 ms
    Contrast ratio (typical)1100:1
    Viewing angle, horizontal178°
    Viewing angle, vertical178°
    Vertical scan range47 - 63 Hz
    Native aspect ratio16:9
    Horizontal scan range121.8 - 140 kHz
    Maximum refresh rate60 Hz
    Multi-touchYes
    Ports & interfaces
    USB portYes
    Wi-FiNo
    PC Audio inYes
    DisplayPorts quantity1
    Ethernet LANYes
    HDMI ports quantity3
    Ethernet LAN (RJ-45) ports2
    USB version3.2 Gen 1 (3.1 Gen 1)
    USB ports quantity2
    Audio
    Number of built-in speakers2
    RMS rated power20 W
    Built-in speaker(s)Yes
    Design
    Product designInteractive flat panel
    Placement supportedIndoor
    Product colourBlack
    Panel mounting interface400 x 400,400 x 600 mm
    CertificationUL, FCC A, cUL, IC, CE A, RCM, VCCI, CCC
    VESA mountingYes
    Performance
    PurposeUniversal
    Operating hours (hours/days)24/7
    HDCPYes
    Wi-FiNo
    Power
    Power consumption (sleep)2 W
    Power consumption (typical)152 W
    Power consumption (standby)0.7 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Computer system
    Computer systemNo
    Weight & dimensions
    Width1490.6 mm
    Depth90.2 mm
    Height865.5 mm
    Packaging data
    Package width1750 mm
    Package depth280 mm
    Package height1150 mm
    Quick start guideYes
    Cables includedAC, HDMI, USB
    Stylus penYes
    Number of stylus pens2
    Packaging content
    Quick start guideYes
    Cables includedAC, HDMI, USB
    Stylus penYes
    Number of stylus pens2
    Operational conditions
    Operating temperature (T-T)0 - 40 °C
    Operating relative humidity (H-H)20 - 80%
    Storage temperature (T-T)-20 - 60 °C
    Storage relative humidity (H-H)10 - 95%
    Certificates
    CertificationUL, FCC A, cUL, IC, CE A, RCM, VCCI, CCC
    Technical details
    VESA mountingYes
    Number of simultaneous touchpoints20
    Sustainability certificatesENERGY STAR
    Logistics data
    Harmonized System (HS) code85285210
    Features
    Harmonized System (HS) code85285210
    Other features
    Number of simultaneous touchpoints20
    Wi-FiNo
    Display technologyLED
    Quick start guideYes
    Maximum refresh rate60 Hz
    Stylus penYes
    Number of stylus pens2
