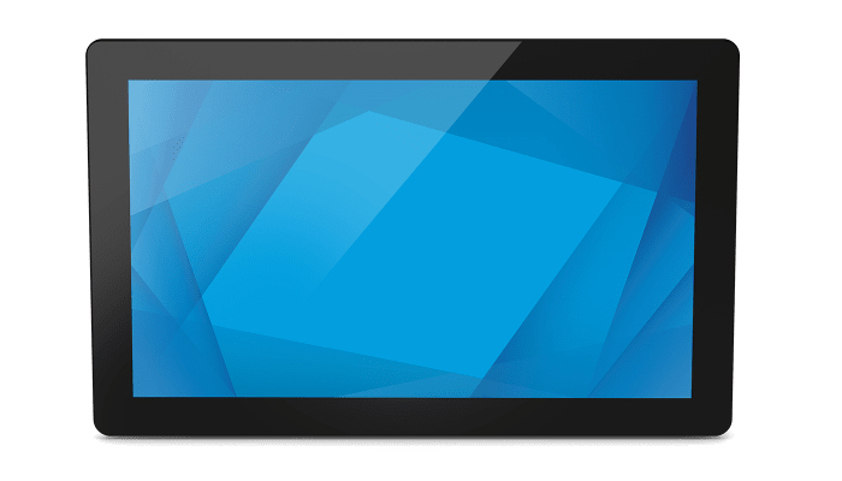

Elo 1594L Open Frame Touchscreen Display
The Elo 1594L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru GlassEnabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
Elo Touch Solutions E131375 POS monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD TFT-LCD Touchscreen
SKU: E131375£344.91 ex VAT
£413.90 inc VAT
In stockDisplay Display diagonal 39.6 cm (15.6") Display resolution 1920 x 1080 pixels Display type TFT-LCD HD type Full HD Display brightness 315 cd/m² Viewing angle, vertical 178° Viewing angle, horizontal 178° Touchscreen type Capacitive Touchscreen Yes Response time 25 ms Number of colours 16.78 million colours Native refresh rate 60 Hz Native aspect ratio 16:9 LED backlight Yes Effective viewing area 344.16 x 193.59 mm Contrast ratio (typical) 800:1 Features Product colour Black Mean time between failures (MTBF) 50000 h Ports & interfaces Interface USB 2.0 Power Power source type DC Power 13.23 W AC adapter output voltage 12 V Weight & dimensions Width 394.7 mm Weight 3.02 kg Height 242 mm Depth 43.4 mm Packaging data Package width 470 mm Package weight 4.62 kg Package height 331 mm Package depth 175 mm Operational conditions Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
