DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.

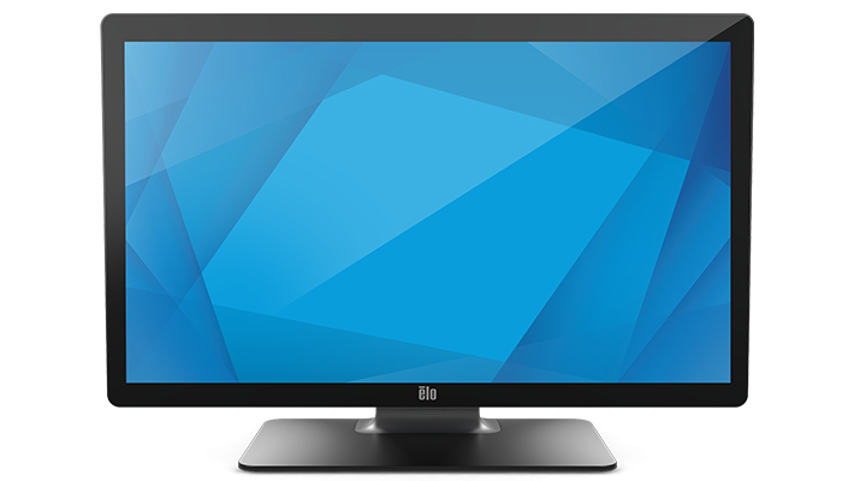

Elo Touch Solutions E659596 Signage Display 68.6 cm (27") LED 270 cd/m² Full HD Black Touchscreen
SKU: E659596£727.35 ex VAT
£872.82 inc VAT
Out of stockDisplay Display number of colours 16.78 million colours Number of simultaneous touchpoints 10 Touchscreen Yes Display technology LED Display diagonal 68.6 cm (27") Display resolution 1920 x 1080 pixels Display brightness 270 cd/m² HD type Full HD Response time 14 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Display diagonal (metric) 69 cm Vertical scan range 50 - 75 Hz Supported graphics resolutions 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) Native aspect ratio 16:9 Horizontal scan range 30 - 82 kHz Anti-glare screen Yes Maximum refresh rate 60 Hz Touchscreen technology Projected capacitive system Audio RMS rated power 2 W Built-in speaker(s) Yes Design Product colour Black VESA mounting Yes Anti-glare screen Yes Screen shape Flat Performance International Protection (IP) code IP54 Mean time between failures (MTBF) 50000 h Power Power consumption (off) 0.24 W Power consumption (typical) 22.41 W Power consumption (standby) 1.006 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Energy efficiency class (SDR) E Energy consumption (SDR) per 1000 hours 21 kWh Weight & dimensions Width (with stand) 450.9 mm Height (with stand) 233 mm Depth (with stand) 647.6 mm Weight (with stand) 10.3 kg Packaging data Package width 560 mm Package depth 764 mm Package height 322 mm Package weight 14.3 kg Operational conditions Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type AC/DC Number of simultaneous touchpoints 10 Weight (without stand) 7.13 kg Display viewable area (HxV) 597.88 x 336.31 mm Weight (with stand) 10.3 kg Other features Power supply type AC/DC Number of simultaneous touchpoints 10 Weight (without stand) 7.13 kg Display viewable area (HxV) 597.88 x 336.31 mm Width (with stand) 450.9 mm Mean time between failures (MTBF) 50000 h Height (with stand) 233 mm Display technology LED Depth (with stand) 647.6 mm Weight (with stand) 10.3 kg Maximum refresh rate 60 Hz Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
