We are pleased to announce the new family of Elo Computer Modules (ECM) featuring the Intel® Core™ 7th Generation CPUs and enhanced graphics engine. Offered with Intel i5 processors for Microsoft Windows® 10 or no operating system, the ECMs can help enable customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch. The commercial grade computer modules transform Elo's 6553L into a powerful platform with compatibility to most content management servers.
Smaller Form Factor
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption computer module that's easier to install and maintain.
Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Collaboration Ready
Pair the flexibility of Elo’s 6553L Interactive Board with a seamless, bring-your-own-device, content sharing software to offer employees and corporations countless business benefits. Elo’s ECMG4 comes conferencing ready with the DisplayNote Montage Software included. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.

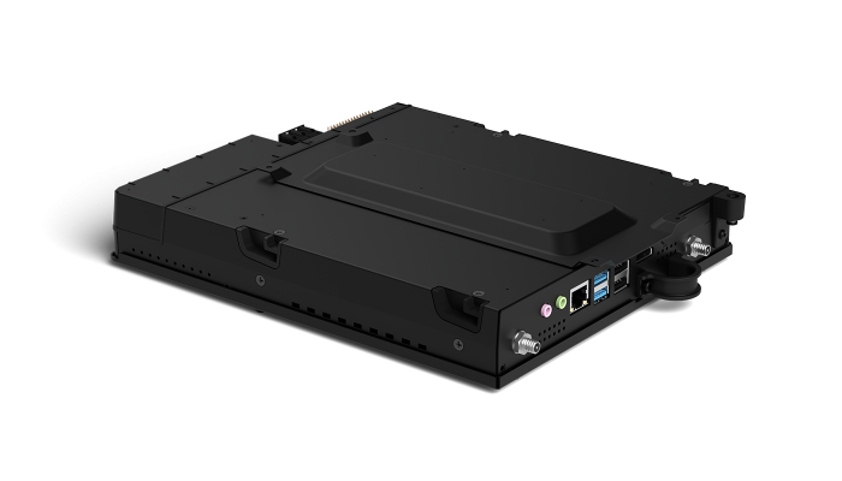

Elo Touch Solutions ECMG4 2.7 GHz Intel® Core™ i5 256 GB SSD 8 GB
SKU: E725044£222.50 ex VAT
£267.01 inc VAT
In stockProcessor Processor generation 7th gen Intel® Core™ i5 Processor frequency 2.7 GHz Processor family Intel Core i5 Processor model i5-7500T Processor cores 4 Processor boost frequency 3.3 GHz Processor cache 6 MB Processor cache type Smart Cache System bus rate 8 GT/s Processor threads 4 Bus type DMI3 Configurable TDP-down frequency 1.7 GHz Conflict-Free processor Yes Memory Internal memory 8 GB Internal memory type DDR4-SDRAM Maximum internal memory 64 GB Memory layout (slots x size) 1 x 8 GB Memory slots 2x SO-DIMM Memory clock speed 2400 MHz Storage Total storage capacity 256 GB Card reader integrated No Storage media SSD Number of storage drives installed 1 SSD capacity 256 GB Graphics On-board graphics adapter Yes Discrete graphics adapter No On-board graphics adapter model Intel® HD Graphics 630 Network Wi-Fi Yes Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) Bluetooth Yes Bluetooth version 5.0 Ethernet LAN Yes Ports & interfaces USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Line-out Yes Microphone in Yes Performance Motherboard chipset Intel® H110 Product colour Black BIOS type AMI Number of antenna connectors 2 Software Operating system installed Windows 10 Processor special features Enhanced Intel SpeedStep Technology Yes Execute Disable Bit Yes Idle States Yes Intel Trusted Execution Technology Yes Intel Enhanced Halt State Yes Intel VT-x with Extended Page Tables (EPT) Yes Embedded options available Yes Intel TSX-NI Yes Intel 64 Yes Intel Stable Image Platform Program (SIPP) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel Clear Video Technology Yes Intel Software Guard Extensions (Intel SGX) Yes Intel Identity Protection Technology version 1.00 Intel Secure Key Technology version 1.00 Intel Virtualization Technology (VT-x) Yes Intel TSX-NI version 1.00 Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -30 - 60 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 10 - 90% Certificates Certification UL/cUL, CB, FCC, CE, AS, NZS, VCCI Weight & dimensions Width 281.1 mm Depth 43 mm Height 208.2 mm Weight 2.1 kg Package width 730 mm Package depth 350 mm Package height 520 mm Package weight 3.3 kg Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
