EloPOS™ System Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.
Add a Customer-Facing
Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a customer-facing - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare Advance Exchange options - making EloPOS the ideal product for point of sale applications.
Get Peace of Mind With EloCareSM
Your point of sale system is central to your operation, and no one wants to experience difficulty during the checkout process. With EloCare Advance Exchange, in the event you have an issue, all you have to do is call Elo. We will have you up and running as soon as possible by shipping you a replacement unit.*
*This program is available for customers within the United States and Canada.

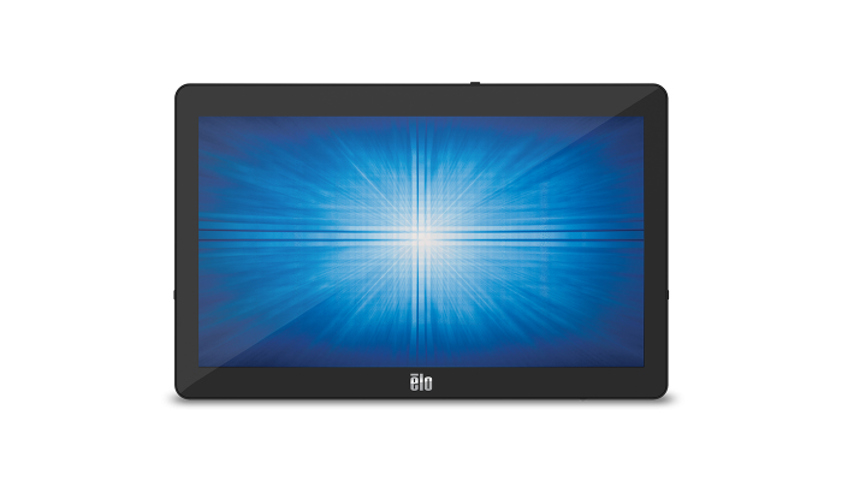

Elo Touch Solutions EloPOS 2.1 GHz i5-8500T 39.6 cm (15.6") 1366 x 768 pixels Touchscreen
SKU: E442365£1,304.78 ex VAT
£1,565.73 inc VAT
Out of stockDisplay Display number of colours 262144 colours Viewing angle, vertical 50° Viewing angle, horizontal 45° Touchscreen technology Projected capacitive system Touchscreen Yes Response time 10 ms Effective viewing area 344.2 x 193.5 mm Display resolution 1366 x 768 pixels Display diagonal 39.6 cm (15.6") Display brightness 220 cd/m² Contrast ratio (typical) 400:1 Aspect ratio 16:9 Display type LCD Processor Processor cores 6 Processor cache 9 MB Processor threads 6 System bus rate 8 GT/s Processor frequency 2.1 GHz Processor family Intel® Core™ i5 Processor model i5-8500T Motherboard chipset Intel Q370 Processor generation 8th gen Intel® Core™ i5 Memory Internal memory type DDR4-SDRAM Number of memory slots 2 Memory slots type SO-DIMM Internal memory 8 GB Memory clock speed 2400 MHz Maximum internal memory 32 GB Storage SSD interface Serial ATA Total storage capacity 128 GB Storage media type SSD SSD capacity 128 GB Storage media SSD SSD form factor M.2 Number of storage drives supported 1 Graphics Graphics card manufacturer Intel Graphics card UHD Graphics 630 Maximum on-board graphics card memory 64 GB Features Certification UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC Harmonized System (HS) code 84715000 Multimedia Built-in speaker(s) Yes Number of speakers 2 Network Ethernet LAN Yes Ethernet LAN data rates 1000 Mbit/s Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Wi-Fi Yes Bluetooth Yes Hard drive Total storage capacity 128 GB Storage media type SSD SSD capacity 128 GB Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 2.0 ports quantity 2 Line-out Yes Ethernet LAN (RJ-45) ports 3 DC-in jack Yes I/O ports Micro USB 2.0, Cash Drawer, USB-C Video Graphics card manufacturer Intel Graphics card UHD Graphics 630 Performance Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0 Software Operating system installed Windows 10 Power AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power supply 180 W Power consumption (typical) 74 W AC adapter output voltage 24 V Operational conditions Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 35 °C Operating relative humidity (H-H) 20 - 80% Certificates Certification UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC Ergonomics VESA mounting Yes Wall mountable Yes Panel mounting interface 75 x 75 mm Mean time between failures (MTBF) 50000 h Audio Built-in speaker(s) Yes Number of speakers 2 Weight & dimensions Width 386.2 mm Depth 73.3 mm Height 248.9 mm Weight 2.9 kg Package width 462 mm Package depth 216 mm Package height 346 mm Package weight 4.9 kg Packaging data Package width 462 mm Package depth 216 mm Package height 346 mm Package weight 4.9 kg Packaging content Cables included AC, LAN (RJ-45), Serial Quick start guide Yes Power adapter included Yes Technical details Wall mountable Yes Panel mounting interface 75 x 75 mm Security Cable lock slot Yes Cable lock slot type Kensington Endurance Mean time between failures (MTBF) 50000 h Logistics data Harmonized System (HS) code 84715000 Other features I/O ports Micro USB 2.0, Cash Drawer, USB-C Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
