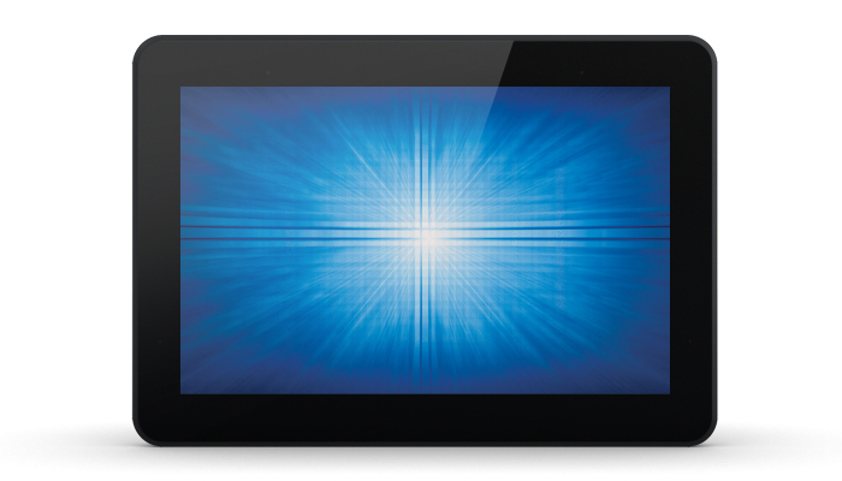

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces
Elo Touch Solutions ET1093L 25.6 cm (10.1") LCD 350 cd/m² Black Touchscreen
SKU: E321195£248.38 ex VAT
£298.06 inc VAT
In stockDisplay Panel type TFT Display number of colours 262144 colours Touchscreen Yes Display technology LCD Display diagonal 25.6 cm (10.1") Display resolution 1280 x 800 pixels Display brightness 350 cd/m² Response time 25 ms Contrast ratio (typical) 800:1 Viewing angle, horizontal 170° Viewing angle, vertical 170° Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 800 Touchscreen technology Projected capacitive system Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 75 mm VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Number of OSD languages 8 Power Power consumption (off) 0.5 W Power consumption (typical) 6.1 W AC input voltage 100-240 V AC input frequency 50 - 60 Hz Packaging data Package width 336 mm Package depth 175 mm Package height 262 mm Package weight 2.6 kg Operational conditions Operating altitude 0 - 3658 m Non-operating altitude 3658 - 12192 m Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type AC/DC Panel type TFT Depth (without stand) 36.9 mm Weight (without stand) 1.2 kg Height (without stand) 178.5 mm Display viewable area (HxV) 216.96 x 135.6 mm Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type AC/DC Panel type TFT Depth (without stand) 36.9 mm Weight (without stand) 1.2 kg Height (without stand) 178.5 mm Display viewable area (HxV) 216.96 x 135.6 mm Power consumption (PowerSave) 0.7 W Operating altitude 0 - 3658 m Non-operating altitude 3658 - 12192 m Mean time between failures (MTBF) 50000 h Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 60 kHz Backlight type LED Aspect ratio 16:10 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
