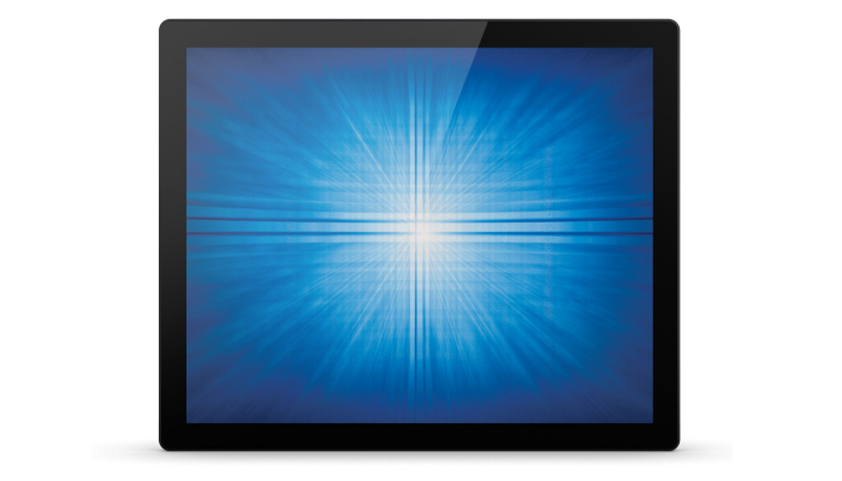

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Elo Touch Solutions Open Frame Touchscreen 48.3 cm (19") LCD 225 cd/m² Black
SKU: E328497£360.72 ex VAT
£432.86 inc VAT
In stockDisplay LED backlight Yes Panel type TFT Display number of colours 16.78 million colours Touchscreen Yes Display technology LCD Display diagonal 48.3 cm (19") Display resolution 1280 x 1024 pixels Display brightness 225 cd/m² Response time 5 ms Contrast ratio (typical) 1000:1 Viewing angle, horizontal 170° Viewing angle, vertical 160° Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA) Touchscreen technology Surface acoustic wave Ports & interfaces DisplayPorts quantity 1 HDMI ports quantity 1 Design Product colour Black Panel mounting interface 75 x 100 mm VESA mounting Yes Screen shape Flat Wall mountable Yes Performance Mean time between failures (MTBF) 50000 h On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese Number of OSD languages 8 Power Power consumption (off) 0.5 W Power consumption (typical) 22 W Power consumption (standby) 1.5 W AC input voltage 230 V AC input frequency 50 Hz Weight & dimensions Width (with stand) 414.7 mm Height (with stand) 50 mm Depth (with stand) 342.7 mm Packaging data Package weight 7 kg Cables included HDMI, LAN (RJ-45), USB, VGA Packaging content Cables included HDMI, LAN (RJ-45), USB, VGA Operational conditions Operating altitude 0 - 3.048 m Non-operating altitude 0 - 12.192 m Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 95% Technical details VESA mounting Yes Power supply type DC Dimensions (W x D x H) with stand 414.7 x 342.7 x 50 mm Panel type TFT Depth (without stand) 40.7 mm Weight (without stand) 4.6 kg Height (without stand) 348.1 mm Display viewable area (HxV) 376.32 x 301.06 mm Logistics data Harmonized System (HS) code 85285210 Features Harmonized System (HS) code 85285210 Wall mountable Yes Other features Power supply type DC Dimensions (W x D x H) with stand 414.7 x 342.7 x 50 mm Panel type TFT Depth (without stand) 40.7 mm Weight (without stand) 4.6 kg Height (without stand) 348.1 mm Display viewable area (HxV) 376.32 x 301.06 mm Width (with stand) 414.7 mm Operating altitude 0 - 3.048 m Non-operating altitude 0 - 12.192 m Mean time between failures (MTBF) 50000 h Height (with stand) 50 mm Display technology LCD Digital vertical frequency 50 - 75 Hz Digital horizontal frequency 30 - 82 kHz Depth (with stand) 342.7 mm Built-in camera No Backlight type LED Aspect ratio 5:4 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
