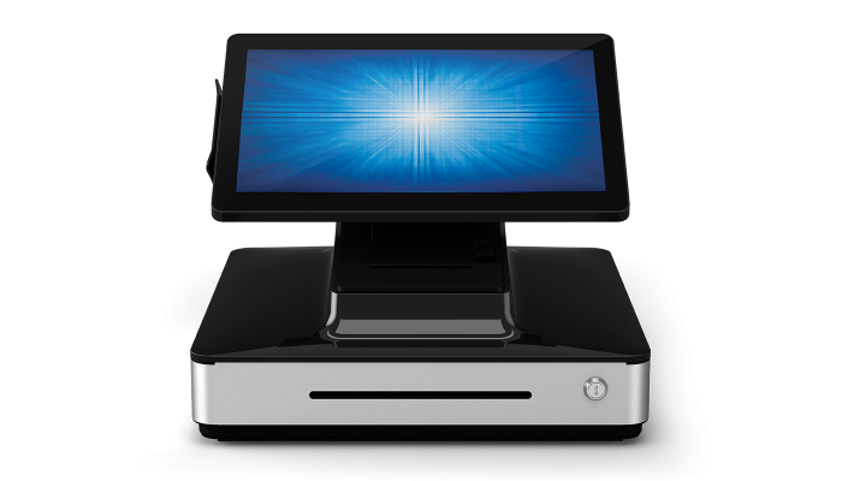

Pay Point PayPoint® Plus for Windows
PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel® Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Large Display
Large Display PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.
Rotating Display Head
Rotating Display Head Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
Printer
The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.
Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example–EasyDL™ enables users to read government-issued identification cards in US and Canada.
Cash Drawer
The full size industry–standard cash drawer with 3-position lock offers two layouts–five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.
MSR
The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.
3-inch Printer
PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software – making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first — this printer has been tested to MCBF of 60 million lines.
Barcode Scanner
2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell’s EZConfig Cloud for Scanning - simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL™ to scan and parse data from drivers licenses in the United States and Canada.
Full Size Cash Drawer
The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.
Magnetic Stripe Reader
PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe
Reader (MSR) built by MagTek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.
Connectivity for 3rd Party Peripherals
PayPoint Plus has additional input/output ports including serial, USB and mini-HDMI to support 3rd party peripherals. From scales or a secondary display to NFC and EMV devices – PayPoint Plus offers many options. You can even add a second cash drawer if needed.
Operate The Way You Need
The Elo PayPoint Plus for Windows utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, PayPoint Plus for Windows offers models with no OS - all pretested with Linux SuSE and Ubuntu operating systems, allowing businesses to get the solution best-suited for them.
Connectivity
PayPoint Plus for Windows offers Wi-Fi 802.11 b/g/n/ac providing support for both 2.4Ghz and 5Ghz bands. In addition, BLE 5.0 enables connectivity to third party devices.
Add Your Software
With PayPoint Plus, our goal is to offer a simple and elegant solution that’s easy to integrate, install and support regardless of the OS you are using. To ease integration with your POS application, we provide Windows and Linux drivers to allow you to control and communicate with the onboard peripherals. In addition, we leverage industry-standard tools and utilities such as Star FuturePRNT, Honeywell EZConfig and MagTek Utility to further simplify your PayPoint Plus development and configuration process. And, once your application is certified and ready for deployment, you can utilize the PayPoint Plus peripheral test app to check status of your customer’s device during set-up and support calls.
Get Peace of Mind With EloCare
Your point of sale system is central to your operation, so no one wants to experience difficulty during the checkout process. With EloCare Advance Exchange, in the event you have an issue, all you have to do is call Elo. We will have you up and running as soon as possible by shipping you a replacement unit.*
*This program is available for customers within the United States and Canada. Certain conditions apply. Click here for terms and conditions
Elo Touch Solutions PayPoint Plus All-in-One i5-8500T 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen Black, Grey
SKU: E549280£1,790.24 ex VAT
£2,148.29 inc VAT
Low stockDisplay Viewing angle, vertical 160° Viewing angle, horizontal 160° Touchscreen technology Projected capacitive system Touchscreen Yes Response time 30 ms Effective viewing area 343.91 x 194.05 mm Display resolution 1920 x 1080 pixels Display diagonal 39.6 cm (15.6") Display brightness 300 cd/m² Contrast ratio (typical) 800:1 Aspect ratio 16:9 Display type TFT Processor Processor family Intel® Core™ i5 Processor model i5-8500T Processor generation 8th gen Intel® Core™ i5 Memory Internal memory type DDR4-SDRAM Number of memory slots 2 Memory slots type SO-DIMM Internal memory 8 GB Memory clock speed 2666 MHz Maximum internal memory 32 GB Storage Total storage capacity 128 GB Storage media type SSD SSD capacity 128 GB SSD form factor M.2 Features Certification UL/cUL, FCC/IC, CE, CB, EU RF RED, CCC, SRRC, VCCI, RF Harmonized System (HS) code 84715000 Multimedia Built-in speaker(s) Yes Number of speakers 2 Network Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Wi-Fi standards Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) Wi-Fi Yes Hard drive Total storage capacity 128 GB Storage media type SSD SSD capacity 128 GB Ports & interfaces Powered USB Yes RJ-12 ports quantity 1 USB 2.0 ports quantity 4 Serial ports quantity 2 Ethernet LAN (RJ-45) ports 1 Design Product colour Black, Grey Chassis type All-in-One Performance Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0 Software Operating system installed Windows 10 Power AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 51.86 W Operational conditions Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 35 °C Operating relative humidity (H-H) 20 - 80% Certificates Certification UL/cUL, FCC/IC, CE, CB, EU RF RED, CCC, SRRC, VCCI, RF Ergonomics Product colour Black, Grey Printing Print technology Direct thermal Print speed 250 mm/sec Printing media thickness 53 - 85 µm Maximum roll diameter 8 cm Scanning Optical sensor resolution (W x H) 640 x 480 pixels Scanner type 1D/2D Sensor type CMOS Linear (1D) barcodes supported Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Audio Built-in speaker(s) Yes Number of speakers 2 Weight & dimensions Width 411 mm Depth 323 mm Height 420 mm Weight 10.2 kg Package width 538 mm Package depth 389 mm Package height 518 mm Package weight 13.5 kg Packaging data Package width 538 mm Package depth 389 mm Package height 518 mm Package weight 13.5 kg Packaging content Cables included AC Quick start guide Yes Technical details Product colour Black, Grey Logistics data Harmonized System (HS) code 84715000 Other features Chassis type All-in-One Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
