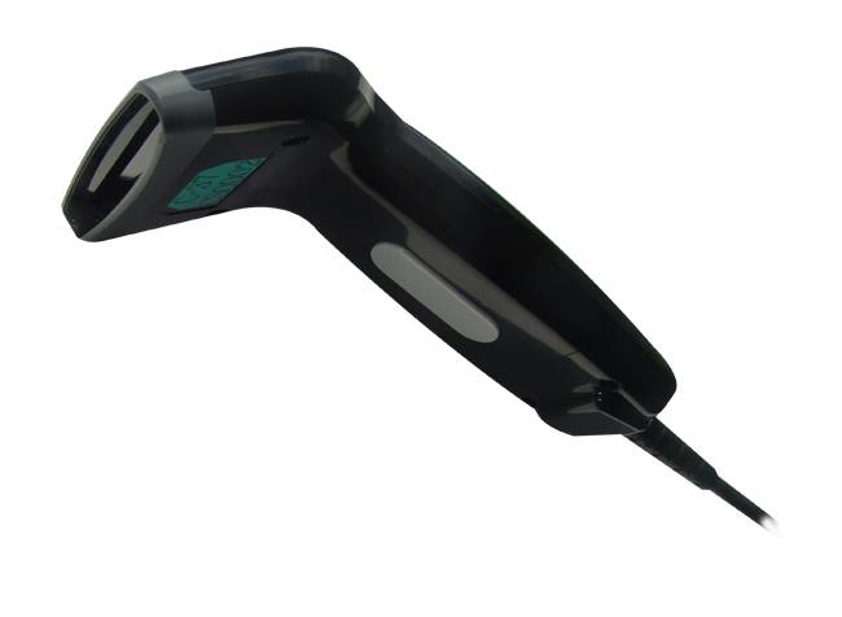

Opticon C37 CCD Black

SKU: 12305
£48.56 ex VAT
£58.28 inc VAT
Product out of stockOut of stock
  • The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk.

    This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.

    The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.

  • Scanning
    Yaw reading angle20 - 70°
    Wavelength650 nm
    Tilt reading angle-20 - 20°
    Sensor typeCCD
    Read rate (max)200 reads/s
    Pitch reading angle-35 - 35°
    Decoding standardsJAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey Chinese Post, Korean Postal Authority code
    Ports & interfaces
    BluetoothNo
    Standard interfacesUSB, RS-232
    Performance
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS
    BuzzerYes
    Design
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS
    Power
    Input voltage6 V
    Weight & dimensions
    Weight90 g
    Technical details
    Light sourceLED
    International Protection (IP) codeIP42
    Dimensions (WxDxH)53 x 150 x 75 mm
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS
    BuzzerYes
    Harmonized System (HS) code84716070
    Operational conditions
    Storage temperature (T-T)-20 - 60 °C
    Operating temperature (T-T)0 - 50 °C
    Operating relative humidity (H-H)5 - 95%
    Logistics data
    Harmonized System (HS) code84716070
    Other features
    Light sourceLED
    Dimensions (WxDxH)53 x 150 x 75 mm
