  • Opticon F-70 I type Fixed bar code reader 1D CCD Black

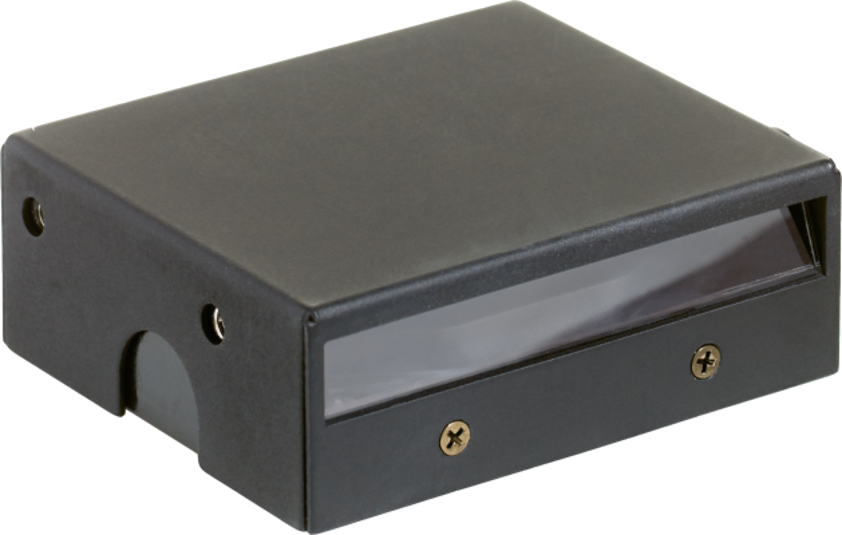

Opticon F-70 I type Fixed bar code reader 1D CCD Black

SKU: 13184
£209.23 ex VAT
£251.08 inc VAT
Product out of stockOut of stock
  • The F-70 is among the smallest CCD scanners with an operating speed of 700 scans per second. It scans 1D barcodes at an extremely fast speed and can easily be integrated into the product of desire. If you are looking for a fast and small stationary scanner look no further. Applications This fixed mount scanner is ideal in situations that require 1D scanning at a high speed. Our existing customers use the F-70 in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and it is frequently used in medical or pharmaceutical analysis machines. It is clear that this scanner is applicable in a wide range of markets. How we describe the F-70 The F-70 is a high speed 1D CCD scanner that is easy to integrate because of its small size. It scans at a whooping speed of 700 scans per second. The rugged sheet metal enclosure protects the optics and electronics from dirt and other environmental hazards. The scanner is available in 2 models, USB or RS-232. This makes it easy to incorporate the scanner into your design. It offers a wide variety of configurable options for easy integration in your business process. Features The F-70 has some unique features that makes it an excellent choice: - 700 scans per second - Metal sheet protection against environmental hazards - Small form - USB HID/VCP or RS-232 - How to buy

  • Scanning
    TypeFixed bar code reader
    Linear (1D) barcodes supportedCode 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, JAN, MSI, Plessey
    2D (matrix & stacked) barcodes supportedNot supported
    Tilt reading angle-30 - 10°
    Sensor typeCCD
    Scanner type1D
    Read rate (max)700 reads/s
    Pitch reading angle-6 - 0°
    Light levels (direct sunlight)5 - 5000 lx
    Ports & interfaces
    Connectivity technologyWired
    Cable length0.6 m
    Standard interfacesUSB, RS-232
    Performance
    Product colourBlack
    CertificationCE, FCC, RoHS, EN60950-1, IEC60950-01, IEC60825-1, EN55022, EN55024
    Light levels (direct sunlight)5 - 5000 lx
    Design
    TypeFixed bar code reader
    Product colourBlack
    CertificationCE, FCC, RoHS, EN60950-1, IEC60950-01, IEC60825-1, EN55022, EN55024
    Power
    Power consumption220 mA
    Input frequency10 - 100 Hz
    Input voltage5 V
    Weight & dimensions
    Width55 mm
    Depth20 mm
    Height47 mm
    Weight110 g
    Technical details
    TypeFixed bar code reader
    Product colourBlack
    CertificationCE, FCC, RoHS, EN60950-1, IEC60950-01, IEC60825-1, EN55022, EN55024
    Harmonized System (HS) code84716070
    Operational conditions
    Storage temperature (T-T)-10 - 60 °C
    Operating temperature (T-T)0 - 40 °C
    Operating relative humidity (H-H)20 - 90%
    Light levels (direct sunlight)5 - 5000 lx
