  • Opticon OPI3301 Handheld bar code reader CMOS Black

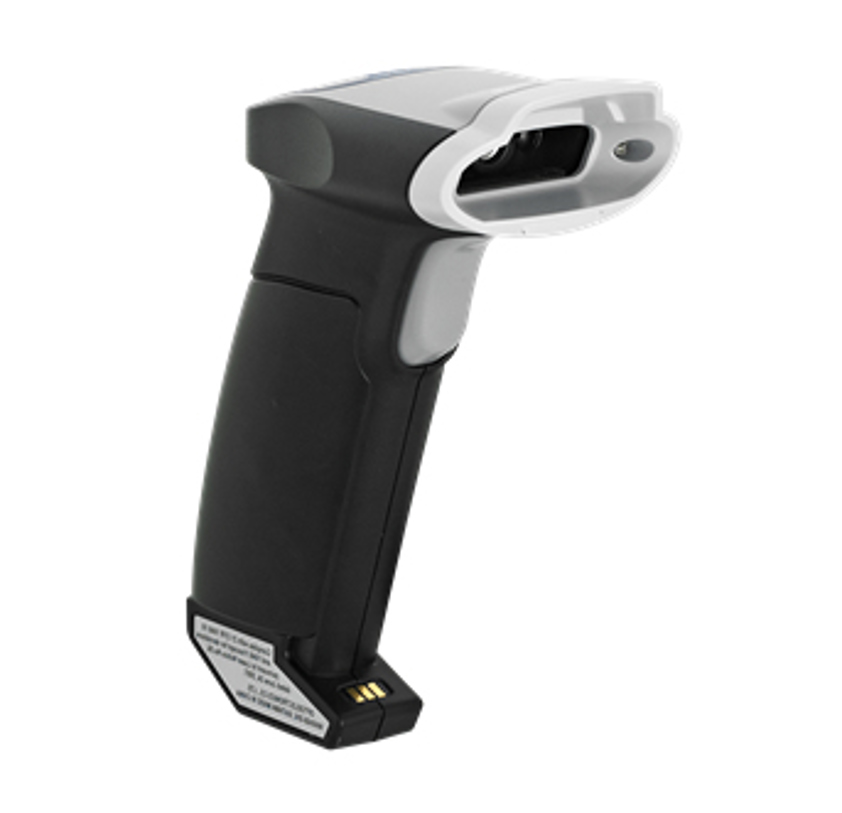

Opticon OPI3301 Handheld bar code reader CMOS Black

SKU: 12920
£229.18 ex VAT
£275.02 inc VAT
Product out of stockOut of stock
  • The OPI3301 is a compact handheld 2D imager using Bluetooth to communicate with other devices. This wireless device is equipped with an aggressive imager providing quick and easy scanning. The lightweight handheld design of the OPI3301 provides an ergonomic fit for all day use, maximizing comfort during operation.

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
    2D (matrix & stacked) barcodes supportedAztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
    Optical sensor resolution460800 pixels
    Tilt reading angle0 - 360°
    Sensor typeCMOS
    Pitch reading angle-50 - 50°
    Ports & interfaces
    Wireless range10 m
    Connectivity technologyWireless
    Bluetooth version2.0+EDR
    Standard interfacesBluetooth
    Performance
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    RAM capacity1 MB
    International Protection (IP) codeIP42
    Internal memory1 MB
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1
    BuzzerYes
    Design
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1
    Power
    Power consumption300 mA
    Power source typeBattery
    Battery life10 h
    Charging time3 h
    Battery voltage3.7 V
    Battery technologyLithium-Ion (Li-Ion)
    Battery capacity1100 mAh
    Weight & dimensions
    Width56 mm
    Depth113 mm
    Height137 mm
    Weight110 g
    Technical details
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    RAM capacity1 MB
    International Protection (IP) codeIP42
    Internal memory1 MB
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1
    BuzzerYes
    Sustainability certificatesRoHS
    Operational conditions
    Storage temperature (T-T)-25 - 60 °C
    Operating temperature (T-T)-20 - 50 °C
    Operating relative humidity (H-H)5 - 85%
