Opticon OPI3601 Handheld bar code reader CMOS Black

SKU: 13086
£139.16 ex VAT
£166.99 inc VAT
Product out of stockOut of stock

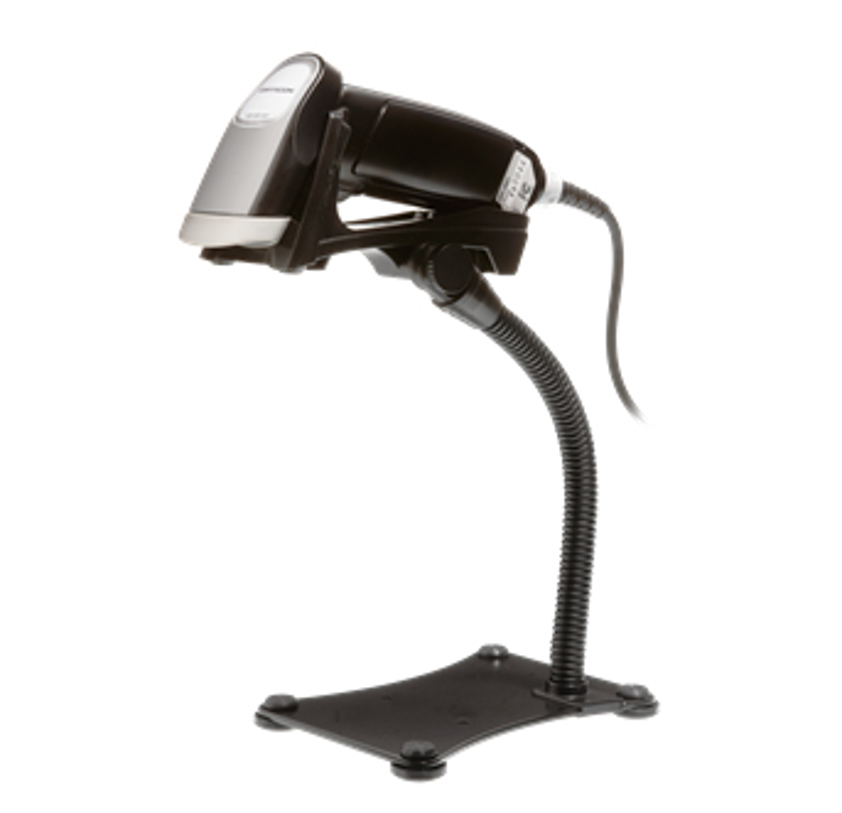

  • The OPI3601 is a pistol style 2D CMOS imager barcode scanner supplied as a complete kit including hands free stand to allow users the option of hands free scanning or in the hand scanning.

    The new superior quality scan engine is capable of reading even the most difficult to read barcodes, either printed or barcodes on mobile phone screens. We have developed the OPI3601 with enhanced motion tolerance allowing for a faster scanning operation and a bright LED aiming function for simple and quick operation.

    To compliment its advanced performance, the OPI3601 is capable of withstanding drops of 1.5 meters to concrete and is supported by a 2 year warranty.

    Typical Applications for the OPI-3601 are:

    - Retail Scanning of GS1 Data Matric codes at POS
    - E-coupon redemption on Mobile phones
    - Health care applications for wrist band scanning and patient management

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
    2D (matrix & stacked) barcodes supportedAztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
    Optical sensor resolution360960 pixels
    Tilt reading angle0 - 360°
    Sensor typeCMOS
    Pitch reading angle-50 - 50°
    Ports & interfaces
    Connectivity technologyWired
    Standard interfacesUSB, RS-232
    Performance
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    BuzzerYes
    Design
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    Power
    Power consumption350 mA
    Power source typeDC
    Input voltage6 V
    Weight & dimensions
    Width56 mm
    Depth108.1 mm
    Height148.6 mm
    Weight85 g
    Technical details
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP42
    Product colourBlack
    CertificationCE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    BuzzerYes
    Sustainability certificatesRoHS
    Operational conditions
    Storage temperature (T-T)-20 - 60 °C
    Operating temperature (T-T)-20 - 50 °C
    Operating relative humidity (H-H)5 - 90%
